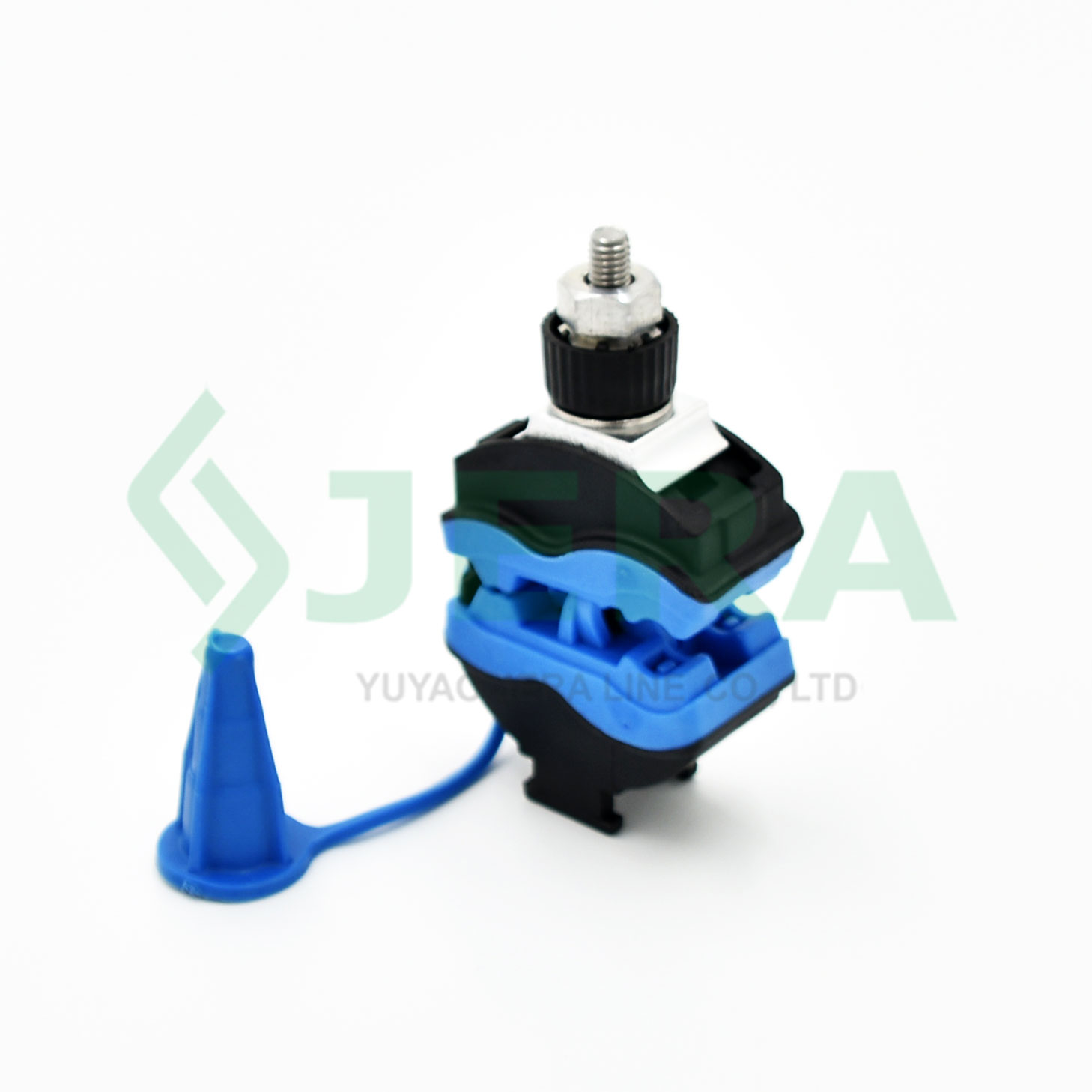

Electrical cable LV insulation piercing connector is developed to use in electrical distribution and power transmission systems, to connect and distribute the outdoor power cable network deployment up 1KV.
It provides a reliable connection between the main conductor and a branch conductor without the need to strip the insulation from the wires.
Technical specification
Product code
Cable size, mm2
Torque, N*m
ZOP-55
Main
Tap
11
16-150
4-50
Components and materials
Aerial Power Line insulation Piercing Connector ZOP-55, is manufacturered and Research and Design RnD by Jera Line, a direct factory location in China who can provide Initial product guarantee,the IPC consissts of the following main part:
Components
Materials
Body and Seal
Heat and UV resistance two components insert molding of composite polymer and
elastomer
Contact plate
Tin coated Aluminum
Bolt
stainless steel
Nut with shear-head
Aluminum alloy
Washer
Stainless steel
End cap
UV resistance Polypropylene
Dimensions
Test

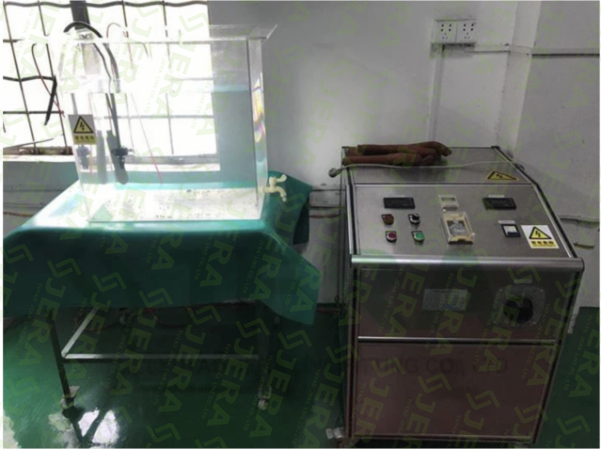

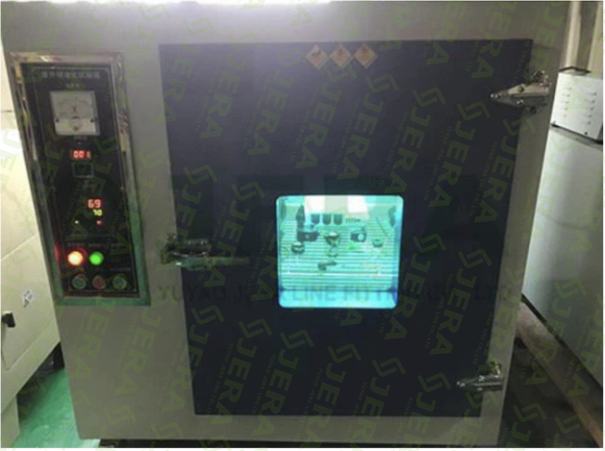

ABC Cable Insulation Piercing Connector ZOP-55 complied to EN-50483-4:2009 international standard, Jera Line has factory laboratory that do routine test, such as:
