The 201 Stainless Steel Band with a 1/2 width .other calls Cinta de acero inoxidable'
is a durable material commonly used in the power and energy industry,Securely bundle and
organize cables, wires, and hoses.Attach fittings and accessories to utility poles.Use
it for quick fixes and reinforcement.
Application
Secure accessories and boxes on poles using this Strapping Band. Its high
mechanical strength ensures stability.
Technical specification
Material grade, SUS
Width
Thickness
Length for roll, m
Colour of dispenser
201
1/2” (12.7mm)
0.020" (0.5mm)
30, or 50
Red,Blue
Components and materials

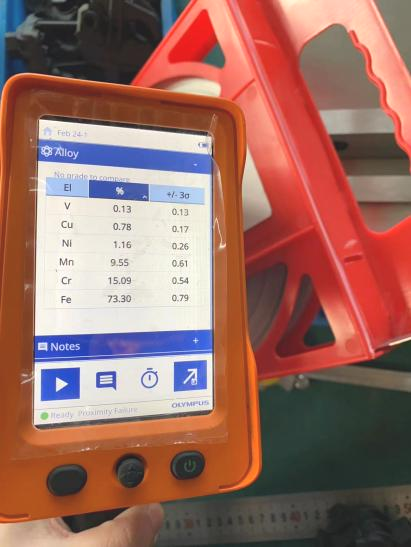

Test scope: Scan the steel band.
Testing equipment: Metal Spectrometer XRF
VATANA.

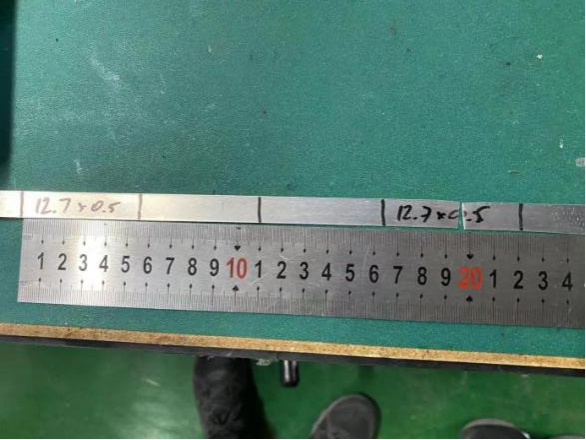

Dimensions
Test
Tensile strength and elongation test according to
IEC 61284-1997
Machine: Testing machine ZD-5
Test scope: Cut a proper length
stainless
steel band, clamp each side on tensile strength test equipment, apply tension
load gradually until band break to see the actual breaking load.
Product name
Required tension force, KN
Actual data, KN
Conclusion
Stainless Steel Strap 12.7x0,5mm
3.5
4.7
Passed
Required Elogation
Actual data, KN
Conclusion
10-20%
13%
Passed

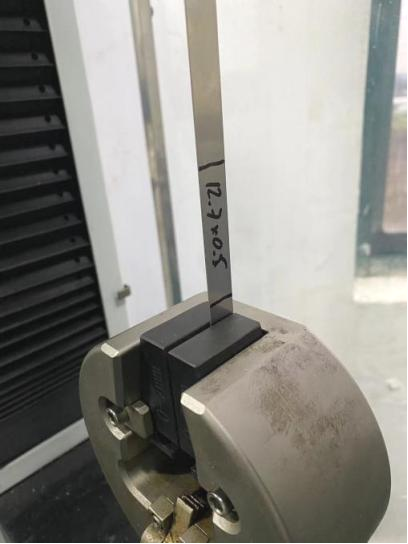

Sample before test:

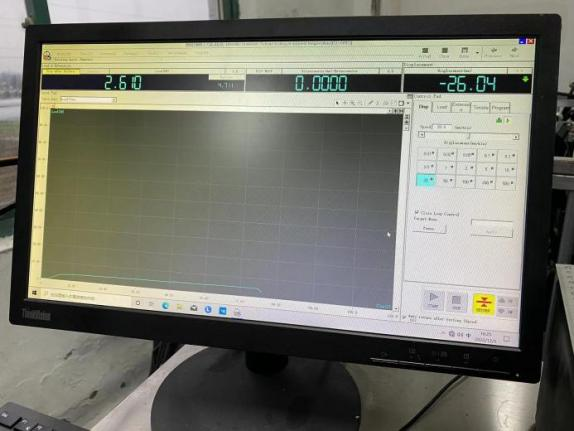

Test result:
