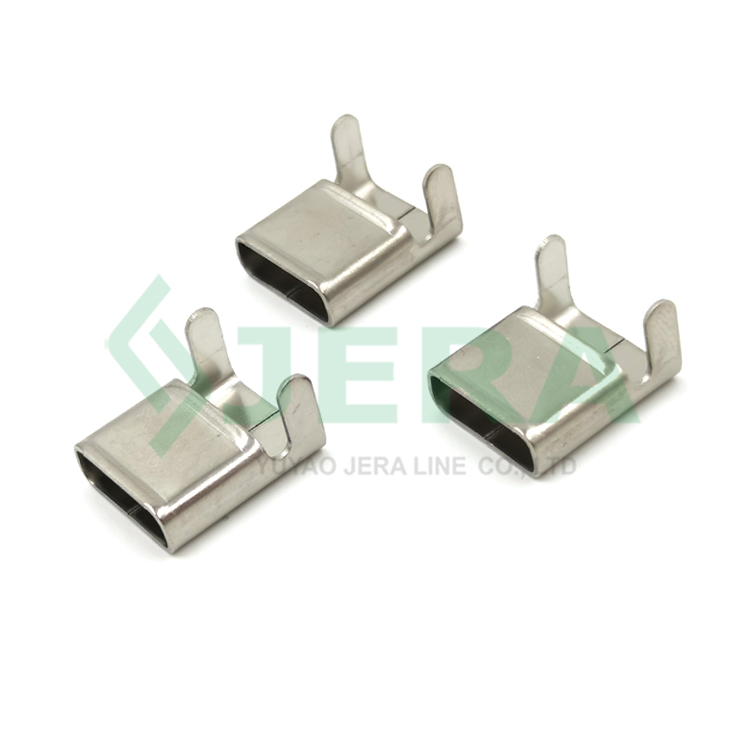

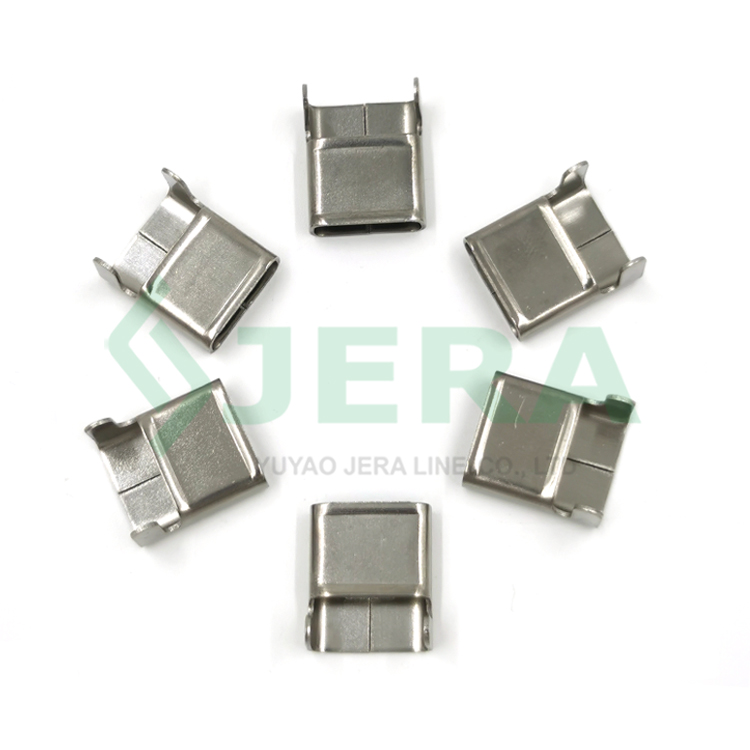

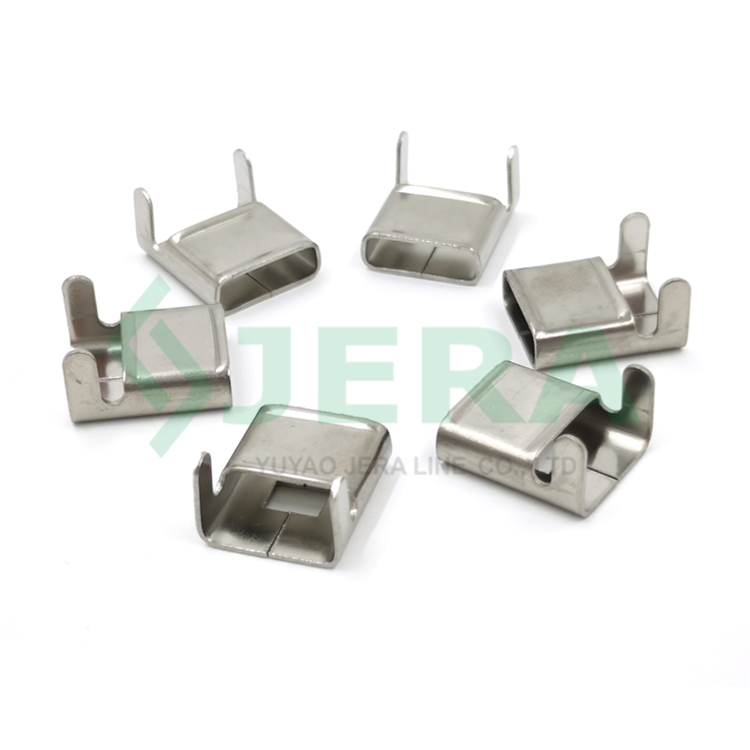

Crafted for high-heat environments, this temperature-resistant stainless steel buckle ensures secure fastening even under extreme temperatures, ideal for power stations and turbines. S tainless steel clips are used to attach protective covers and shields over electrical components to guard against environmental elements, physical damage, and unauthorized access.
Technical specification
Product code
Max band width
Grades
KL-20-LC
3/4“ (20mm)
304
Components and materials
Test scope: Scan the steel band.
Testing equipment: Metal Spectrometer XRF VATANA.
EI
%
Fe
73.3
Cr
15.09
Mn
9.55
Ni
1.16
Cu
0.78
V
0.13

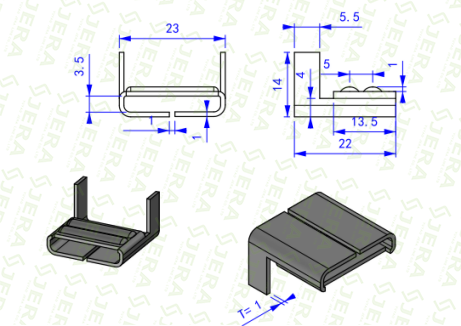

Dimensions
Test
Tensile strength test according to IEC 61284-1997
Machine: Testing machine ZD-4
Test scope: Buckle intalled with stainless steel band on steel pole
and apply tension load on band. The test imitate the real usage of clamp during outdoor
application. After the required tensile load was reached buckle should not break or deformation.
Product name
Required tension force, KN
Conclusion
Buckle for Stainless Steel Strap Spool
7
Passed
Sample before test:
Test result:
Conclusion:
When the tensile load was reached 7KN, buckle did not show any
deformation or damage. After the tensile load was reached 8.09KN the band start to deformation
but the buckle still showed no deformation.This buckle passed the tensile strength test, we
certificate its quality after inspection and approve for further usage.
