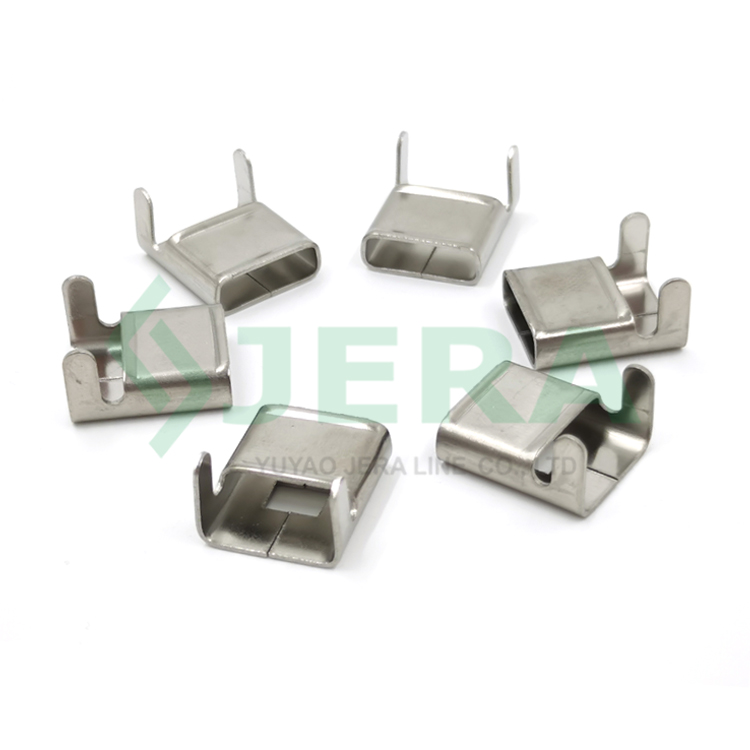

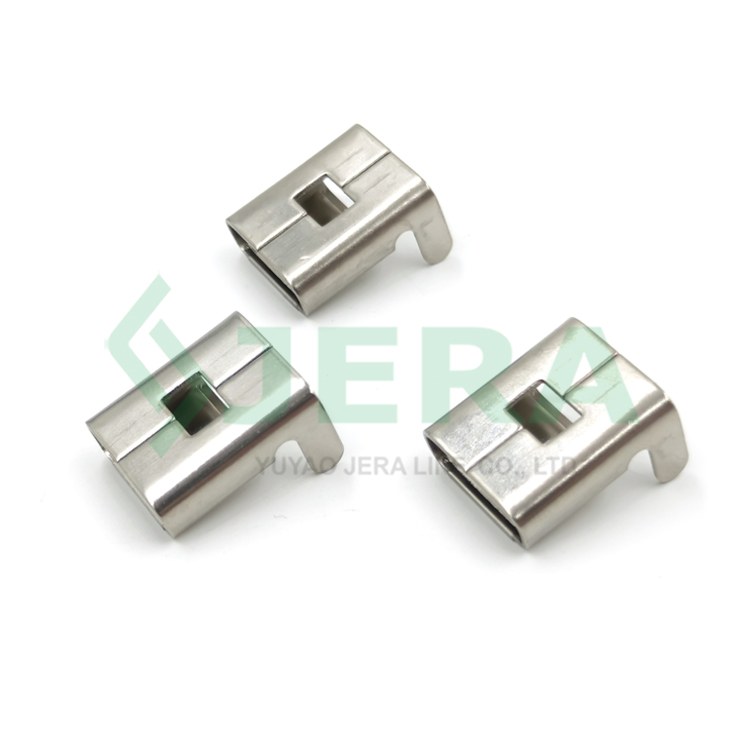

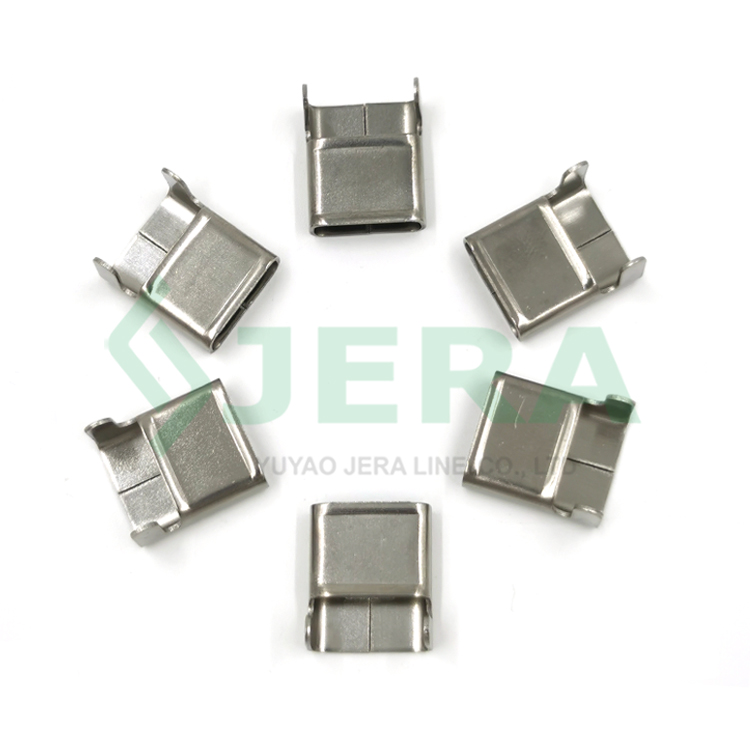

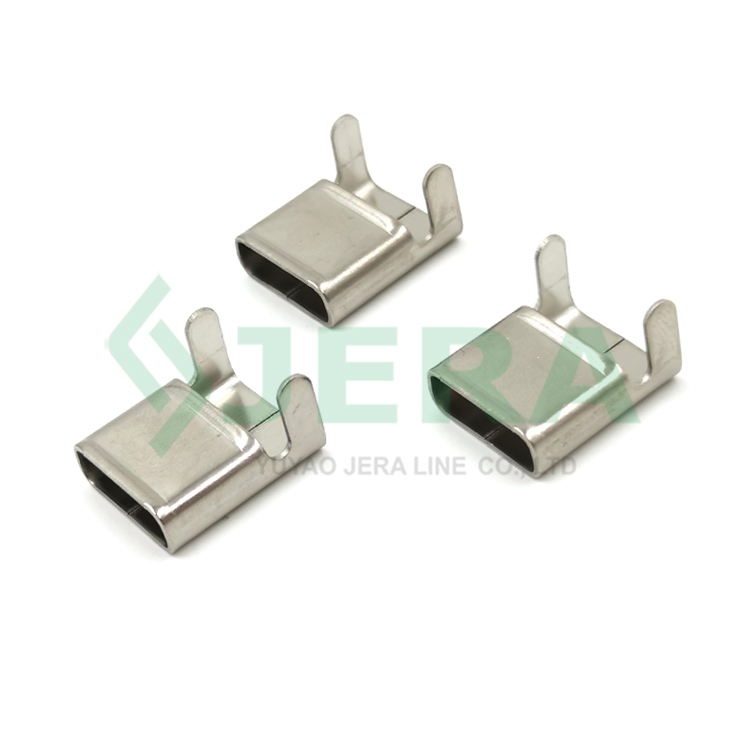

3/4"Stainless Steel Clips，KL-20-LC

3/4"Stainless Steel Clips，KL-20-LC either called Ear-Lokt Banding buckle 20 C304

Features

High physical strength
Compact size and light weight
Used with stainless steel bands together
Overall stainless steel, guarantee long time usage
Good environment stability
Direct factory

DESCRIPTION

TEST

REVIEW

Application

It is designed to securely fasten stainless steel banding straps together, providing astrong and durable connection. The buckle has teeth on the inside that grip the bandingstrap as it is tightened, ensuring that the strap will not slip or loosen over time. Steel Buckles Used to fasten insulation materials around pipes, turbines, and other equipment to maintain temperature control and improve energy efficiency.

Technical specification

Product code	Max band width	Grades
KL-20-LC	3/4” - 19.0mm	AISI304

Components and materials

Test scope: Scan the steel band.

Testing equipment: Metal Spectrometer XRF VATANA.

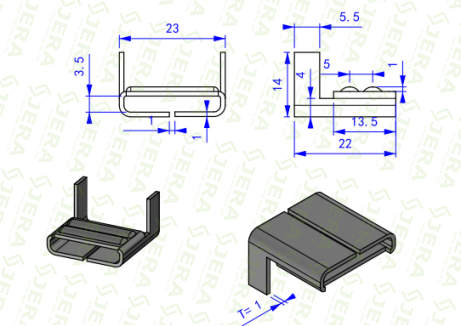

Dimensions

Test

Tensile strength test according to IEC 61284-1997

Machine: Testing machine ZD-4

Test scope: Buckle intalled with stainless steel band on steel pole and apply tension load on band. The test imitate the real usage of clamp during outdoor application. After the required tensile load was reached buckle should not break or deformation.

Product name	Required tension force, KN	Conclusion
Buckle for Stainless Steel Strap Spool	7	Passed

Sample before test:

Test result:

Conclusion:

When the tensile load was reached 7KN, buckle did not show any deformation or damage. After the tensile load was reached 8.09KN the band start to deformation but the buckle still showed no deformation.This buckle passed the tensile strength test, we certificate its quality after inspection and approve for further usage.
