Overhead Anchor & Suspension
/
Stainless Steel Buckles

3/8"Banding Buckle .T Type

our stainless steel clips provide secure and reliable fastening for all your power industry applications.
3/8
Features
  • High Strength and Durability
  • Corrosion Resistance
  • Temperature Resistance
  • Versatile Applications
  • Secure Fastening
  • Direct factory
Contact Us
DESCRIPTION
TEST
REVIEW

Application

Steel banding buckles canTransformer and Substation Maintenance Fastening components and securing connections within transformers and substations to ensure reliable performance and safety.Stainless Steel Banding Buckles for Power Industry Designed for the toughest environments,  Ideal for bundling cables and securing equipment.

Technical specification

Product code Max band width Grades
KL-10-T-C304 3/8“ (10mm)   304

Components and materials

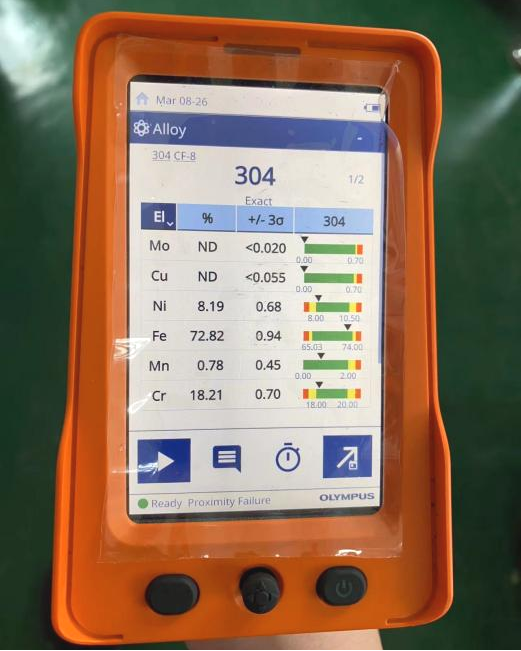

Test scope:  Scan the steel band.

Testing equipment: Metal Spectrometer XRF VATANA.

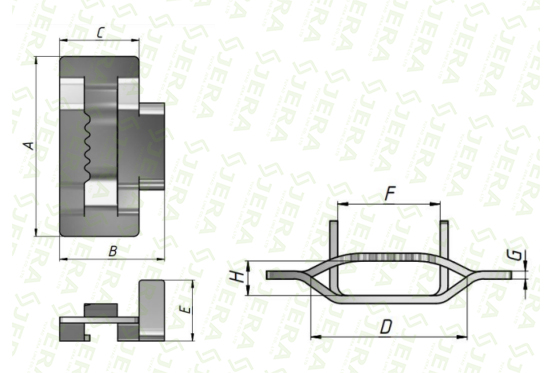

Dimensions

Test

Tensile strength test according to IEC 61284-1997

Machine: Testing machine ZD-4

Test scope:  Buckle intalled with stainless steel band on steel pole and apply tension load on band. The test imitate the real usage of clamp during outdoor application. After the required tensile load was reached buckle should not break or deformation.

Product name Required tension force, KN Band broken, KN Conclusion
Stainless Steel Buckle KL-10-T-C304 7.0 7.43 Passed

Sample before test:

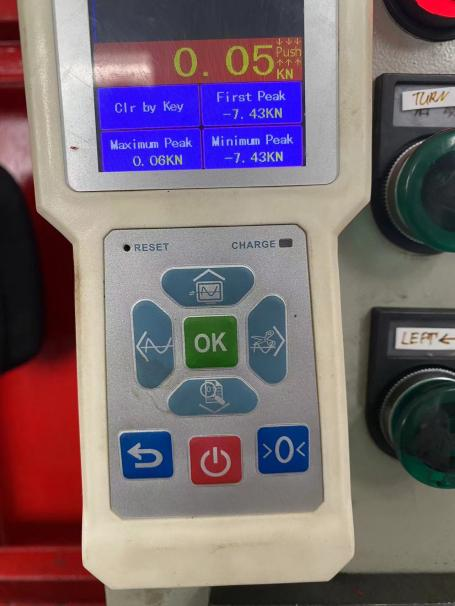

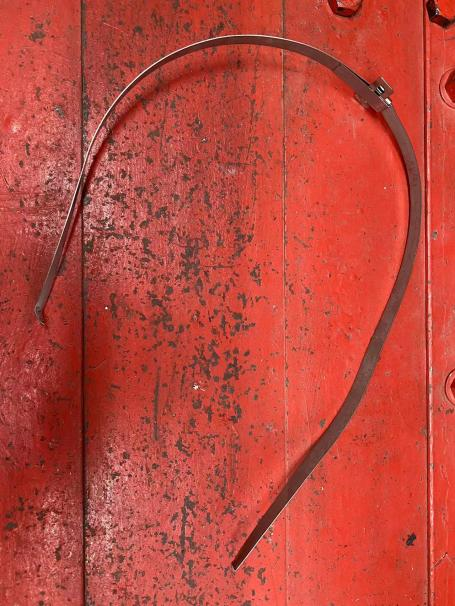

Test result:

Conclusion:

When the tensile load was reached 7.0KN, buckle did not show any deformation or damage. After the tensile load was reached 7.43KN, the band broken but the buckle still showed no deformation.

This buckle passed the tensile strength test, we certificate its quality after inspection and approve for further usage.
