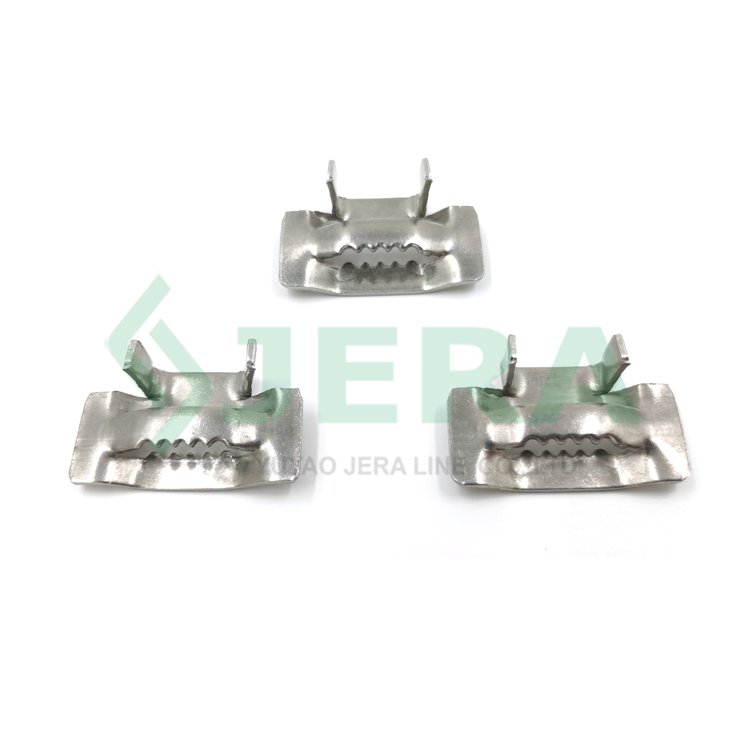

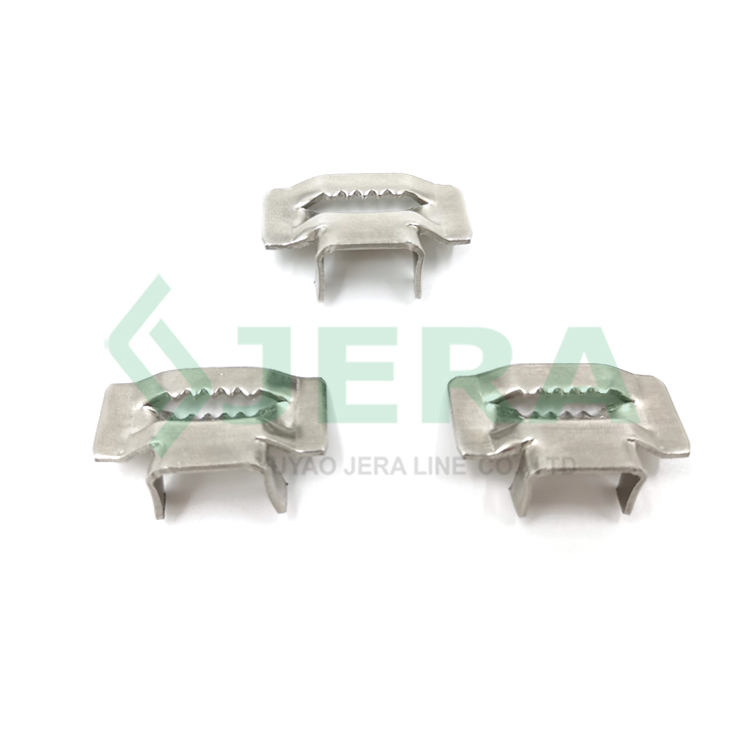

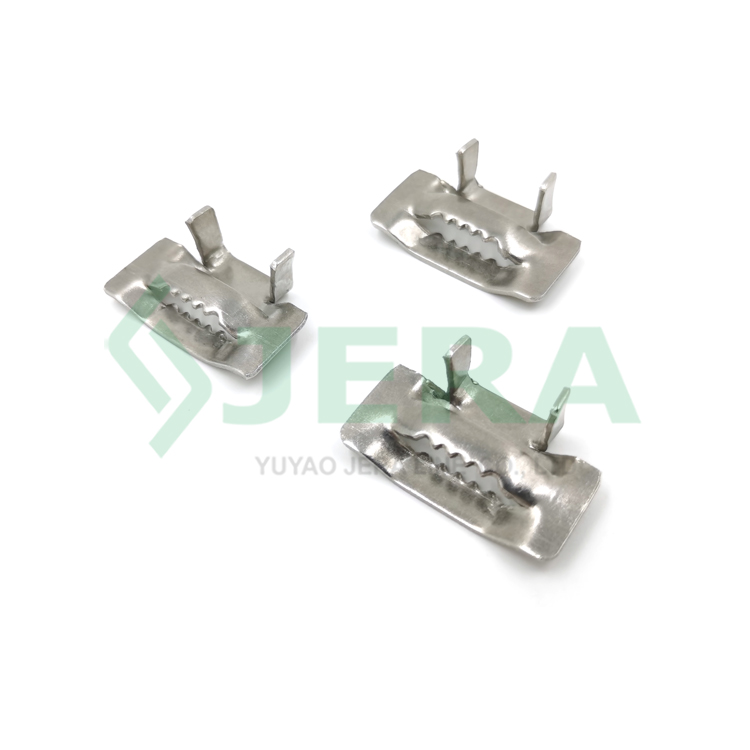

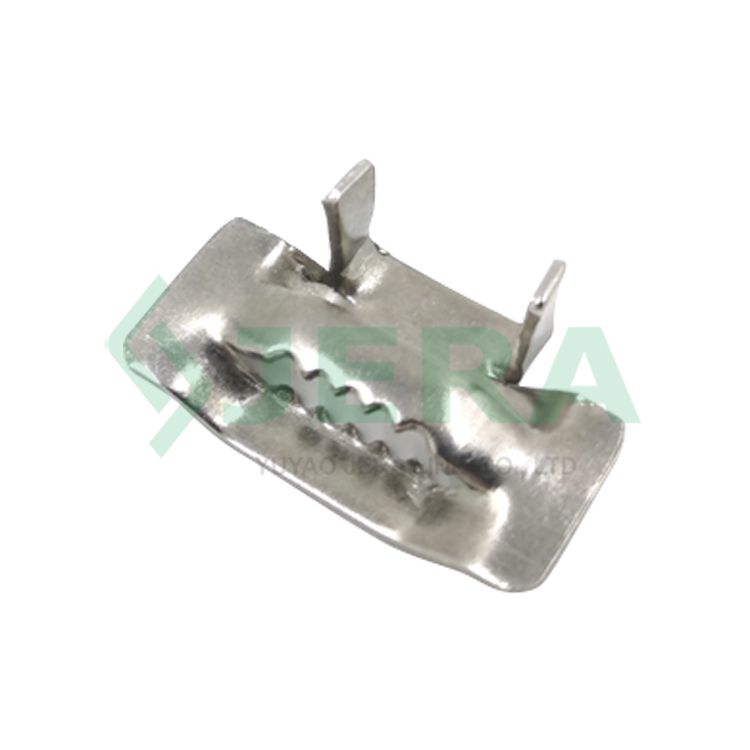

5/8" stainless Steel Strappina Buckle. KL-16-T

Steel banding buckles KL-16-T either called ear lokt banding buckle developed toattach pole fitting
5/8
Features
  • High Strength
  • Corrosion Resistance
  • Durability
  • High-quality stainless steel
  • Easy Installation
  • Direct factory
Contact Us
DESCRIPTION
TEST
REVIEW

Application

Stainless steel clips is Perfect for fixing ducts and insulation materials, this buckle ensures reliable installation and maintenance of heating and cooling systems. anchor clamps, suspension fittings and other fittings or accessoriestogether with stainless steel bands and banding tools, especially in the harsh environments where high resistance oxidatior Is required

Technical specification

Product code Max band width Grades Weight,kg
KL-16-T-C304 5/8” - 16.0mm 304 0.0135

Components and materials

Test scope:  Scan the steel band.

Testing equipment: Metal Spectrometer XRF VATANA.

Dimensions

Test

Tensile strength test according to IEC 61284-1997

Machine: Testing machine ZD-4

Test scope:  Buckle intalled with stainless steel band on steel pole and apply tension load on band. The test imitate the real usage of clamp during outdoor application. After the required tensile load was reached buckle should not break or deformation.

Product name Required tension force, KN Actual data, KN Conclusion
Stainless Steel Buckle KL-16-T-C304 15.0 15.45 Passed

Sample before test:

Test result:

Conclusion:

When the tensile load was reached 15.0KN, buckle did not show any deformation or damage. After the tensile load was reached 15.45KN the band broken but the buckle still showed no deformation.

This buckle passed the tensile strength test, we certificate its quality after inspection and approve for further usage.
