Aluminum Mechanical bolted cable Lug CLBVzT-36-3-400-630, is designed for electrical and power distribution systems for securely connecting and terminating low and medium voltage cables up to 36KV.

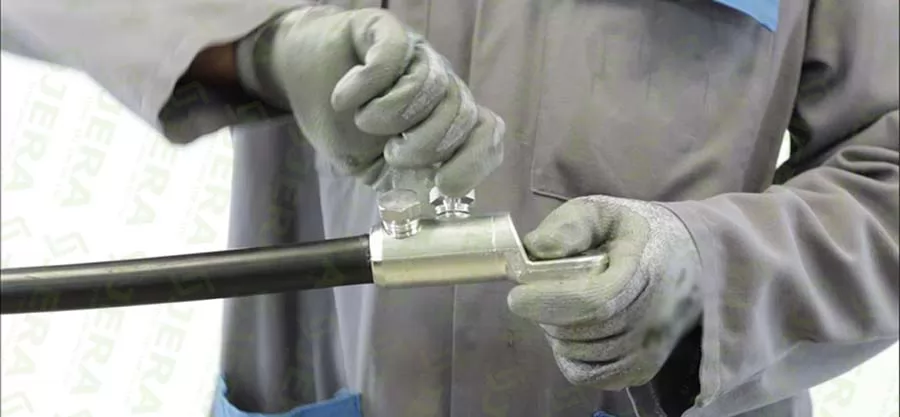

Applications:
● Power Distribution Networks: Connects cables in electrical substations and distribution panels for efficient power distribution.
● Transformer Connections: Provides a secure and reliable connection between large cables and transformers.
● Switchgear and Control Panels: Connects cables to circuit breakers, busbars, and other equipment within switchgear and control panels.
Technical specification
Product code
Cable size, mm2
Torque, N*m
Bolt number
Application cable
CLBVzT-36-3-400-630
400-630
74/76/78/89
3
Copper/Aluminum

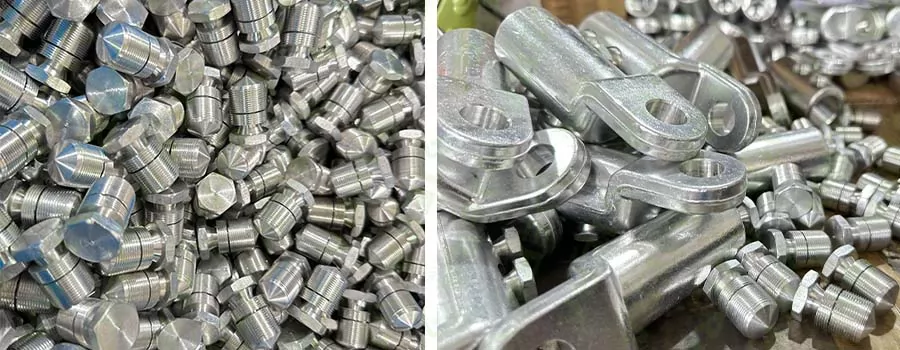

Components and Materials
Shear Head electrical cable lug CLBVzT-36-3-400-630 is produced by a direct factory location in China -- Jera Line, it consists of the following main part:
Components
Materials
Body
Aluminum alloy, tin covered
Shear off torque bolts
Aluminum alloy
Compensating ring
UV resistant FR polymer

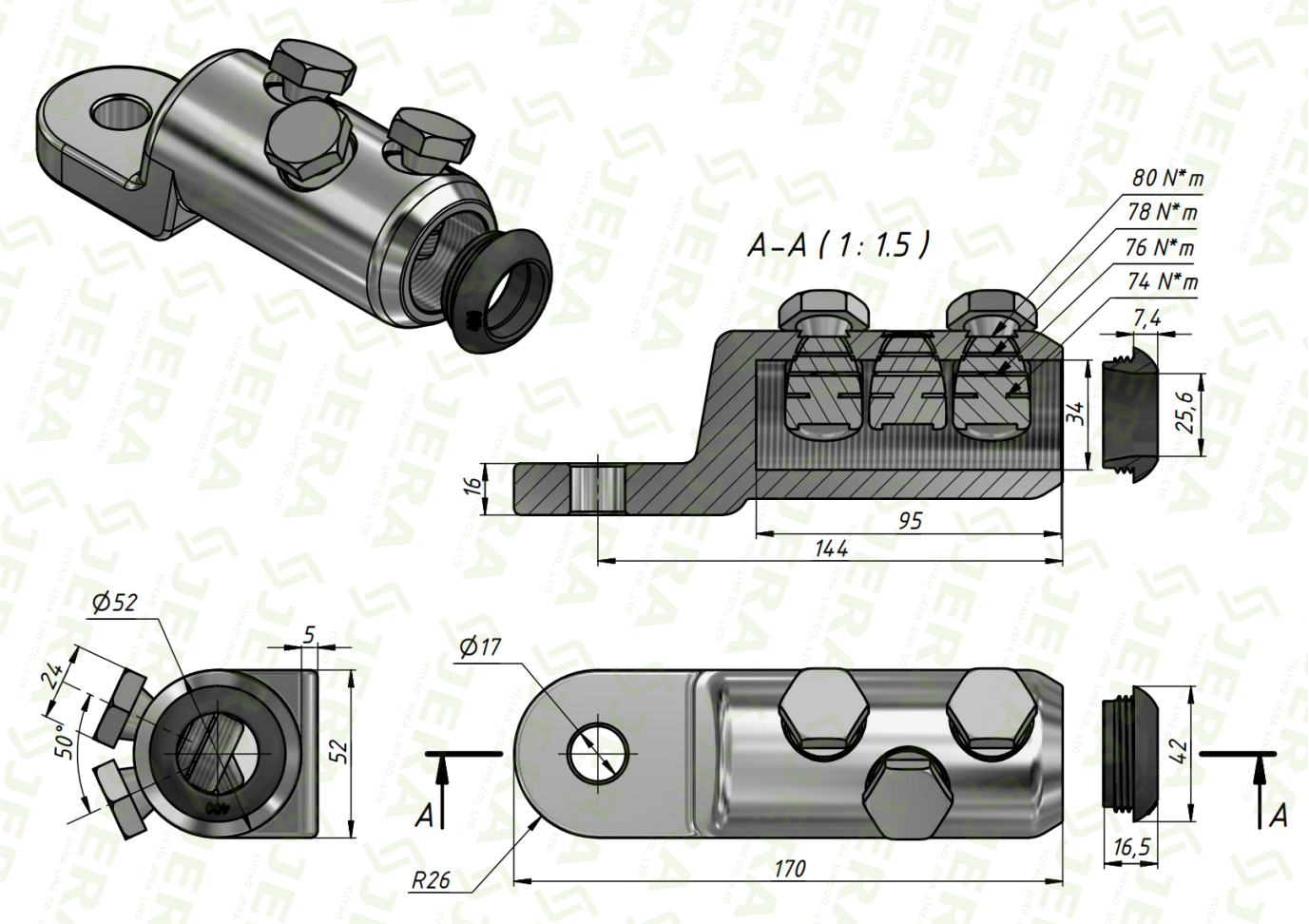

Dimensions

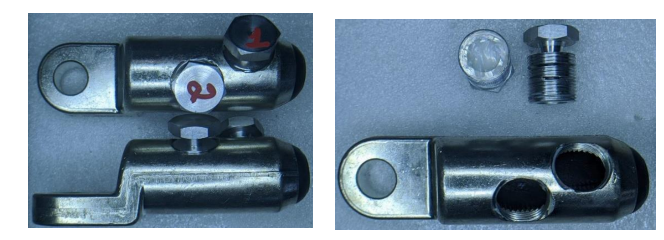

Test
Mechanical terminal Lug CLBVzT-36-3-400-630 has passed routine test by Jera Line own factory laboratory, if the test report required, Jera Line can provide factory test report which according to standard IEC-61238-3.
We do the following test:
· Visual inspection test and dimensional and material verification test
· Mechanical tension test according to standard IEC 61238-1-3
· Shear head functions test according to standard IEC 61238-1-3
