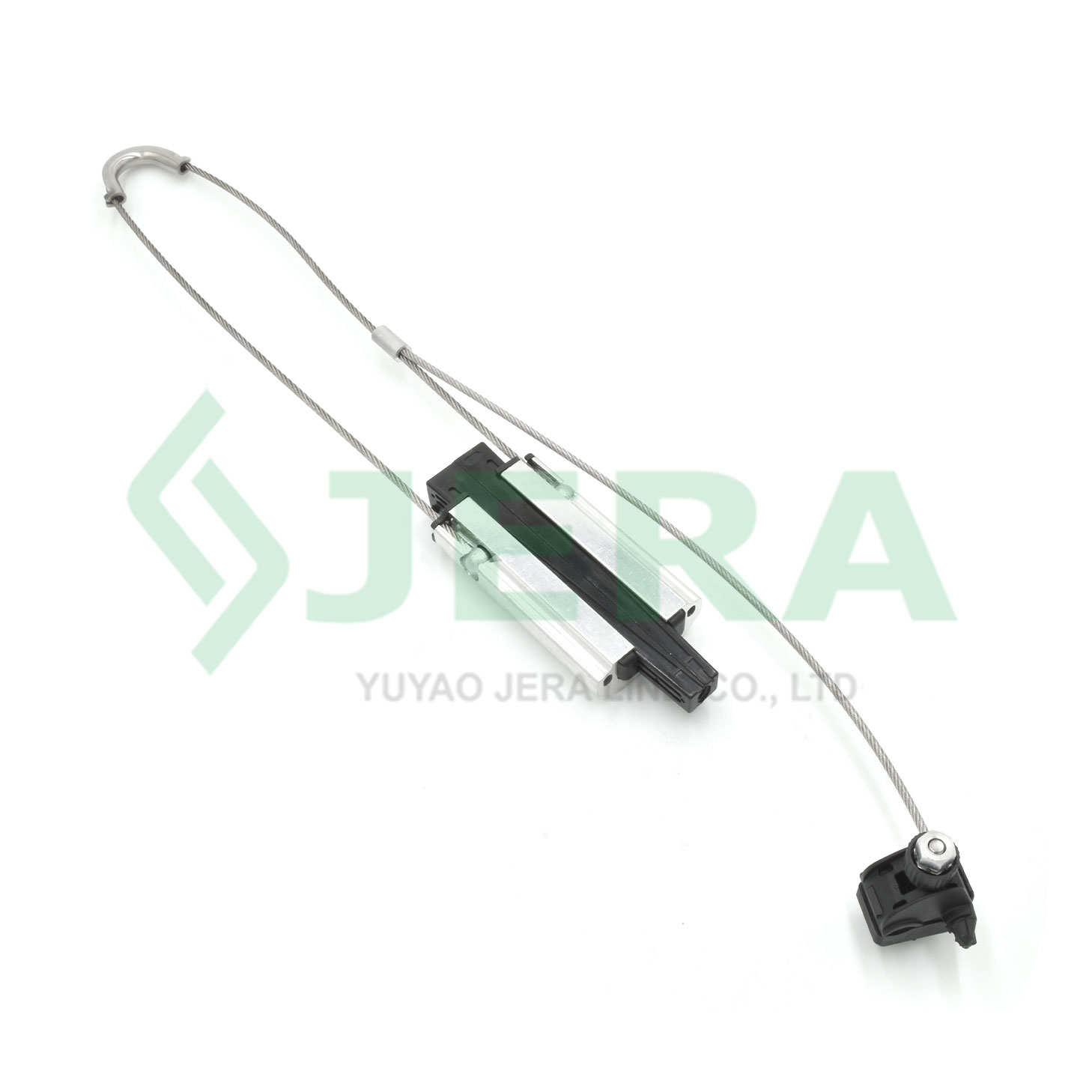

High voltage cable tension clamp PA-2400 95-150 mm2，also called aerial cable tension clamp as a deadend anchor for dead-ending electrical cable insulated conductors.
Features
Tension clamp withhold the required force of high voltage electrical aerial cable
Equipped with the insulation piercing connector, which eliminate short circuit events
Tension clamp has trouble-proofed, which reduces the risk of damage because of wind movement and vibrations
Tension clamp reduce electrical stress
Conform to a minimal breaking failing load (MBFL) of cable, which should withhold to up 95% of the breaking load of it

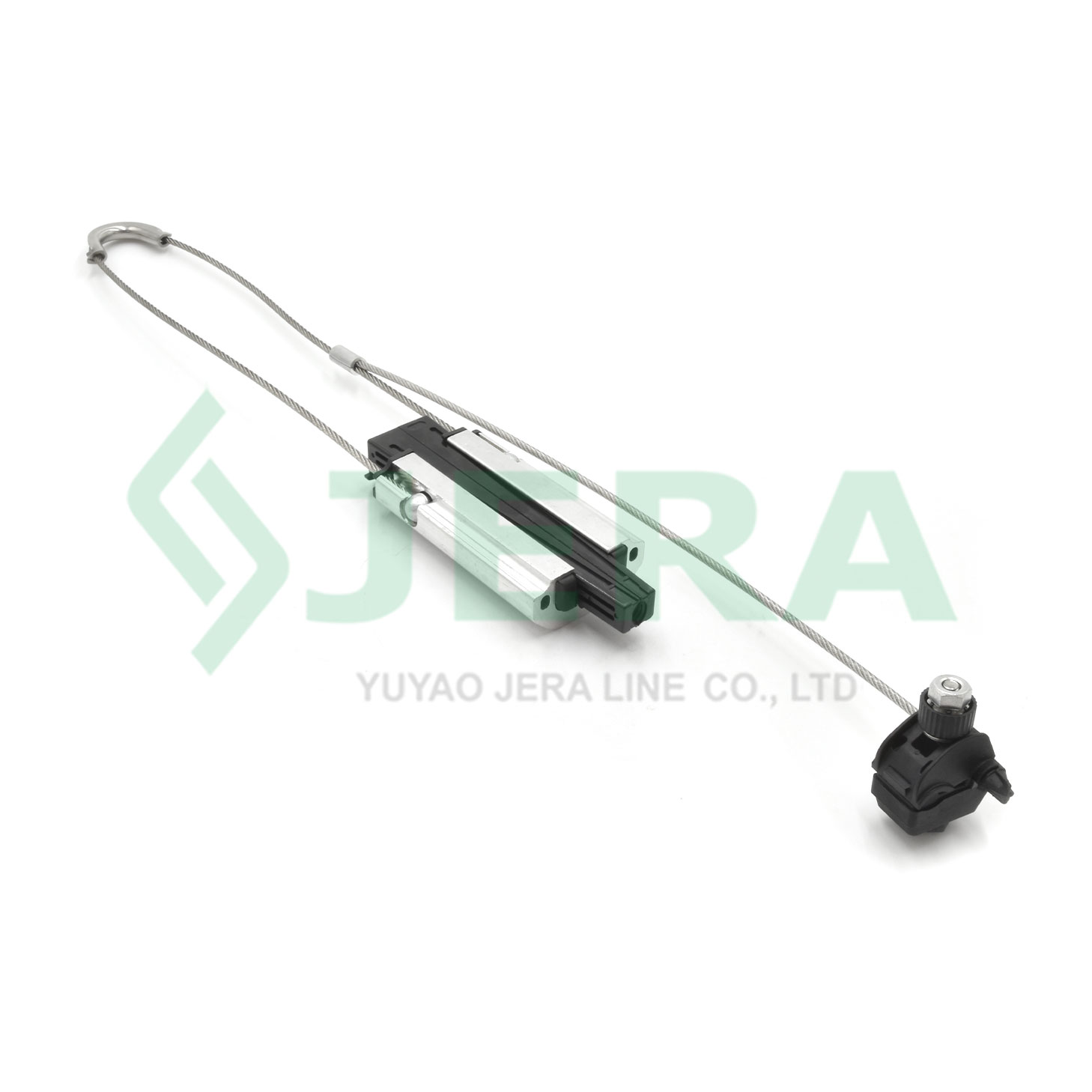

ABC tension clamp PA-2400, equipped with a insulation piercing connector ZOP-45 which will eliminate short circuit events. All Jera clamp and IPC conectors passed a series tests in our own interior laboratory.
Technical specification
Product code
Cable size, mm2
Minimum breaking load (MBL), KN
PA-2400
95-120
25
Components and materials
Wedge type anchor clamp PA-2400, is manufactured by Jera Line, a Direct factory location in China, The clamp consists of following main parts:
Components
Materials
Wire bail
Stainless steel wire + UV resistant U-groove
Body
Aluminum alloy outer shell
Wedge
UV resistant, fiberglass reinforced polymer
Wedge holder
UV resistant, fiberglass reinforced polymer

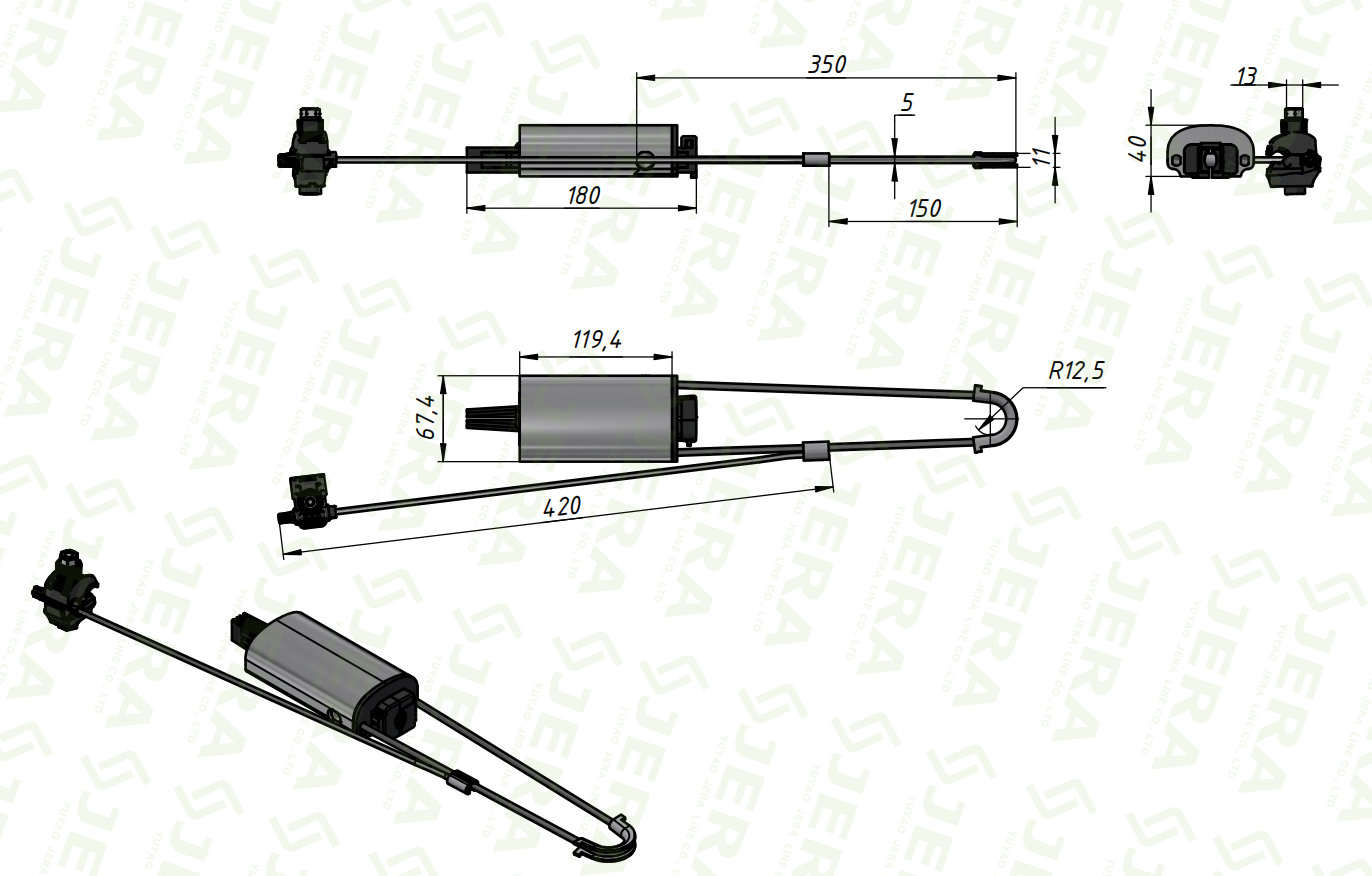

Dimensions
Test

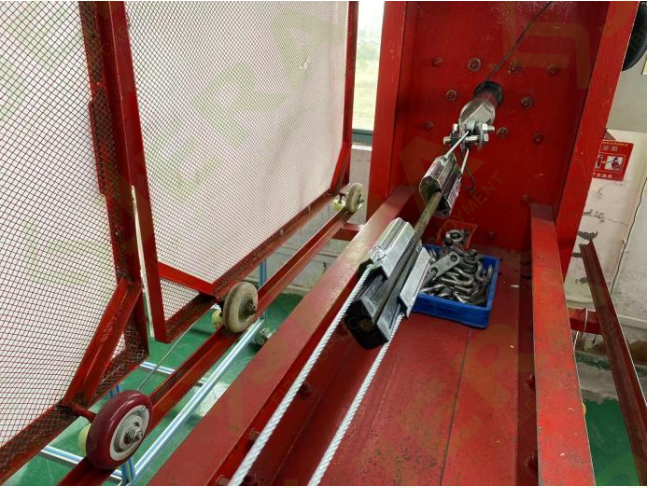

LV tension grip clamp PA-2400 has undergone rigorous the tests includes UV temperature aging test, corrosion aging tests, ultimate tensile strength test, dielectrical voltage test in water etc.
