Anchoring bracket,CA-800

Low voltage anchor bracket made of aluminum alloy, developed to be used on wooden, metal or concrete poles.

Features

Compact size
With high mechanical strength, up to 8KN
Overall aluminum alloy material guarantee long time usage
Both stainless steel band and bolts installation
Good environment stability
Fair price of anchoring bracket

DESCRIPTION

TEST

REVIEW

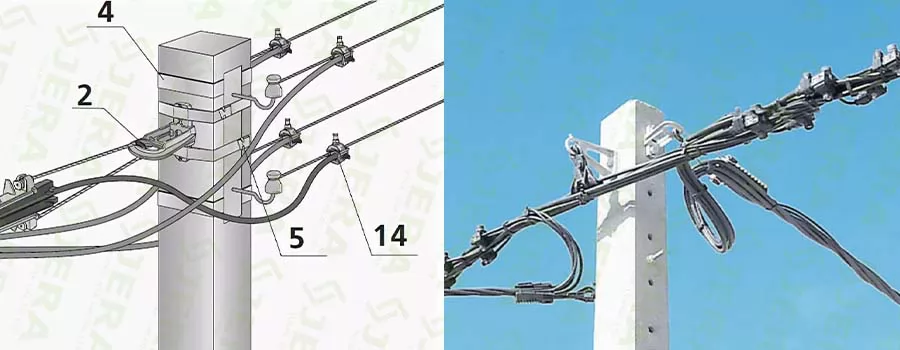

Application

The suspension clamp is used for the direct suspension of round fiber optic ADSS cables at intermediate poles on straight routes. Mostly installed in LV-ABC line with anchor clamps for main cables by 2 stainless steel band (20 mm) or 1 bolts 14, 16 mm diameter.

Technical specification

Code	MBL, kN	Weight, kg	Material
CA-800	8	0.175	aluminum alloy

Components and materials

Universal pole bracket CA-8 00 is made of high quality aluminum alloy, and processed by hot die casting technology. Overall aluminum alloy body provide excellent weather proof and superior mechanical load. The design of this anchor bracket allow easy installation on pole by stainless steel straps or pole bolt during electrical line constructions.

Dimensions

Test

Anchoring bracket,CA- 800 have passed the voltage tests, tension test. All the brackets meets the criteria of NF C 33042 and EN 50-483.We have our own interior laboratory to do inspection during daily production, which ensure our product meet the requirement for aerial electrical line components standards.
