Automatic splice AS-1020-JERA LINE

Automatic splice AS-1020

Tension auto connectors and terminations，70 mm2 cables, Color coded and funnel-shaped end pieces, quick installation

Features

Pilot caps envelop cable strands and guide the conductors into the center of the splice
Tubular center stop automatically determines proper insertion length of both conductors
High-strength aluminum-alloy tubing covers the connection for superior corrosion protection and long-lasting durability
Color-coded tape enables identification of the minimum conductor size of wide-range connectors – it further eliminates errors and speeds up installations
Direct factory location in China

DESCRIPTION

TEST

REVIEW

Application

Automatic Joint Splice AS-1020 is designed to connect electrical conductors in overhead transmission and distribution lines.

To ensure a secure and reliable connection, making it ideal for electrical infrastructure projects.

The overhead self-locking automatic tension splices speeds up installation Time, lower maintenance costs.

Technical specification

Product code	Cable size, mm2	Conductor diameter	Connector length
AS-1020	70	9.27-12.06	418±2

Components and materials

Automatic self-gripping splice AS-1020, is manufacturered and Research and Design RnD by Jera Line, a direct factory location in China，the automatic tension splices consissts of the following main part:

Components	Materials
Body	Aluminum Alloy

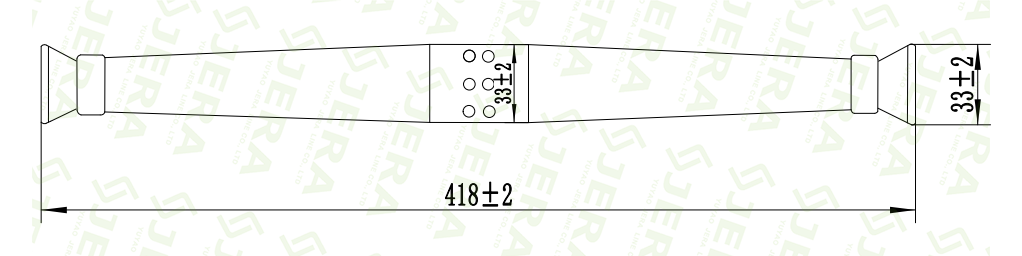

Dimensions

Test

Automatic tension splice and deadend needs a critical process to ensure their performance, safety, and reliability in electrical transmission and distribution systems.

The following is the key testing procedures:

· Tensile Strength Test

· Electrical Resistance Test

· Heat Cycle Test

· Corrosion Resistance Test

· Impact Test

· Environmental Aging Test

· Installation and Removal Test

Jera Line has own factory laborotory for:

· Electrical performance validation

· Environmental performance validation

· Mechanical properties & performance validation
