Bare/insulated Cable piercing Connector ZOP-22N (L)

Low voltage bare/Insulated Electrical wire piercing Connector, 10-95/10-95 mm2, aluminium insulated-insulated cables, bare-bare cables，AL insulated-bare cables.

Features

Aluminum Alloy contact teeth, stuiable for Insulated AL cable and bare cable connection.
Wide cable application size 10-95/10-95.
UV resistant Polymer body material, durable insulation cover.
Easy and fast installation, only need to tighten the bolt.
Good performance of waterproof and aganist humidity
Direct factory location in China.

DESCRIPTION

TEST

REVIEW

Application

Bare/Insulated Cable Penetration Connector ZOP-22N (L) is developed to connect main and branch conductors, such as aluminium insulated-insulated cables, as well as bare-bare cables, or insulated-bare cables up to 1KV, it is class A2 connector.

Equipped with shear head insert and insulation cover.

Technical specification

Product code	Cable size, mm2		Torque, N*m
	Main	Tap
ZOP-22N(L)	10-95	10-95	20+-2

Components and materials

Bare/Insulated Conductor Piercing Connector ZOP-22N (L), is manufacturered and Research and Design RnD by Jera Line, a direct factory location in China who can provide Extended warranty,the piercing connector consissts of the following main part:

Components	Materials
Insulation cover	UV resistance two components insert molding of composite polymer and elastomer
Contact plate	Aluminum
Bolt	Stainless steel
Nut	Aluminum alloy

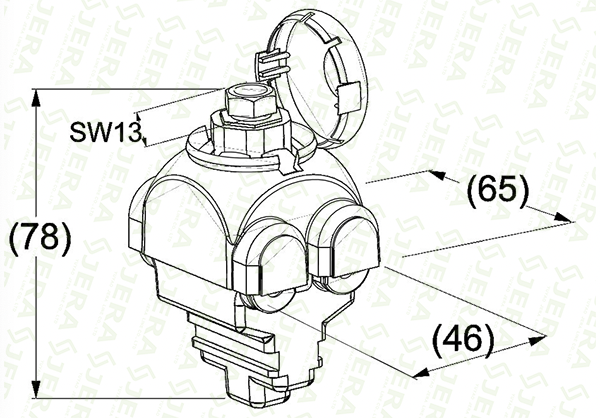

Dimensions

Test

Bare/Insulated Cable Tap Connector ZOP-22N (L) has passed regular routine test by Jera line factory laboratory according to EN-50483:4 standard, the test scopes are as following:

l Visual examination

l Dimensional and material verification

l Test for permanent marking

l Connector bolt tightening test

l Shear head function test

l Dielectrical voltage test in water
