The ZOP-P72 Insulated wire Piercing Connector, is developed to connect main and 2 branch conductors, insulated-bare cables up to 1KV. It is easy and fast to install with out special tools.
Key applications:
● Low-Voltage Overhead Distribution Systems: Used for connecting bare aluminum cables in aerial low-voltage networks
● Tap and Main Line Connections: Facilitates connections between main lines and tap lines
● Utility and Industrial Applications: Suitable for use in urban and rural power distribution networks
Technical
specification
Product code
Cable size, mm2
Main
Tap
ZOP-P72
35-95
2*2.5-54.6
Components and materials
The ZOP-P21 Aluminum cable Insulation Piercing Connector is engineered and manufacturered by Jera Line, a direct factorylocation in China who can provide Extended warranty,the piercing connector consissts of the following main part:
The ZOP-P72 Insulated to bare conductor Piercing clampis engineered and manufacturered by Jera Line, a direct factorylocation in Chinawho can provideOEM service,the piercing conductor connector consissts of the following main part:
Components
Materials
Body cover
UV resistance polymer
Metal part
Aluminum

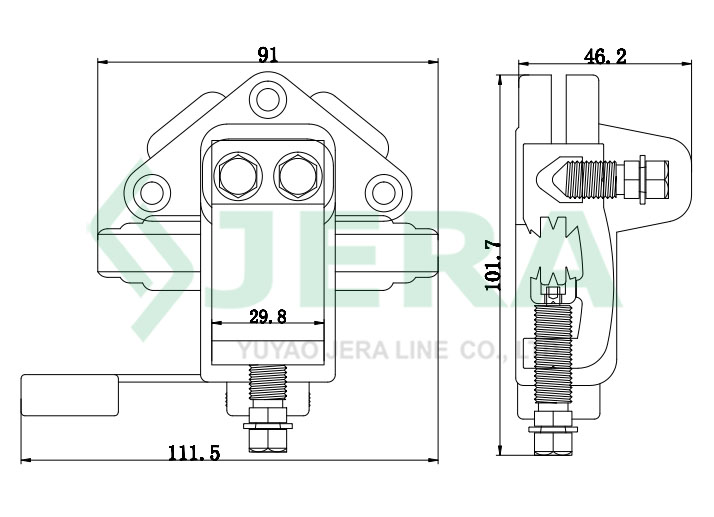

Dimensions
Test
The insulated aluminum Cable Piercing connector ZOP-P72, designed and manufactured by Jera Line, it has undergone rigorous testing in Jera’s in-house laboratory. It comply with the European standard EN-50483:4 for connectors used in low-voltage overhead distribution systems.
Jera Line offers a factory routine test report if has request. This report provides detailed results of the performed tests, ensuring that the ZOP-P71 connector meets all quality and compliance standards.
