JS-38B hot-dip galvanized steel wire guy-grip, is used for 5/16” conductors, is a specialized fitting used in the installation of overhead lines, providing secure and efficient termination of conductor wires. Its robust and reliable design makes it an essential component for maintaining the integrity and stability of electrical system.
Key applications:
● Utility Pole Systems: terminate guy wires or conductors
● Transmission and Distribution Lines: Conductor Termination and Load Management
● Solar farms: the brace dead end grip helps in anchoring support structures

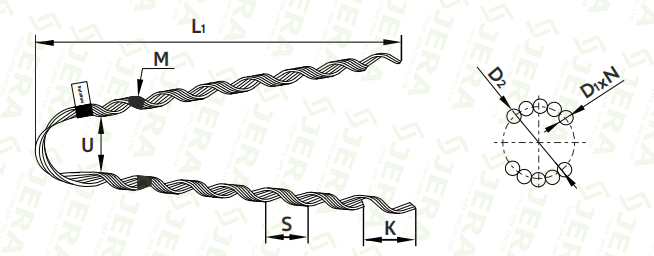

Technical specification
Product code
Conductor diameter, mm
Wire configuration
MBL
Length, mm
U size, mm
Color code
Rotation
JS-38B(5/16”)
7.94
2,8*4
49.8KN
570 -5
17
Black
Left
Components and materials
The JS-38B Dead-End wire Grip is a high-quality, preformed wire grip produced by Jera Line direct factory. Designed for easy and efficient hand installation, it can be mounted directly onto wire strand ropes, making it an ideal solution for securing conductors in various applications. The products consist the following part:
