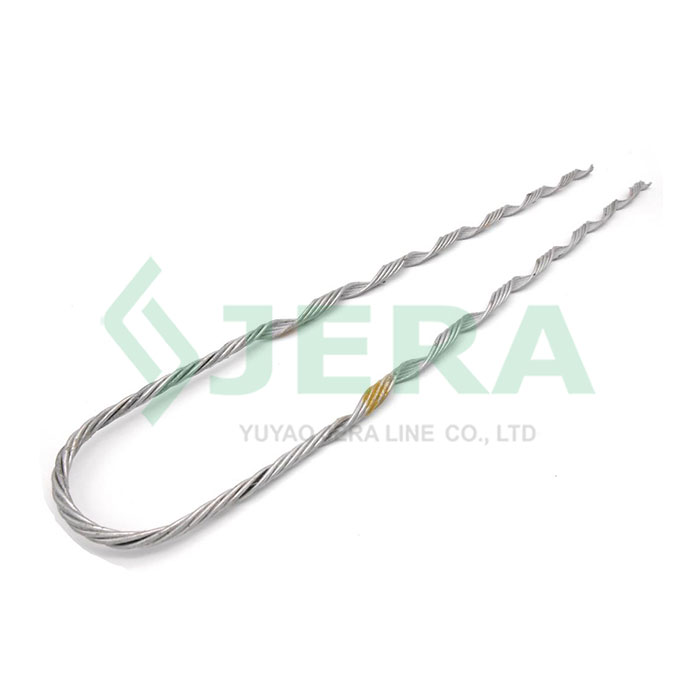

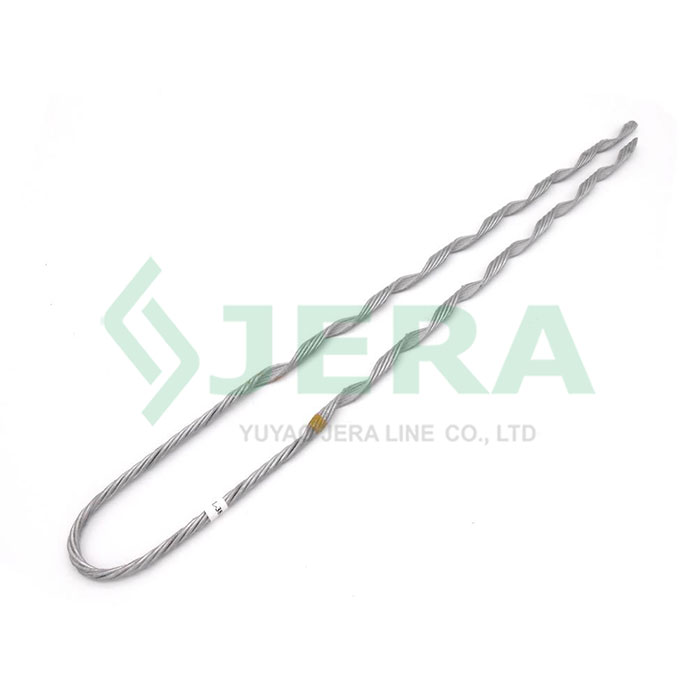

Jera’s Guy grip dead end JS-22B, is also called brace grip, designed to fix overhead power conductors in power line distribution constructions. Wire inner side covered by sand layer and glue which will increase the force of friction between conductor.
Technical specification
Product code
Conductor diameter, mm
Wire configuration
MBL
Length, mm
U size, mm
Color code
Rotation
JS-22B(1/4”)
6,35
2,2*4
29.56KN
525 -5
17 -5
Yellow
Left
Components and materials
The steel wire dead end, is R&d by Jera Line factory, it doesn’t require other tools for installation.The configuration of preformed Helical wire were calculated to minimize failure and retain the maximum rated strength. The products consist the following part:
Components
Materials
Body
hot-dip galvanized steel

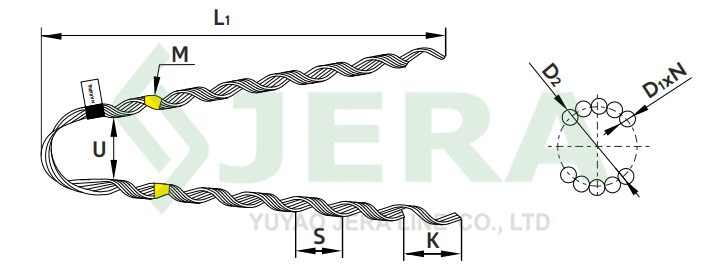

Dimensions
Test

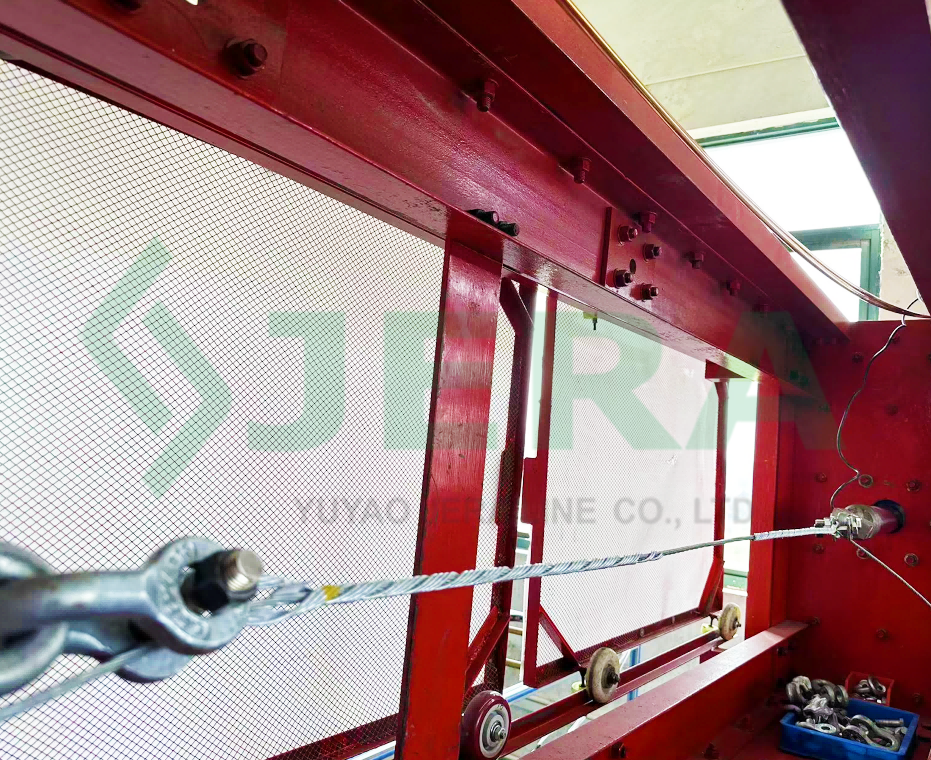

Our entire preformed wire dead end JS-22B have been tested Mechanical properties & performance validation by Jera’s laboratory. We have our own testing machine such as Tensile strength machine in laboratory to do daily inspection and test.
If the required conductor size is not in our chart, please send us your specification of conductor, we will check or develop exact product for your requirements.
