Insulated Torque Wrench for IPC Installation, low voltage usage up to 1000v, ZOP series Insulation piercing connector shear head tightening hex key for 1/2 inches size
Features
Live line installation up to 1000 V
Dielectric Insulation, complying with IEC 60900 standard
Ideal for Jera LV series IPC shear head tightening

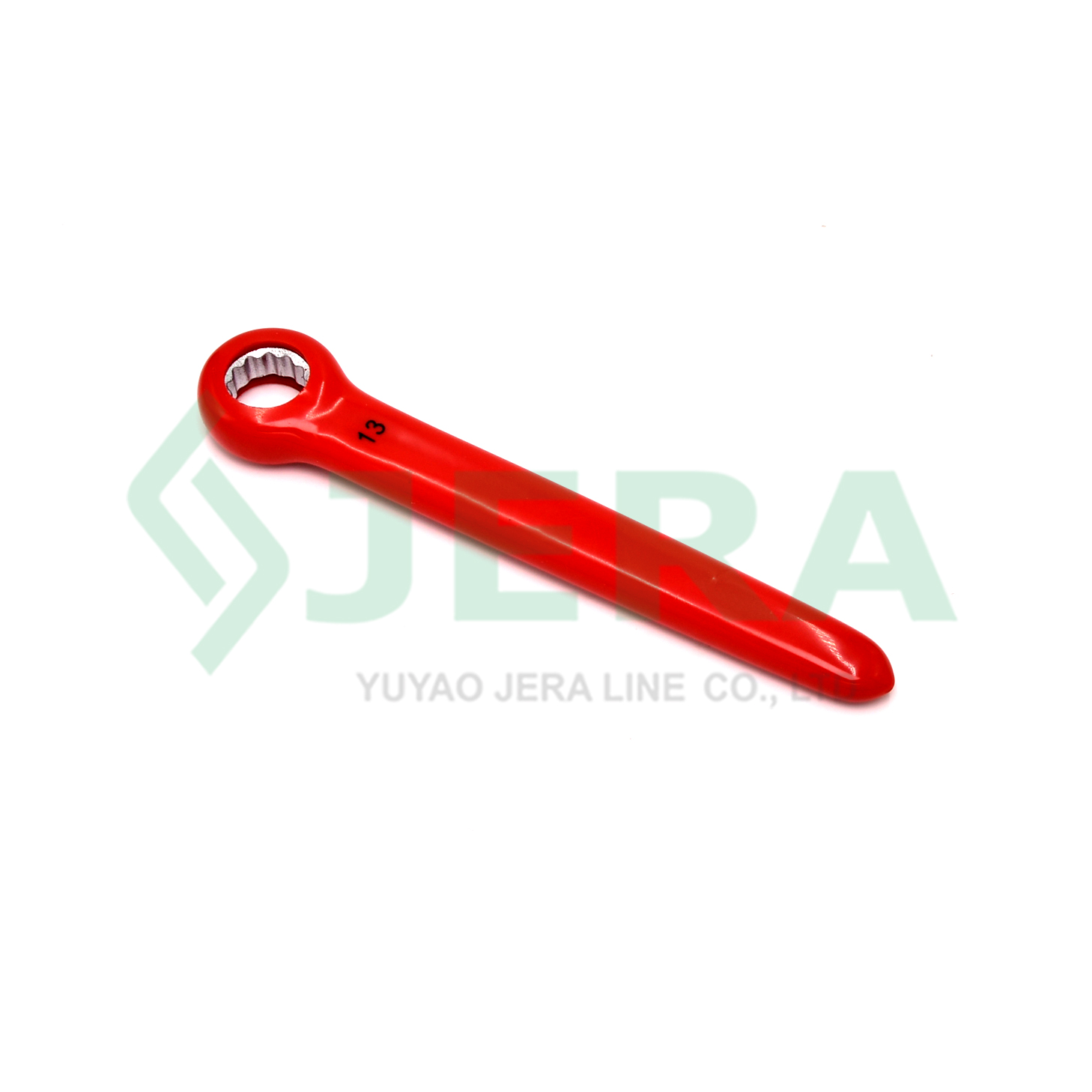

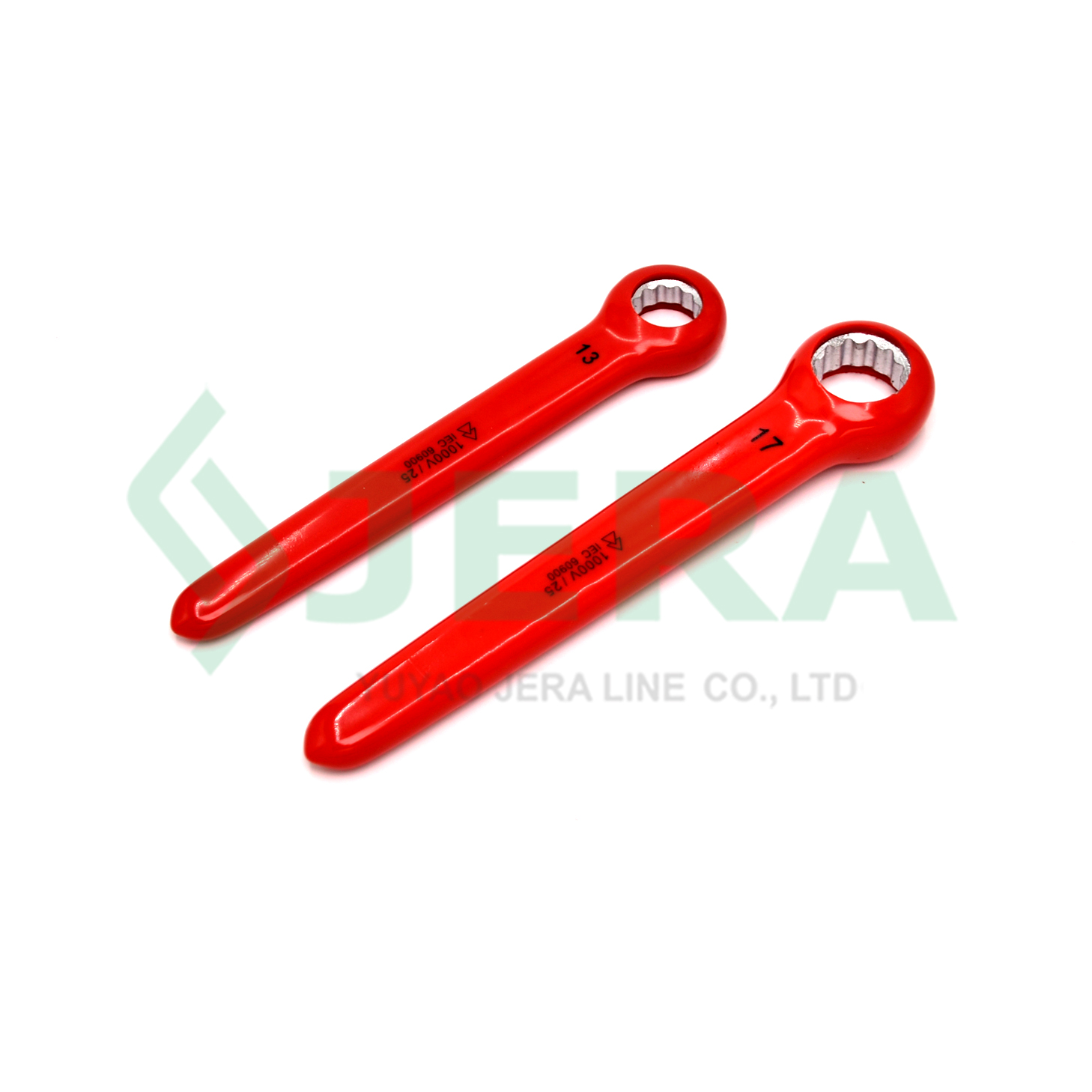

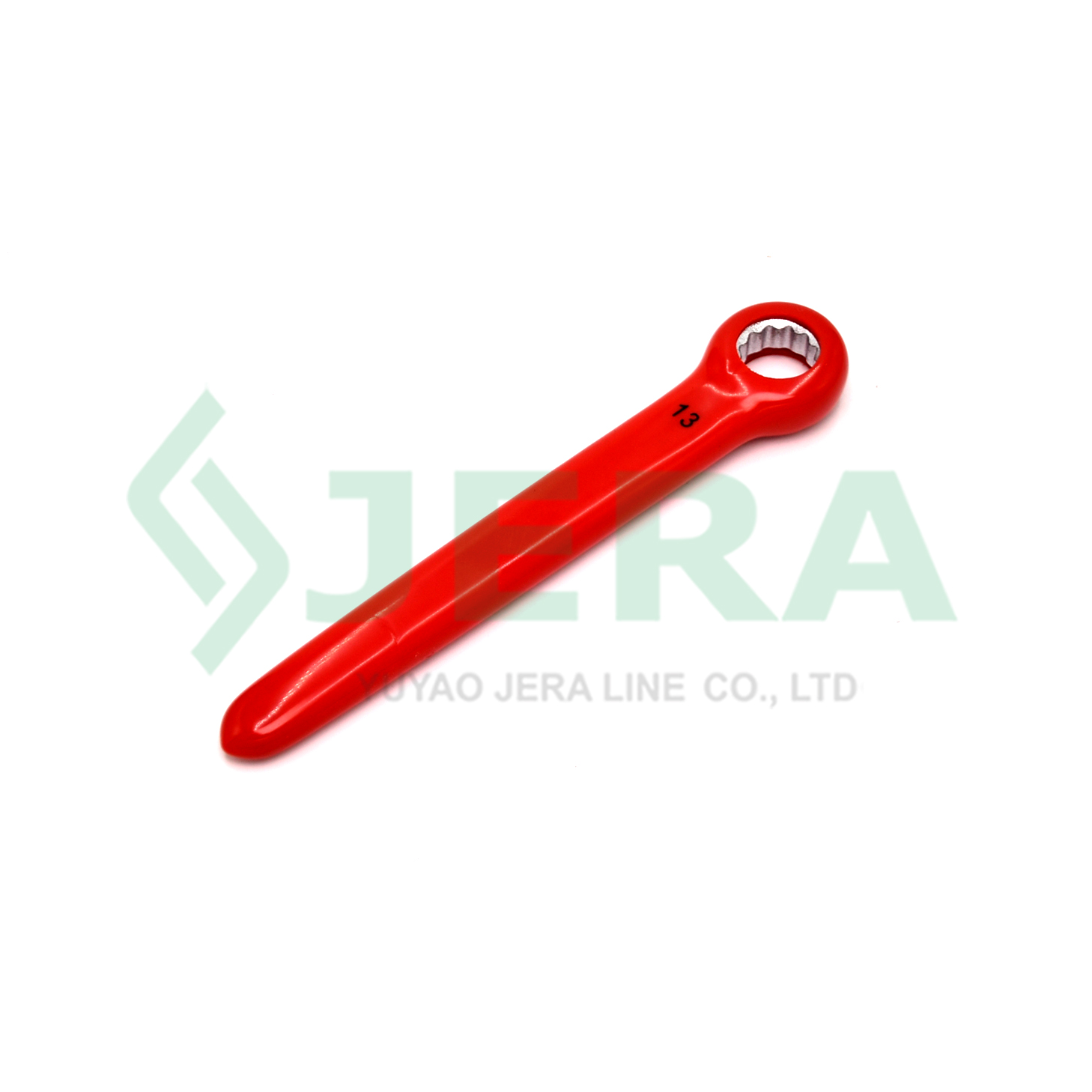

The Dielectric Torque Wrench JTN-11-13 is designed for use with Insulation Piercing Connectors (IPCs). This tool ensures that the bolts on IPC connectors are tightened to the correct torque, which is crucial for creating a reliable and safe electrical connection.
Technical specification
Product code
Product Type
Size
Application voltage
JTN-11-13
Wrench
13 mm, 1/2 Inches
< 1000 V
Components and materials
Low voltage torque wrench 1/2" Insulated tool consist the following part:
Components
Materials
Body material
Steel
Insulation cover
Rubber
Key Installation steps
1/2 Inch Insulated Torque Wrench for IPC installation, the steps of installation:
Prepare the Cable: Ready the cables which used for insulation piercing connectors
Loosen the Connector: Separate the connector halves by loosening the bolt using the insulated ratcheting torque wrench.
Position the Connector: Place the IPC onto the cable, ensuring the conductors are properly placed in the gutters of the connector.
Tighten the Connector: Use the insulated ratcheting torque wrench to tighten the nut until the head shears off, ensuring a reliable and permanent contact.
Verify Installation: Check that the connector is securely fastened and there is no movement.
Test
Electrical utility torque wrench JTN-11-13 for IPC Applications has undergone rigorous Environmental performance validation by Jera Line Laboratory. Such as:
