It is mainly used to fix and tighten fiber optic drop cables. Made from UV resistant PA polymer, this bracket can be attached to wood, metal, concrete poles or buildings with stainless steel straps or bolts. It is commonly used to secure FTTH cables and drop wires with different diameters and spans.

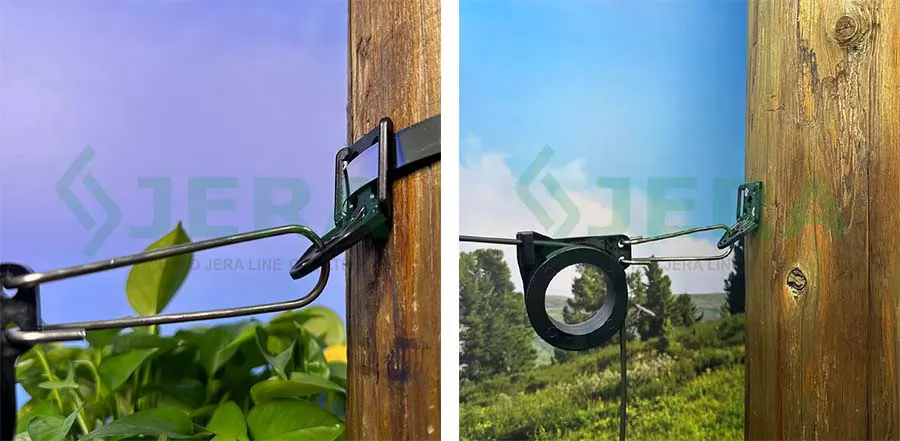

Application
Applied outdoor, for connecting telecommunications racks, buildings
and industrial buildings with fiber optical cable clamps.
Technical specification
Product code
Material
MBL,KN
Cable
Diameter(mm)
YK-18
UV resistant PA polymer
0.5
2.0-2.5
Components and materials
This
hinger
Supportis composed of UV resistant PA
polymer, and the entire product is bent at an angle to facilitate the use of steel strips
and the installation of wire clips.
The chemical bonds of PA can absorb huge ultraviolet
rays/heat/radiation, etc. Therefore, we use this material to make this product extremely
resistant to UV rays, which means that this YK
Fiber Optic Drop Cable Clamp has a
longer service life than brackets made of other materials and can save you
costs.
Even this hook is lightweight product but it has high mechanical strength and
provide excellent environmental stability. In ordinary usage, drop cable clamp is not
easy to fall of due to its structural characteristics. It
’
s usually apply with tension or suspension drop clamps and it can be
installed on wooden, metal, concrete walls by bolt.
Dimensions

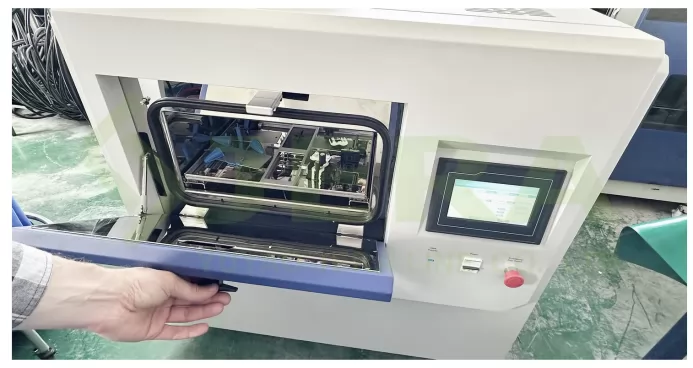

Test
Drop cable YK-18 bracket have passed the voltage tests, tension
test. All the brackets meets the criteria of NF C 33042 and EN 50-483.We have our own
interior laboratory to do inspection during daily production, which ensure our product
meet the requirement for aerial electrical line components standards.
