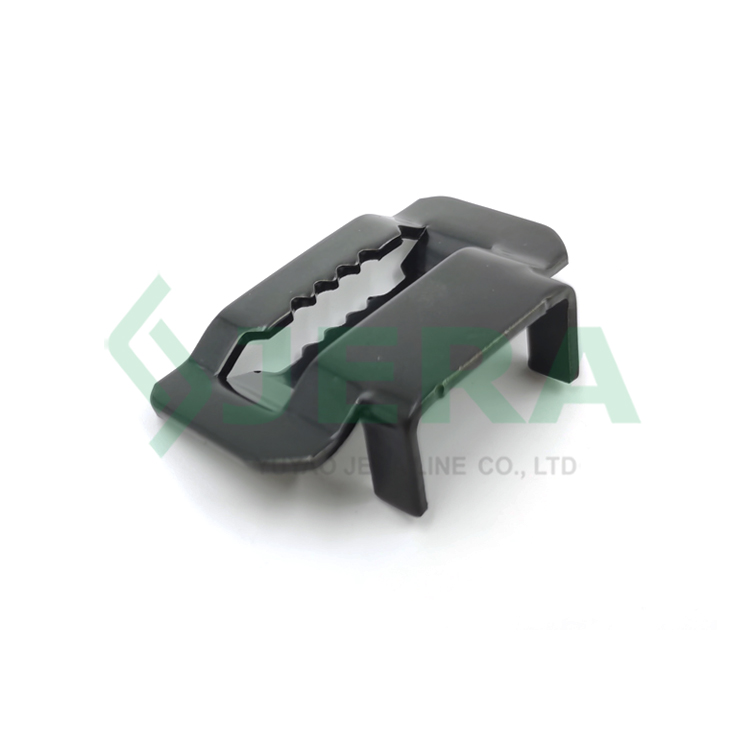

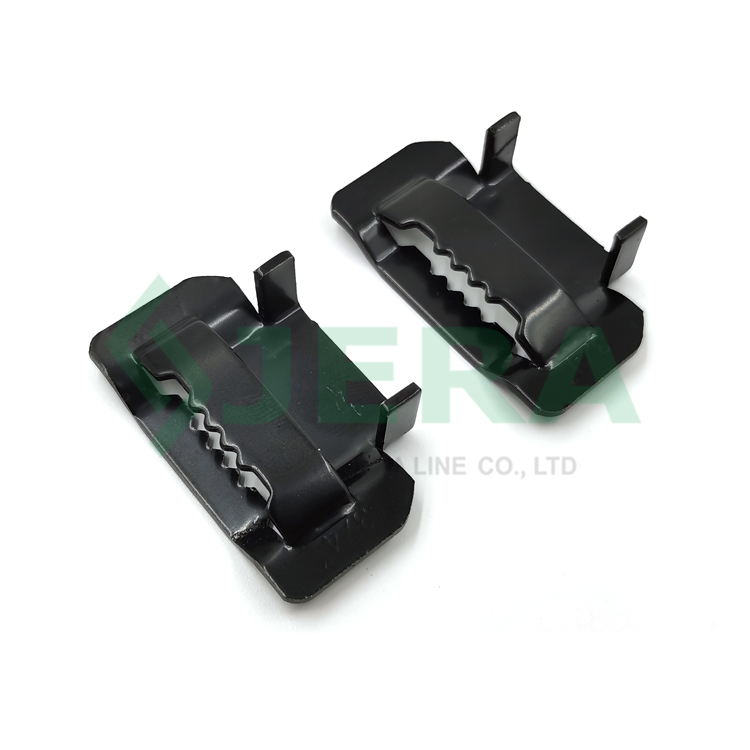

Banding Buckle, also called stainless steel strapping buckle made from high-quality stainless steel, offers exceptional strength and corrosion resistance.
Stainless steel banding buckle Ideal for organizing
and securing electrical cables and wires, this buckle provides a robust and durable solution for
both indoor and outdoor applications.Ideal for securing cables, conduits, and transformers, it ensures stability and reliability in harsh outdoor environments, making it a top choice for power industry professionals.
Technical specification
Product code
Max band width
Grades
Weight,kg
KL-20-T-C304
3/4” - 20.0mm
304
0.0135
Components and materials
Test scope: Scan the steel wire with testing
equipment: XRF VATANA, and check the data result.

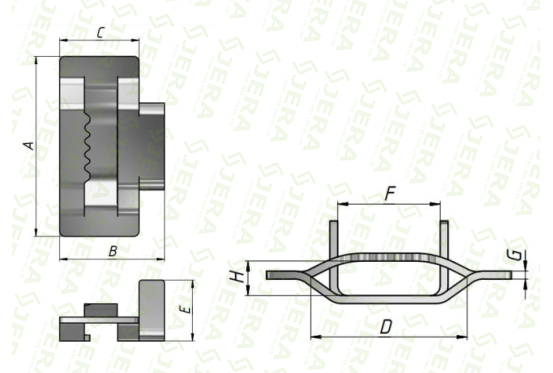

Dimensions
Test
Tensile strength test according to IEC 61284-1997
Machine: Testing machine ZD-4
Test scope: Buckle intalled with stainless steel band on steel pole
and apply tension load on band. The test imitate the real usage of clamp during outdoor
application. After the required tensile load was reached buckle should not break or deformation.
Product name
Required tension force, KN
Actual data, KN
Conclusion
Stainless Steel Buckle KL-20-T-C304
15.0
15.45
Passed

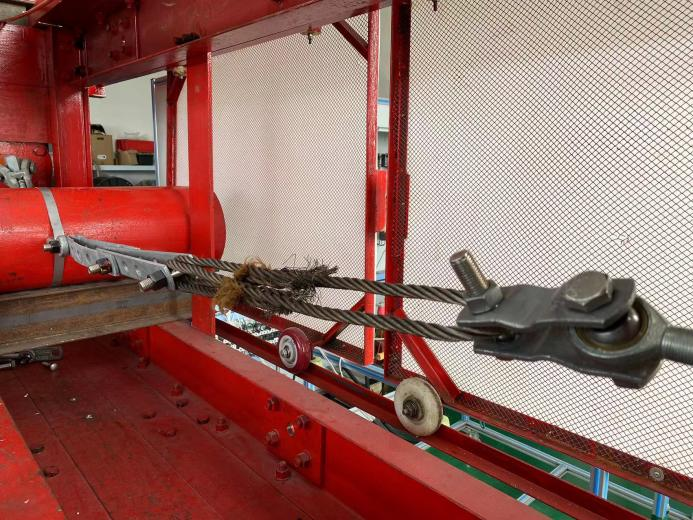

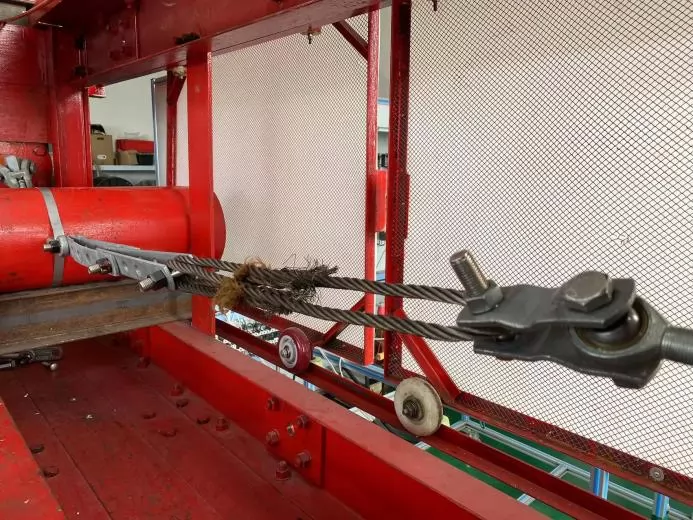

Sample before test:

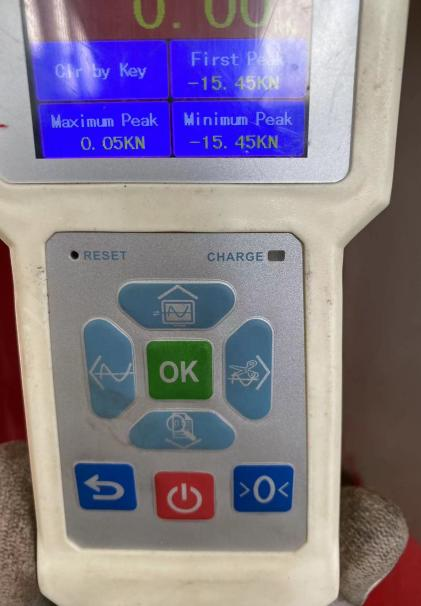

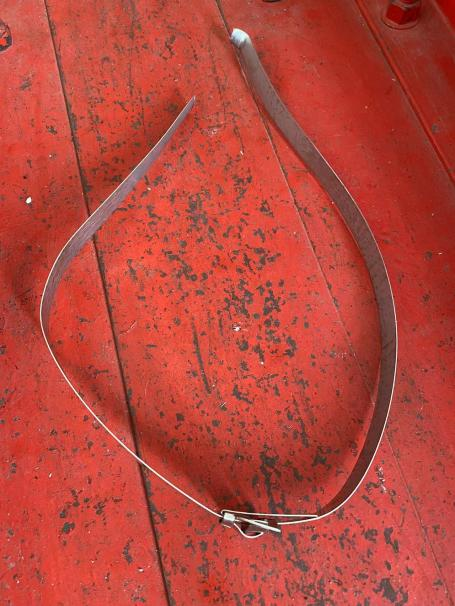

Test result:
Conclusion:
When the tensile load was reached 7.0KN, buckle did not show any
deformation or damage. After the tensile load was reached 7.43KN, the band broken but the buckle
still showed no deformation.
This buckle passed the tensile strength test, we certificate its
quality after inspection and approve for further usage.
