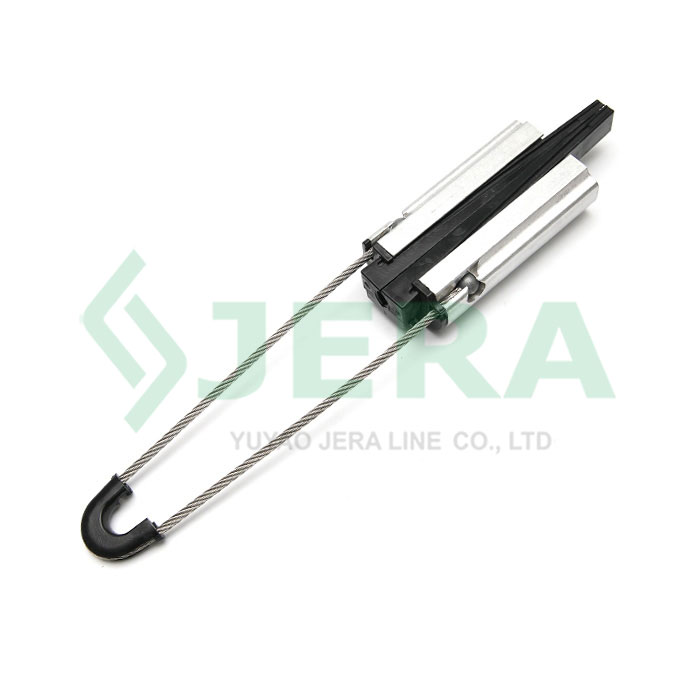

The low volatge ABC clamp PA-2200, also called wedge type anchor clamp, it’s developed to tension and anchor insulated messenger in low voltage overhead electrical distribution systems, up to 1 KV.
Technical specification
Product code
Cable size, mm2
Minimum breaking load (MBL), KN
PA-2200
1 x70-150
22
Components and Materials
The abc cable wedge clamp PA-2200, is manufactured by Jera Line, a Direct factory location in China , Jera has organized production process. The clamp consists of following main parts:
.png)
