1/4 inch strand wire guy-grip, is also called Dead-End Cable Grip, is an essential component in overhead power distribution systems, designed to provide a reliable and secure termination point for conductors. This product is particularly useful in ensuring the stability and longevity of electrical connections in various environmental conditions.
Key applications:
● Overhead Power Lines: used in overhead power distribution lines to terminate conductors; Designed for 1/4” conductors
● Industrial and Urban Distribution: Reliable Termination
● Renewable Energy Systems: Solar and Wind Installations
● Telecommunication Lines: Support and Stability

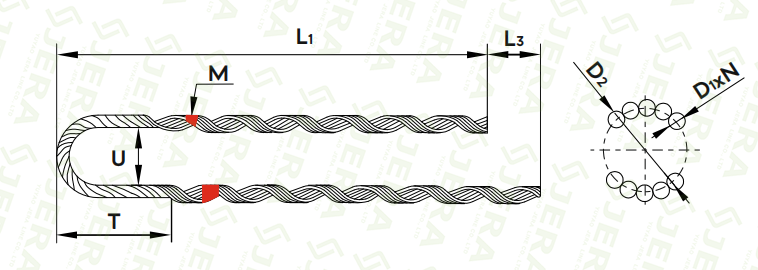

Technical specification
Product code
Conductor diameter, mm
Wire configuration
MBL
Length, mm
U size, mm
Color code
Rotation
JS-22T(1/4”)
6.0
2,2*5
24.8KN
570/600
35
Black
Left
Components and materials

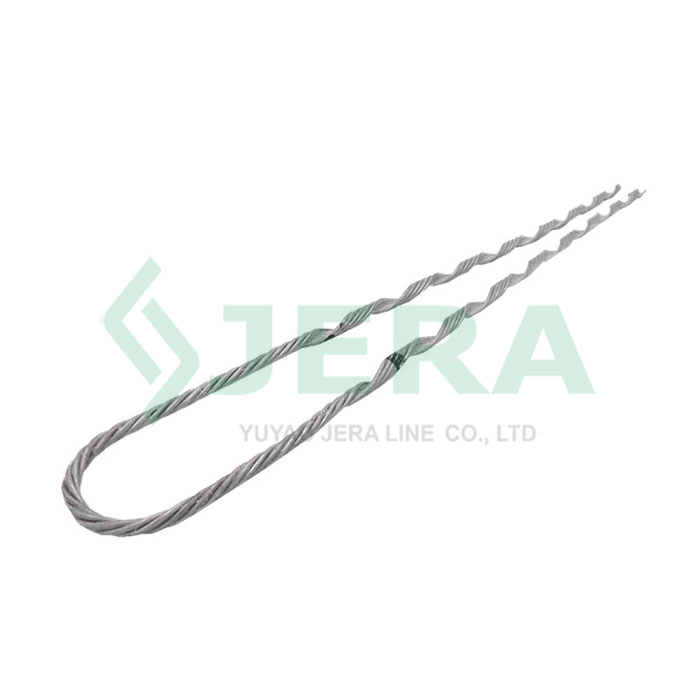

The JS-22T dead end clamp, is R&d by Jera Line factory, it doesn’t require any special tools for installation and can be mounted on wire strand rope directly.The configuration of preformed steel wire were calculated to minimize failure and retain the maximum rated strength. The products consist the following part:
By Jera’s laboratory. We have our own testing machine such as Tensile strength machine in laboratory to do daily inspection and routine test.
If the required conductor size is not the same, please send us your specification, we will check or develop exact product for your requirements, as Jera Line also provide customized solution.
