Fuse links for low-voltage networks are critical components in electrical distribution systems, designed to provide protection for electrical circuits operating at low voltages, typically under 1,000 volts. These fuse links act as a safety device
1. Key Features
• Overcurrent Protection: Fuse links are designed to break the circuit when the current exceeds a predetermined value, protecting the system from short circuits or overloads.
• High Breaking Capacity: These fuses are engineered to handle high fault currents, ensuring that they can safely interrupt severe overloads without damage to the surrounding equipment.
• Durable Materials: Typically made with a fusible metal alloy enclosed in a ceramic, glass, or polymer casing, these fuses are durable and designed for safe operation under extreme conditions.
• Easy Replacement: When a fuse link blows due to a fault, it can be easily replaced, restoring normal operation without requiring major repairs.
2. Types of Fuse Links
Fuse links come in various forms to meet different application needs:
• Blade-Type Fuses: Commonly used in automotive and some low-voltage electrical applications. They are compact and designed for easy replacement.

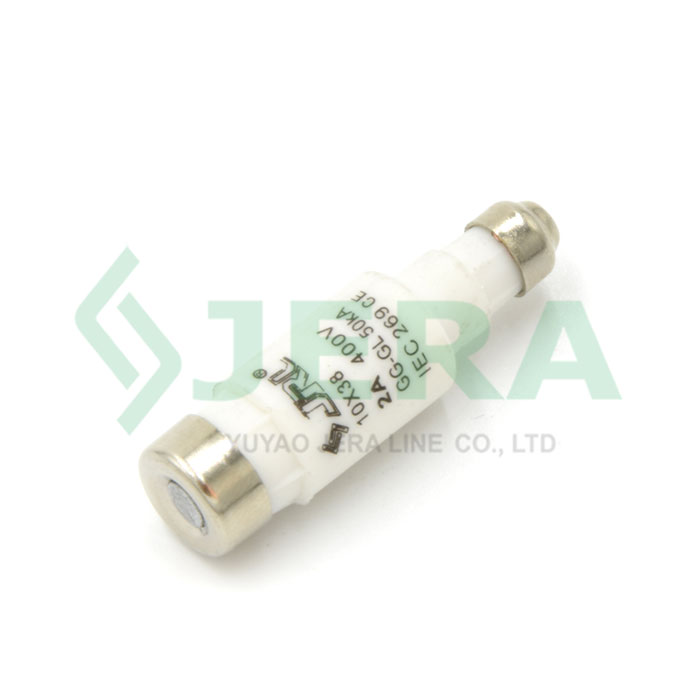

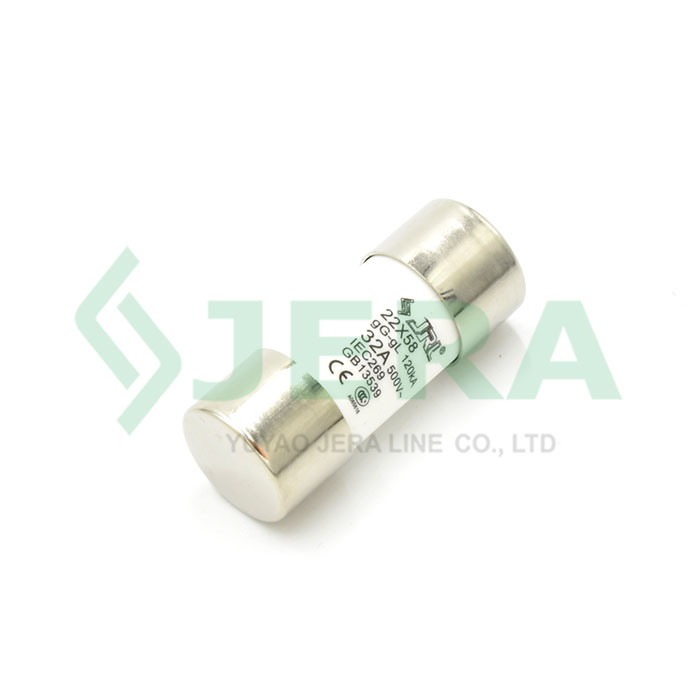

• Cylindrical Fuses: These are often found in residential and light commercial applications, offering reliable performance in systems with standard electrical loads.
• HRC (High Rupturing Capacity) Fuses: Known for their ability to interrupt very high fault currents, HRC fuses are often used in industrial systems where reliability and high protection are paramount.
3. Standards Compliance
Most low-voltage fuse links for low-voltage networks are built in accordance with international standards like IEC 60269 or local equivalents, ensuring compatibility with different electrical systems.
4. Application Range
• Distribution Boards in Residential, Commercial, and Industrial Buildings: Fuse links are most commonly used in distribution boards, where they protect circuits that distribute power throughout a building.
• Protection of Transformers, Capacitors, and Switchgear: In industrial environments, electrical systems often include transformers, capacitors, and switchgear, which manage the flow of electricity across complex networks. Fuse links ensure that if a fault occurs in any of these components, the system will be protected from further damage.
• Overcurrent Protection for Motors and Lighting Systems: Motors, such as those used in industrial machinery or HVAC systems, are vulnerable to damage from electrical faults. Fuse links provide essential protection to these motors, ensuring that they do not overheat or suffer damage during periods of excessive current. They are also critical in lighting systems, particularly in commercial spaces, where large numbers of lights are powered by a single electrical circuit.
