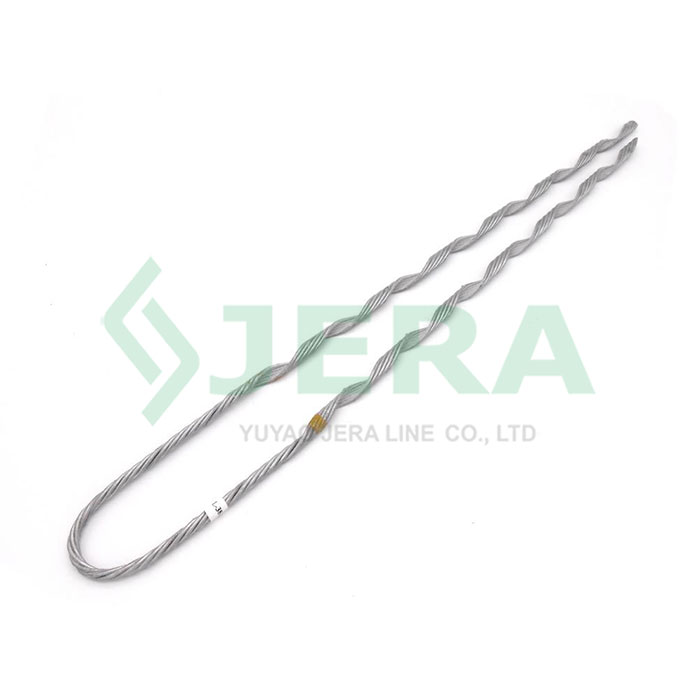

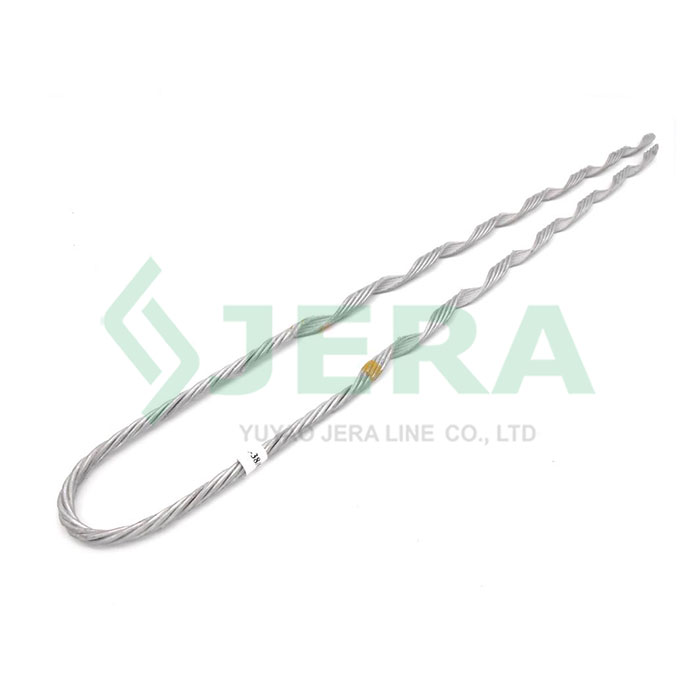

5/16 inch spiral wire guy-grip, is also called Helical spiral Dead-End, is designed for 5/16 inch conductors, is a specialized hardware component used in various utility and industrial applications to provide secure anchoring and support for guy wires. Its helical design ensures a firm grip on the guy wire, enhancing stability and safety in tensioning applications.
Key applications:
● Utility Pole Guying: Used in guying utility poles; Tension Management from wind and weight;
● Construction and Industrial Projects: Temporary Structures in constructions and Industrial guying;
● Renewable Energy Systems: Solar panels anchoring support for structures;
● Telecommunication Lines: Support and Stability.
Technical specification
Product code
Conductor diameter, mm
Wire configuration
MBL
Length, mm
U size, mm
Color code
Rotation
JS-38T(5/16”)
7.8
2,8*5
42KN
660/690
45
Yellow
Left
Components and materials
The JS-38T Dead-End Cable Grip, is produced by Jera Line direct factory, it only need hand installation and can be mounted on wire strand rope directly.The configuration of preformed steel wire grips were calculated to minimize failure and retain the maximum rated strength. The products consist the following part:
Components
Materials
Body
hot-dip galvanized steel
Dimensions
Test
Formed wire spiral grips JS-38T has as undergone rigorous Mechanical properties & performance validation in Jera line in-house laboratory, it has passed tensile test by Tensile strength machine. Jera’s laboratory, there are testing equipment to fulfill daily inspection and routine test, we can provide with a factory test report if it’s required.
