Holding tool for mechanical bolted lugs (14-42 mm), JTN-10

Holding tool for mechanical bolted lugs JTN-10 either called Clamp device for screwconnector

Features

Used for both bolted connectors and cable lugs
Wide application diameter 14 to 42 mm
Jera line lugs and connectors up to 400 mm2
Voltage up to 1000AC and 2000DC
Proven clamping system
High quality materials, for low temperatures application -40 °C, and high temperatures up to 50 °C

DESCRIPTION

TEST

REVIEW

Application

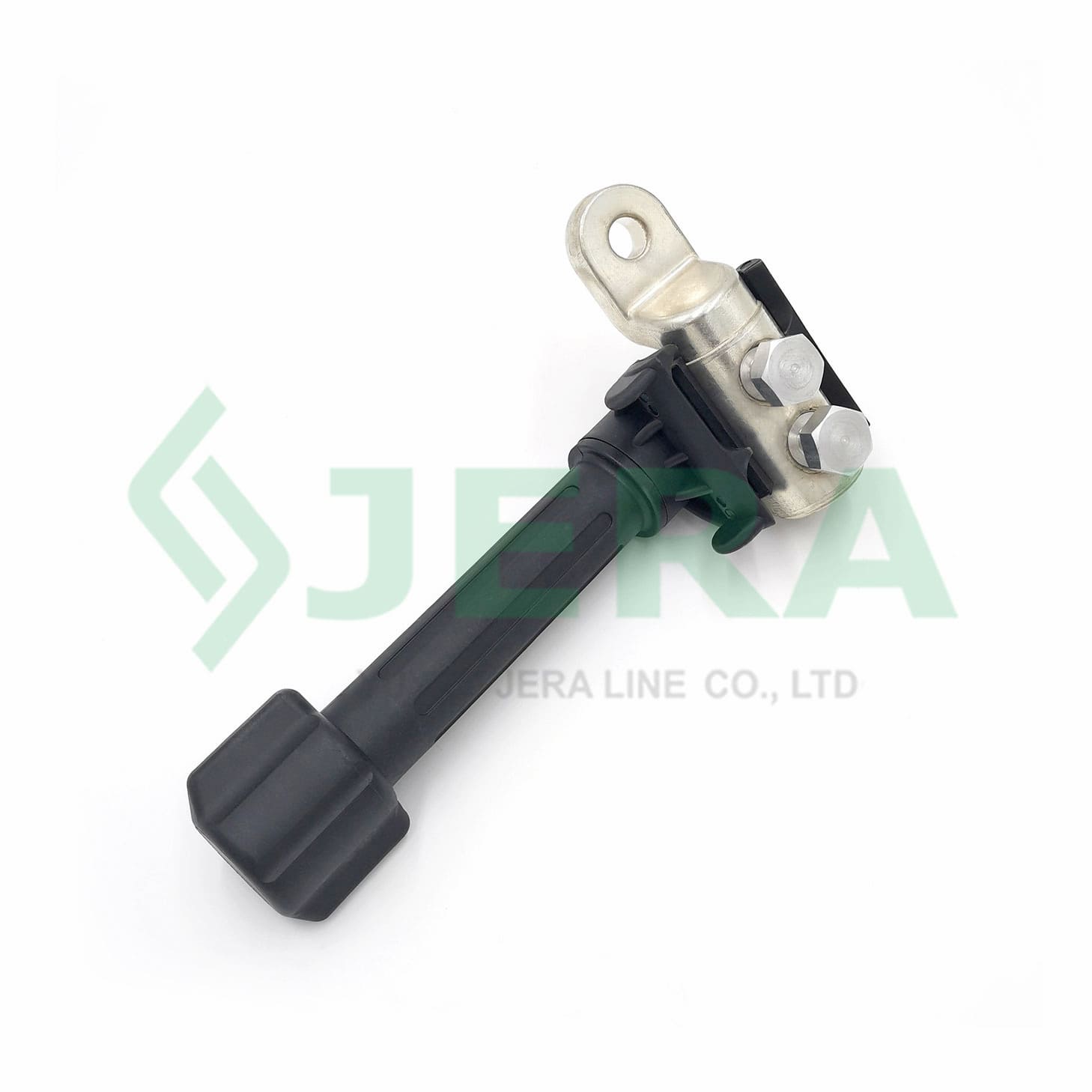

The mechanical bolt lug retention tool JTN-10 is designed to hold the bolt lug securely inplace and preveom loosening or falling out . The toos mainly used in power cable area , underground and indoor joints and mechanicaassembly for connecting power cables , wires and stud lugs.It is a device to hold mechanical cable lugs and connectors during theapplication.Its designed for convinient installation.

Technical specification

Product code	Connector outer diameters , mm	Application	Material
JTN-10	14-42	Mechanical cable lugs and connectors 4-400 sqm	Stainless steel,UV resistant plastic

Components and materials

The mechanical bolt lug retention tool JTN-10 is made of a durable material , They usually Include a clamping deviceor arm to securely hold the lug in the desired position.Mechanical lug installation tool isalso equipped with a rotation or adjustment function to better accommodate differetypes of lugs and installation requirements.
