The low voltage ZOP-9.22 IPC connector with surge arrester is designed to equipped with a threaded hole for M8 bolt surge arrester, use in low voltage power distribution systems (0.6/1 kV) to protect voltage.
The connector can be installed on insulated with bare to insulated cable Al 16-120 mm² / Al 16-95 mm².
Technical specification
Product code
Cable size, mm2
Torque, N*m
Main
Tap
ZOP-9.22(L)
16-120
16-95
20
Components and materials
Surge arrester insulation piercing connector ZOP-9.22 is manufacturered by Jera Line, a direct factorylocation in China,the IPC consissts of the following main part:
Components
Materials
Body cover
UV resistance polymer
PG clamp perforated with teeth
Aluminum
Bolts, washers
Stainless steel

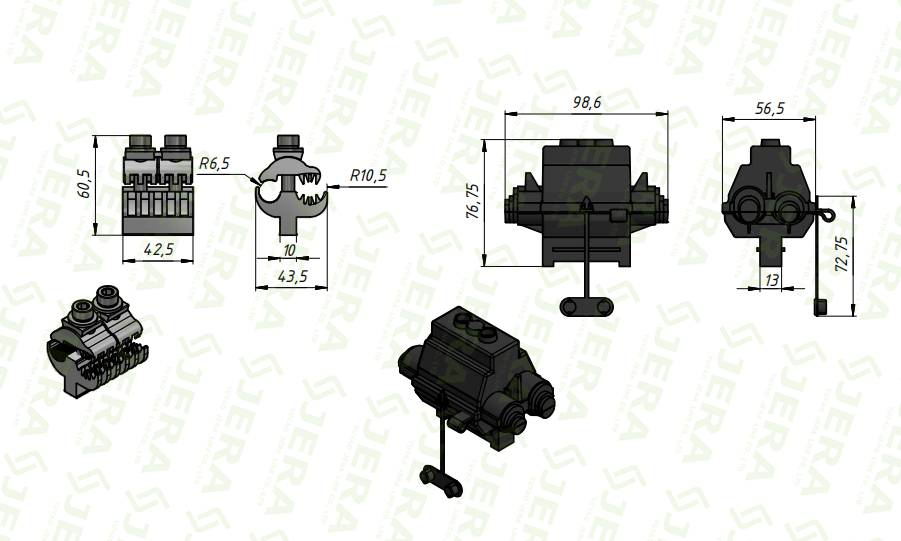

Dimensions
Test
The low voltage Piercing Connector for surge arrester ZOP-9.22 for overhead lines meets the EN 50483-4 international standard, ensuring high quality and safety requirements. Jera Line uses its in-house laboratory testing facilities to ensure consistent quality control:
Testing Capabilities
Short-Circuit Overcurrent Testing Machine: Used for performing dielectric voltage tests in water, confirming the connector's durability and insulation integrity under high-current conditions.
Temperature & Humidity Aging Equipment: Conducts UV and temperature aging tests, simulating prolonged exposure to environmental factors to ensure reliable long-term performance.
Additionally, Jera Line can provide a factory routine test report upon request, demonstrating compliance with standards and thorough quality assurance.
