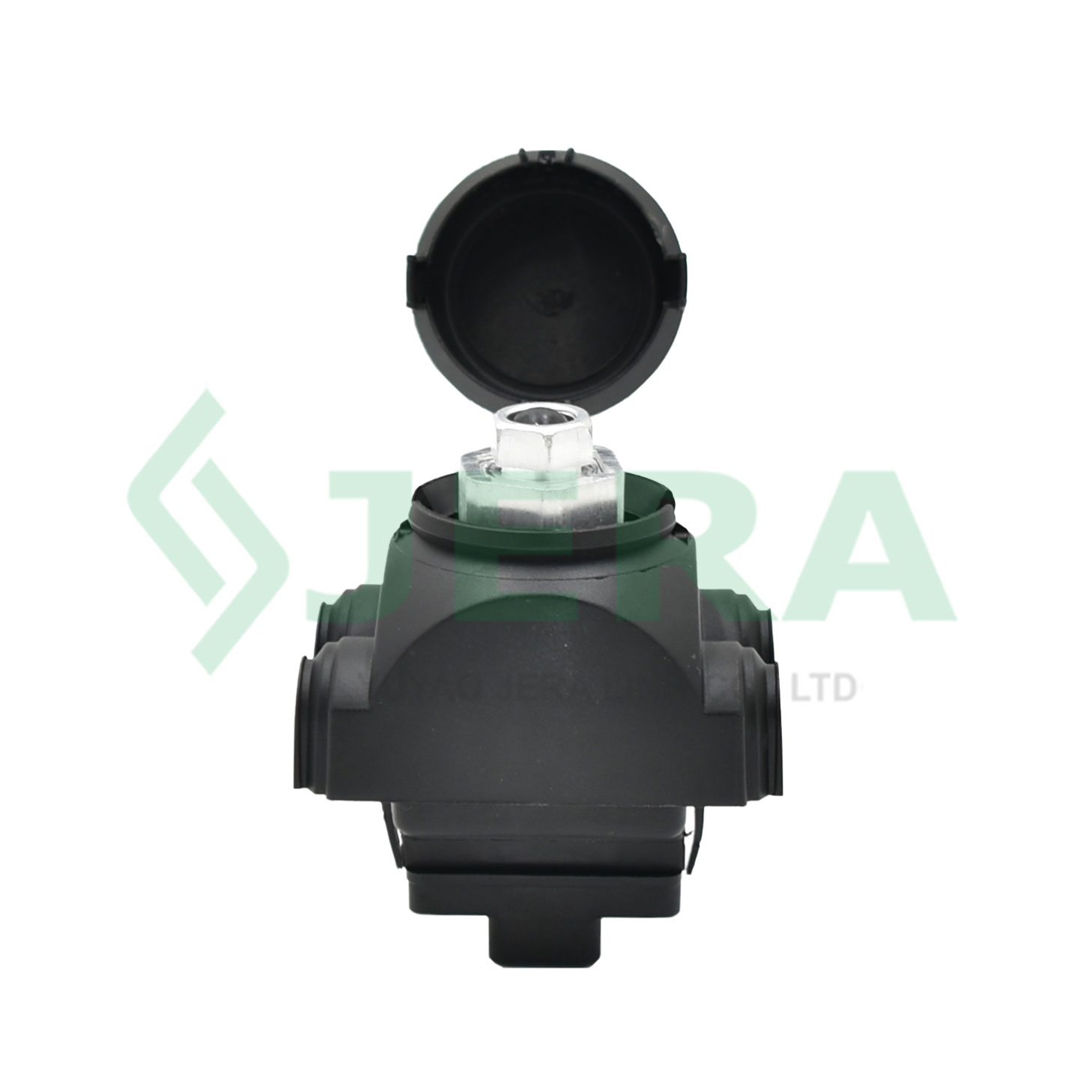

Insulation Piercing Terminal Connector ZOP-22N (LX) for Insulated and Bare Cable is developed to connect main and branch conductors, such as aluminium insulated- copper insulated cables, as well as bare-bare cables, or insulated-bare cables up to 1KV, it is class A2 connector.
Lifeline design, the shear head is insulated from the bolt and the connector body. Equipped with shear head insert.
Technical
specification
Product code
Cable size, mm2
Torque, N*m
Main
Tap
ZOP-22N(LX)
10-95
1.5-70
20+-2
Components and materials
Insulation Piercing Electrical Connector ZOP-22N (LX) for Insulated and Bare Cable, is manufacturered and Research and Design RnD by Jera Line, a direct factory location in China ,the bare piercing connector consissts of the following main part:
Components
Materials
Insulation cover
UV resistance two components insert molding of composite polymer and elastomer
Contact plate
Tin coated Aluminum
Bolt
Stainless steel
Nut
Aluminum alloy

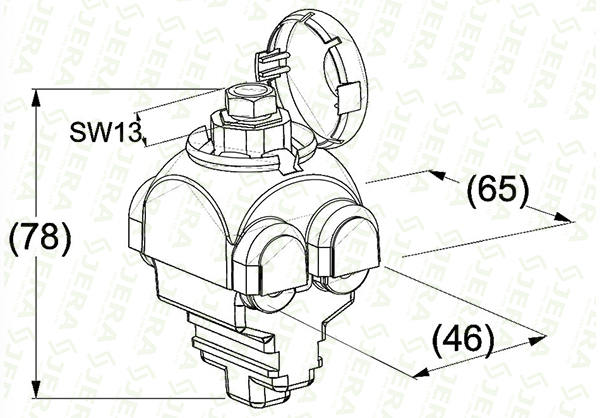

Dimensions
Test
Insulated and bare cable Insulation Piercing tap Connector ZOP-22N (LX) has passed regular routine
test by Jera line factory laboratory according to EN-50483:4 standard, the test scopes are as
following:
l
Visual examination
l
Dimensional and material verification
l
Test for permanent marking
l Connector bolt tightening test
l
Shear head function test
l
Dielectrical voltage test in water
