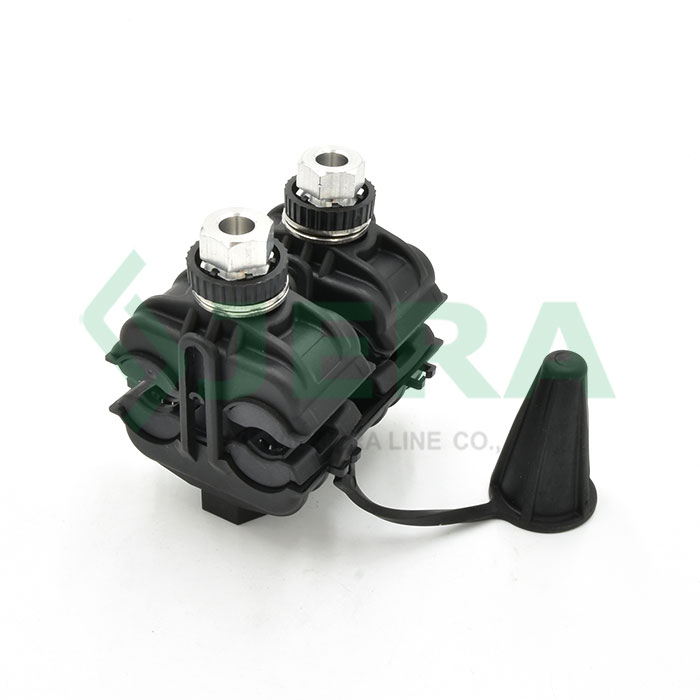

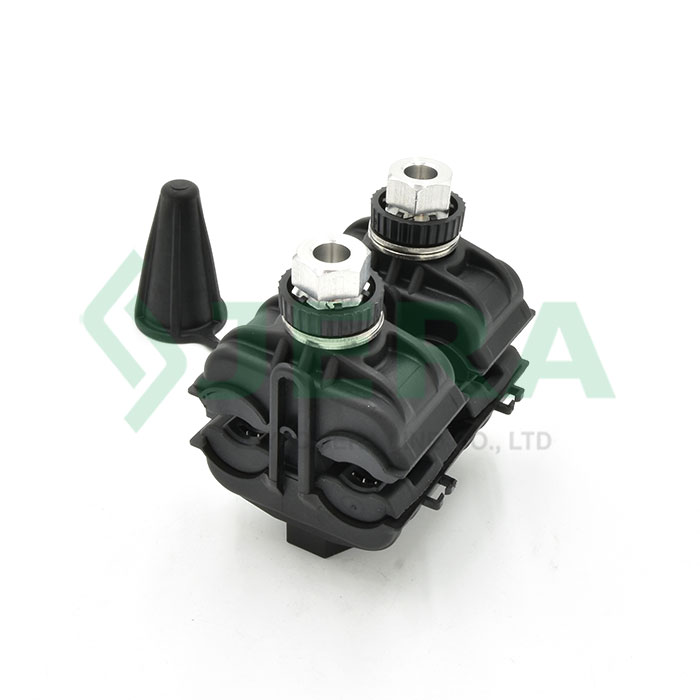

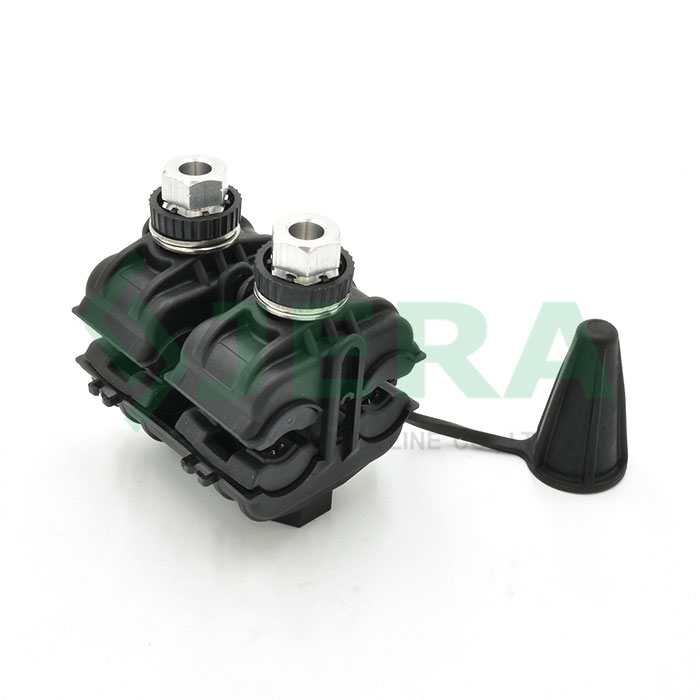

Insulation Piercing Connector ZOP-262 (70-240-70-240), also called middle voltage ABC piercing connector, is intended to branch two of insulated service power line cable from one main power cable line
Features
Shear head bolt torque, happens once torque reaches required force
Extra teeth for middle voltage applications up to 20KV
Applied for MV ABC insulated cables up to 20KV.
Waterproofed two-bolt insulation piercing connector applied with different cables, which are
compatible to required cable size.
Technical specification
Product code
Main line sqm
Branching, sqm
Torque, N*m
ZOP-262
70-240
70-240
18
Components and materials
Made of UV resistant thermoplastic, plastic
shear head but, aluminum tin covered teeth, the piercing connector ZOP-262 is very durable
and easy for installation with a wide application area. Such as low voltage electrical cable
lines, street lightning, last mile buildings, houses.
The middle voltage cable connector ZOP-262
provides the simulations connection from main to branch cable line. The application of
piercing connector reduce the labor time, and damages or insulation of main cable.

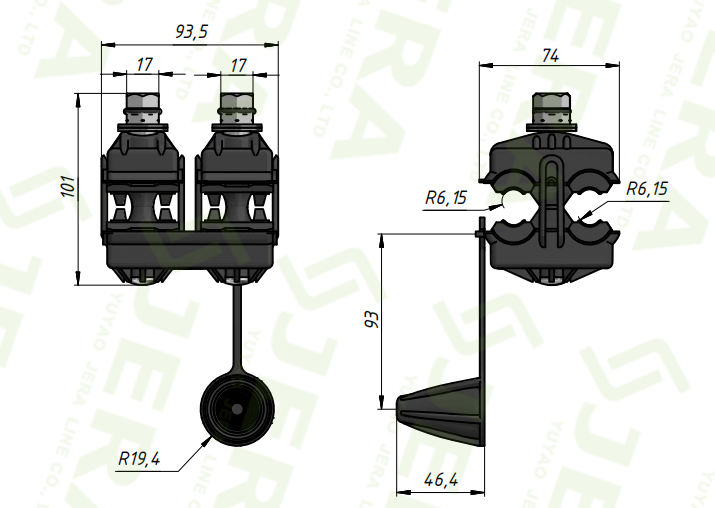

Dimensions
Test
Dielectrical voltage test in water EN 50483-4:2009
clause 8.1.3.1
Cables: 25 smq and 150 smq.
Test scope:
The dielectric strength test was applied, installed
on cables 25 mm and 150 mm, with cut end cup. The product was putted into water tank under 30
cm, and 6 KV voltage was applied through.
Conclusion: According to standard the product had passed the test, no damages appeared.

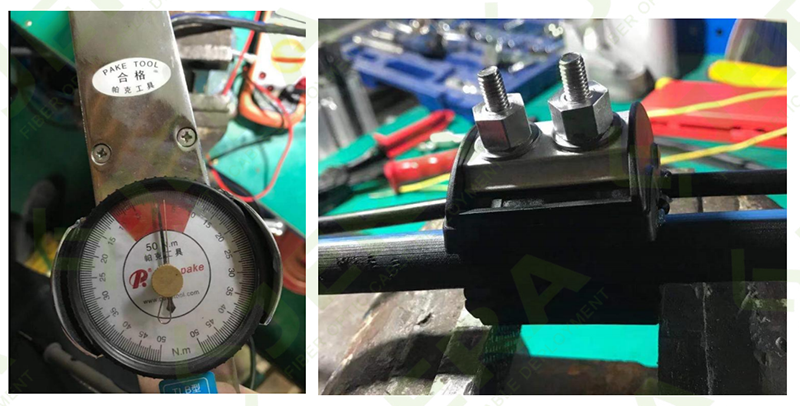

Shear head torque and cable puncture test:
Conclusion: according to standard the mentioned product had passed the required tests in above.
We certificate its quality after inspection and approve for further usage.
