Insulated cable piercing connector, 95-300/95-300 mm2 piercing connector with tin covered AL contact, Copper cable and Aluminum cable usage, Overhead line tap connector up to 15kv.
Features
Wide cable application size 95-300mm2
Easy and fast installation, no need to peel the jacket
The ABC cable insulation piercing connector ZOP-395 is
developed for branching the insulated service electrical cable from main electrical cable up to
15KV, the installation is very convinient and fast, without cutting the jacket of power cables,
the Application temperature - 30 °C up to 70 °C.
Technical
specification
Product code
Cable size, mm2
Torque, N*m
Main
Tap
ZOP-395
95-300
95-300
21
Components and materials
Power cable piercing connector ZOP-395, is manufacturered and Research and Design RnD by
Jera Line, a direct factory location in China,the IPC consissts of the following main part:
Components
Materials
Body and Seal
UV resistance two components insert molding of composite polymer and elastomer
Contact plate
Tin coated Aluminum
Bolt
stainless steel
Nut with shear-head
Aluminum alloy
Washer
Stainless steel
End cap
PP

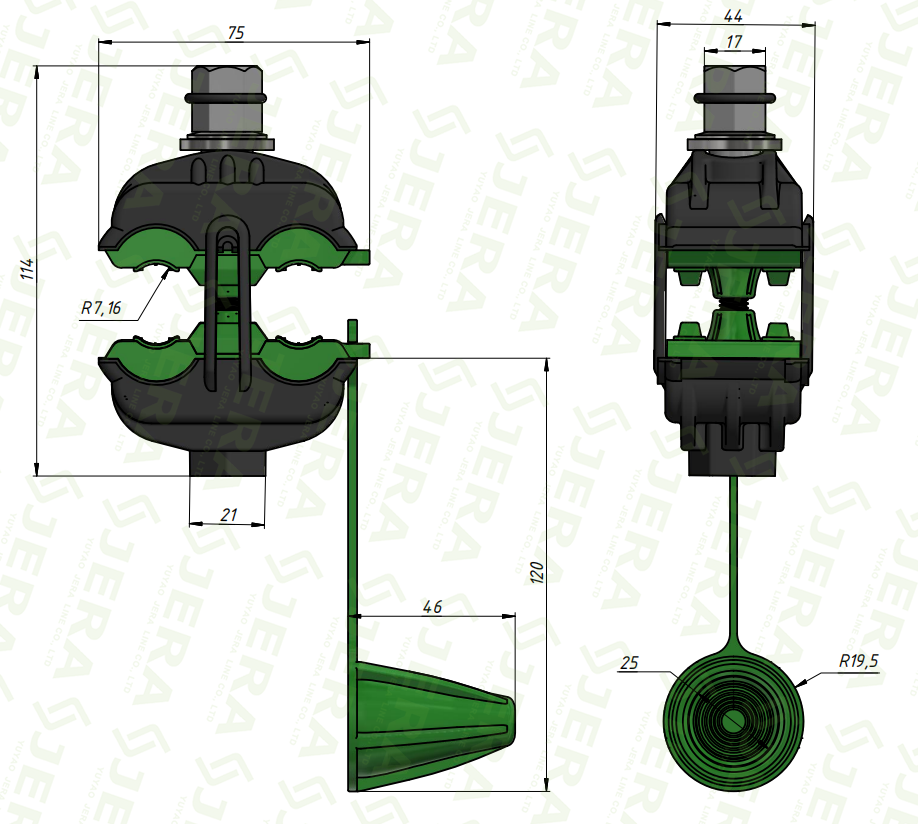

Dimensions
Test

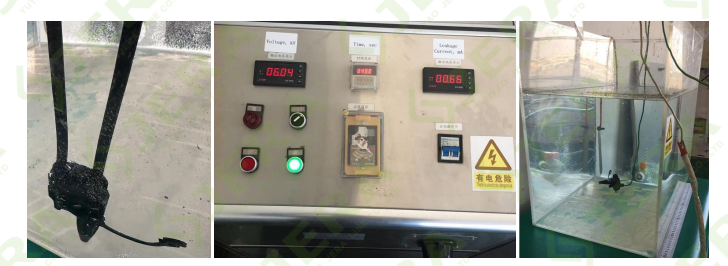

Electric Cable insulated Piercing Clamp ZOP-395 has passed regular routine test by Jera line
factory laboratory according to EN-50483:4 standard, the test scopes are as following:
l
Visual examination
l
Dimensional and material verification
l
Test for permanent marking
l
Connector bolt tightening test
l
Shear head function test
l
Dielectrical voltage test in water
l
Electrical ageing test
