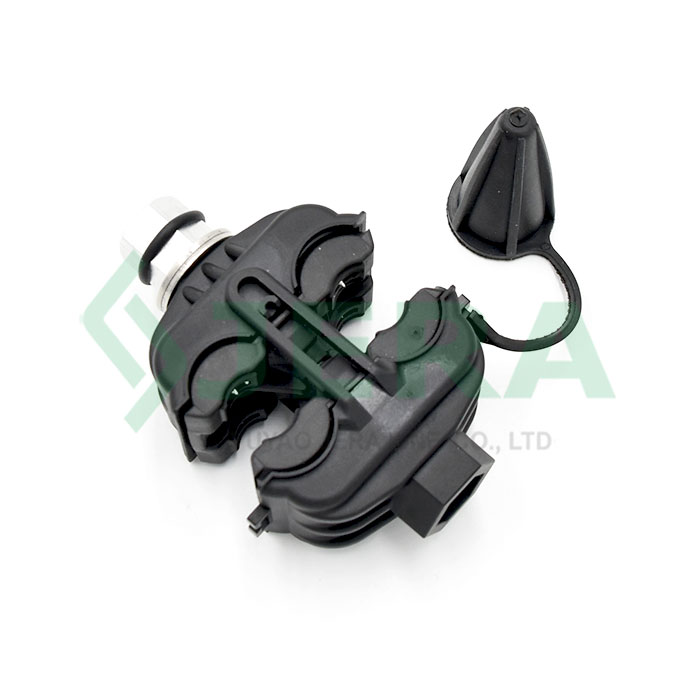

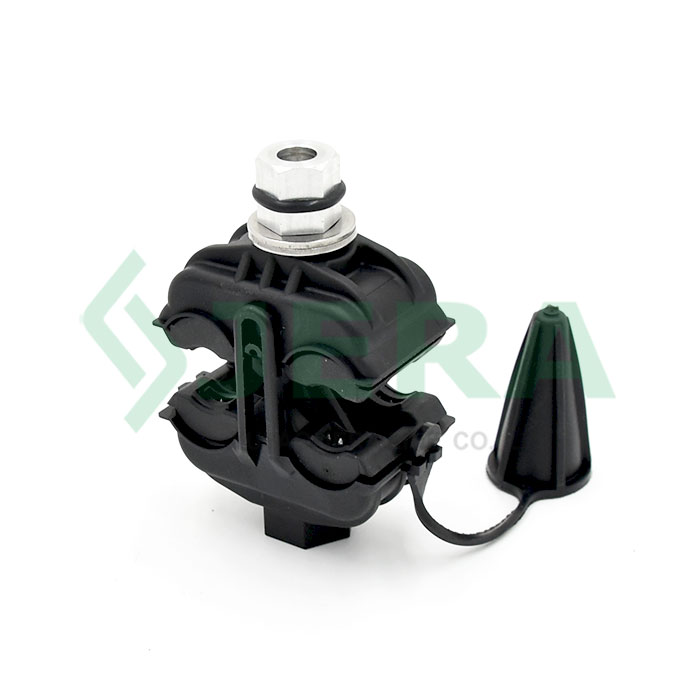

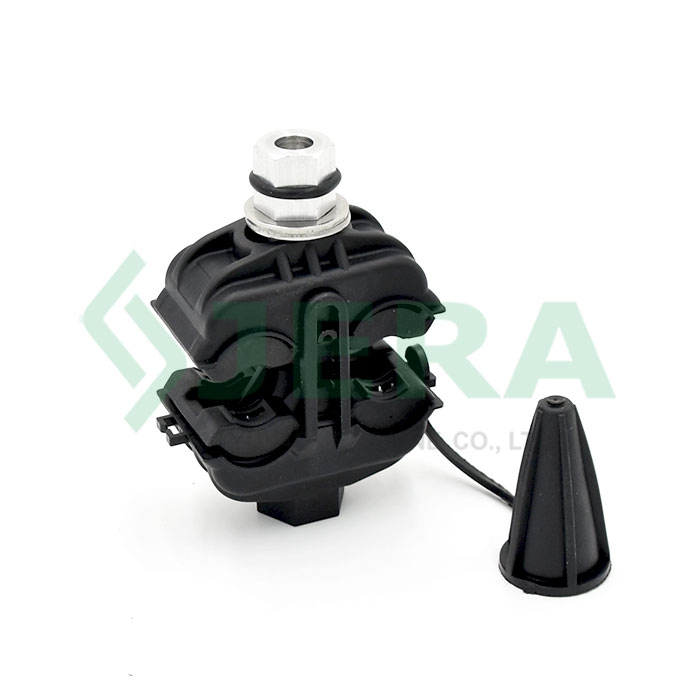

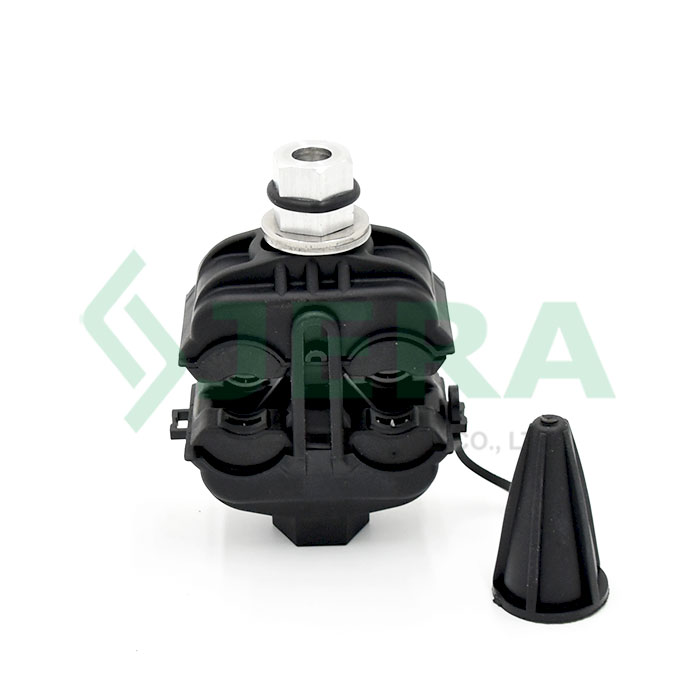

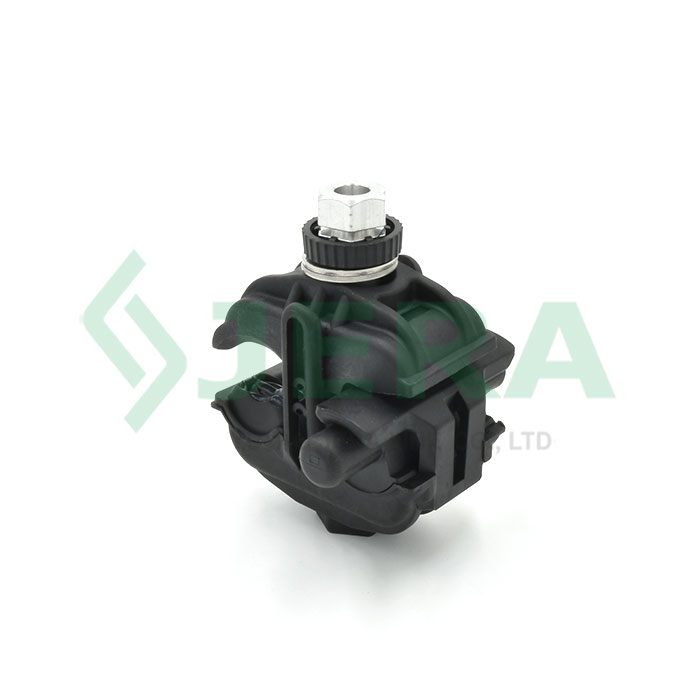

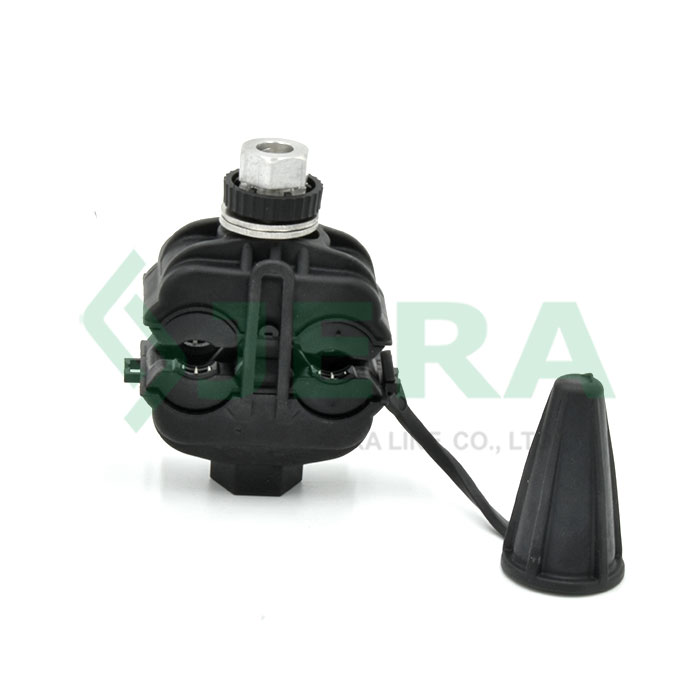

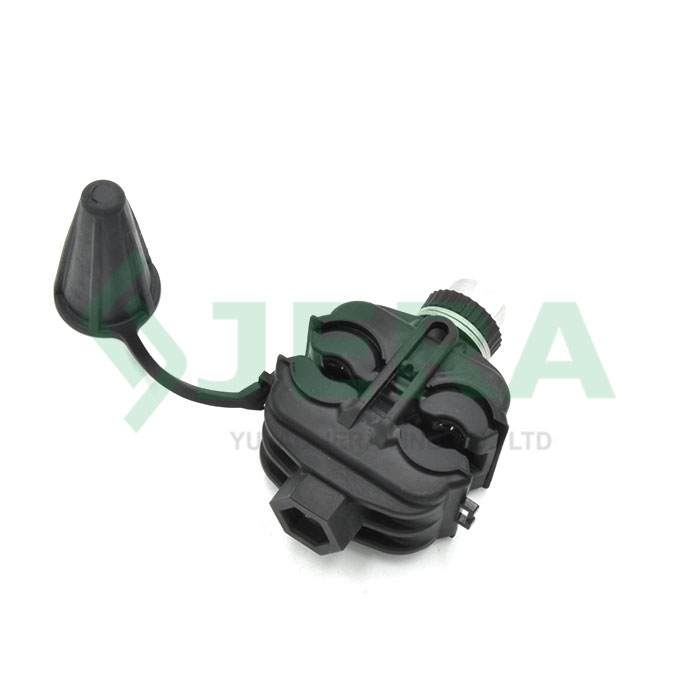

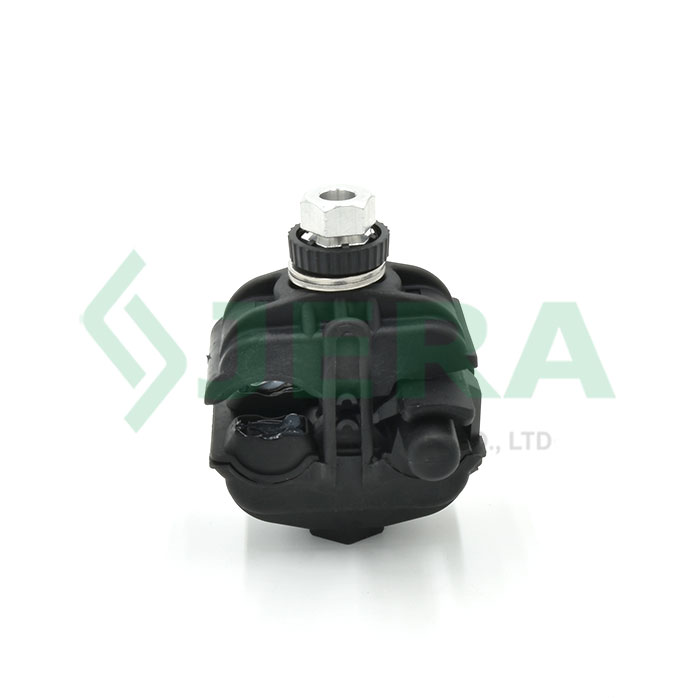

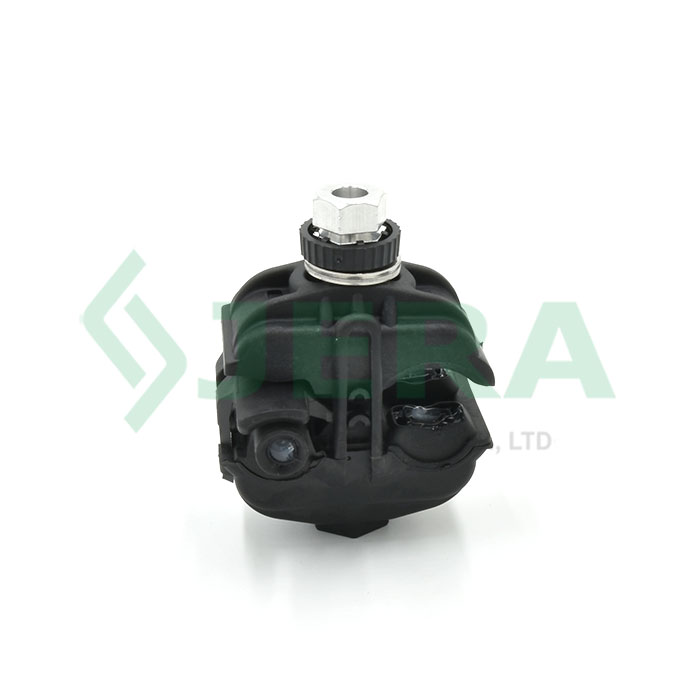

Insulation Piercing Connector ZOP-62

Insulation Piercing Connector ZOP-62, either called Insulation piercing clamp is developed to branch the insulated service electrical line from main electrical line, without cutting the sheath of main

Features

UV-resistant and waterproof materials
Convenient to install without cutting the jacket
Outdoor usage for construction applications like buildings, street lights

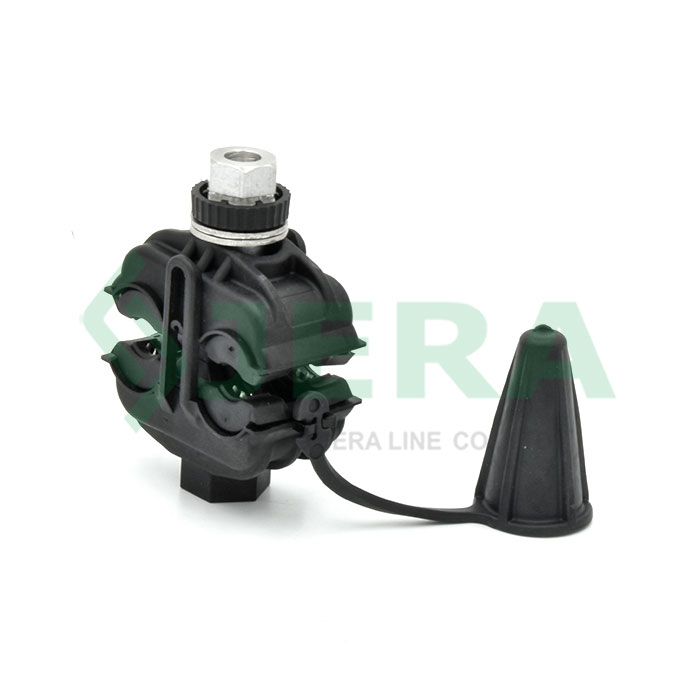

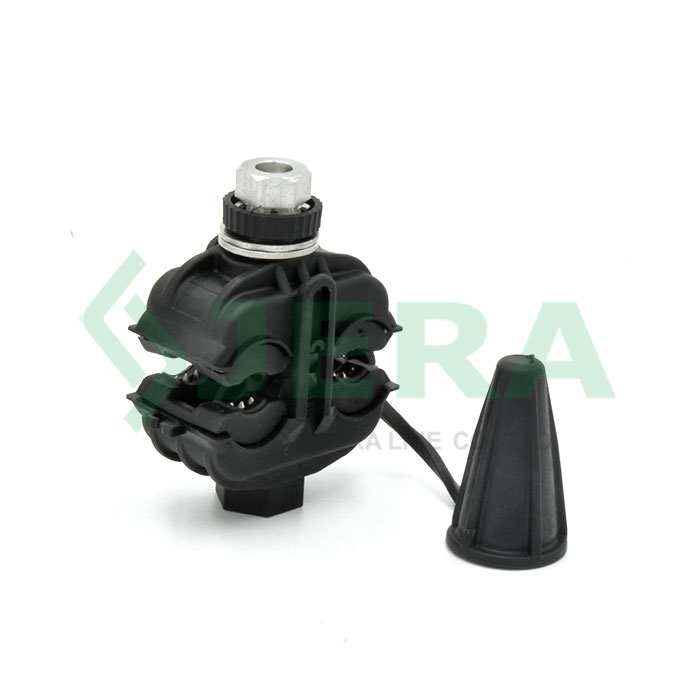

Captive and flexible end cups
Manufacture according to the standard: EN50483-4:2009
IPC supplier/factory direct price

DESCRIPTION

TEST

REVIEW

Application

Low voltage cable connector ZOP-62 can be used on cable lines up to 1000Vac (1000 V). Waterproofed two-bolt insulation piercing connector applied with different cables, which are compatible to required cable size.

Technical specification

Product code	Main line, mm2	Branch line, mm2	Torque, N*m
ZOP-62	70-240	70-240	18

Components and materials

INSULATED SHELL

Material :

Thermoplastic Polyamide 66 with FiberglassAdvantages : Strong enough and not easy to break , anti-corrosionanti-aging , long life , etc

TORQUE NUT BOLTS

Washer , Nut :

Hot Dip Galvanized SteelFuse nut : Zinc alloyBolts : 8.8 grade or higher grade customized

CONNECTING BLADES

Blades material :

Copper , Brass , or Aluminum tin platedTin plated for good electrical conductivity and effective oxidation prevention .Grease : Silica gel.

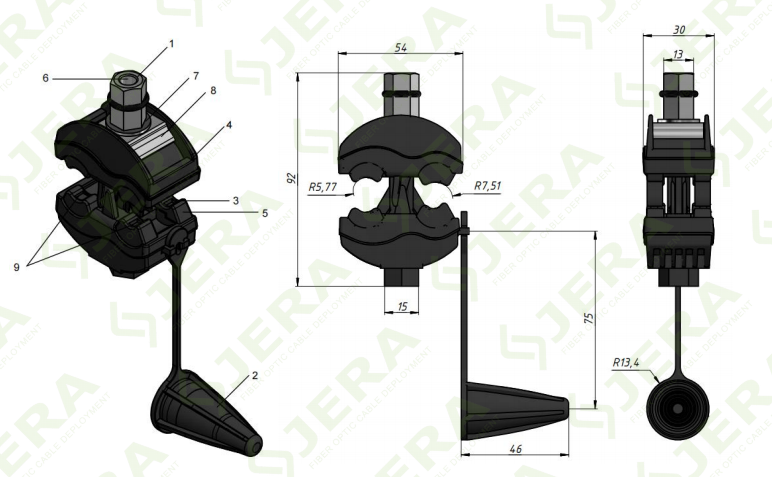

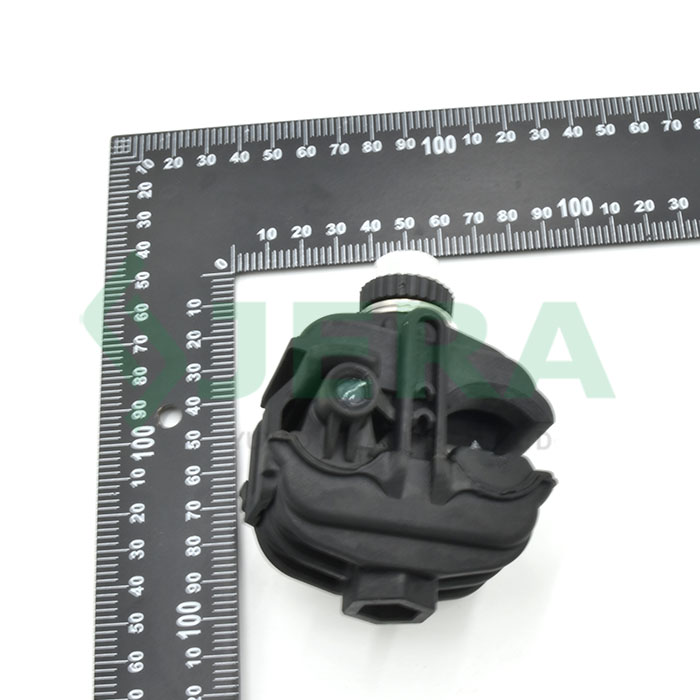

Dimensions

Test

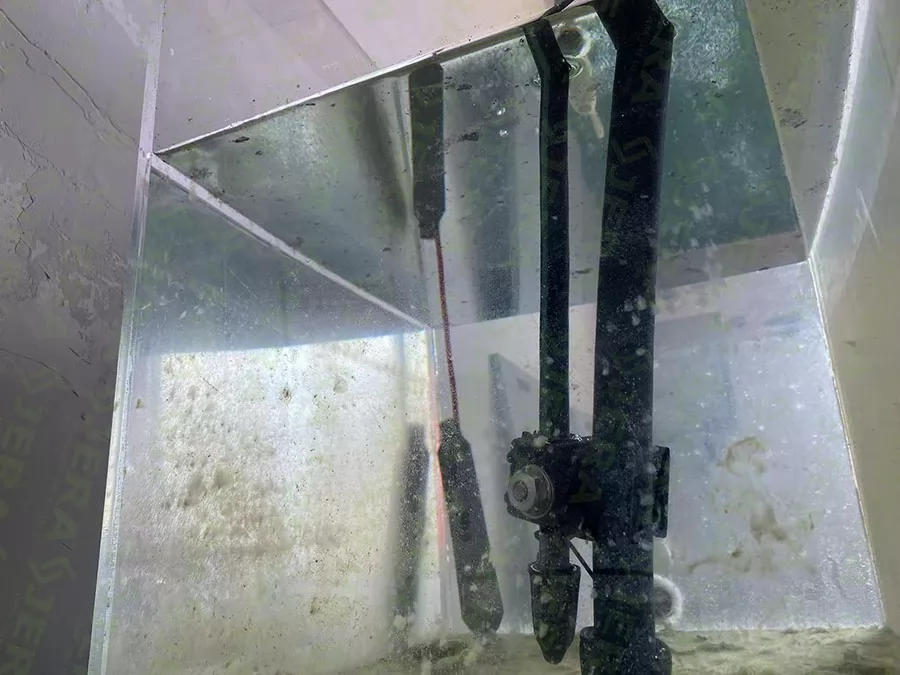

All the assemblies passed the tensile tests, operation experience with temperatures ranging from – 30 °C up to +50 °C test, dielectrical voltage test in water, temperature cycling test, aging test, corrosion resistance test etc. We produce this Insulated piercing clamp according to the test standard EN50483-4:2009. It successfully applied to many foreign
