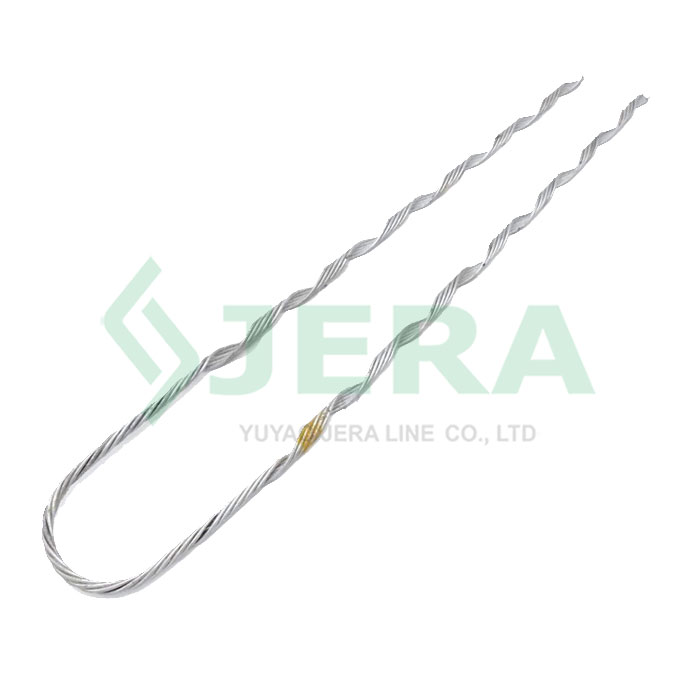

Insulator Stranded wire Guy grip JS-38I

5/16 inch cable dead end guy grips, Preformed Guy Grip Dead End Grip for insulator, JS-38I-(2.8*5)-7.8

Features

Hand Installation: Fast operation without tools required
Compatibility with insulator
Improved Friction: Uses sand and glue to enhance friction
Great Performance in Tensile Strength
Color-Coded: Allows quick identification of conductor sizes
Produced in a direct factory located in China

DESCRIPTION

TEST

REVIEW

Application

The JS-38I Insulator Stranded Wire Guy Grip is a specialized preformed wire grip designed for securing stranded wires to insulators in various overhead line applications. Manufactured by Jera Line, these grips are engineered to provide a secure, reliable connection while maintaining the integrity of the wire and the insulator.

Key applications:

● Overhead Power Lines: Used to secure stranded wires to insulators in power line systems, ensuring reliable electrical distribution and structural stability.

● Utility Poles:Essential in securing guy wires to insulators on utility poles, preventing movement and ensuring the structural integrity of the pole under tension.

Technical specification

Product code	Conductor diameter, mm	Wire configuration	MBL	Length, mm	U size, mm	Color code	Rotation
JS-38I(5/16”)	7.8	2,8*5	42KN	660/690	45	Yellow	Left

Components and materials

The JS-38I preformed Dead-End Cable Grip, produced by Jera Line's direct factory, is designed for easy hand installation and can be directly mounted on wire strand ropes. Its preformed design ensures that the grip maintains maximum rated strength while minimizing the risk of failure. Below is a detailed breakdown of the components and materials used in the construction of this reliable product:

Components	Materials
Body	hot-dip galvanized steel

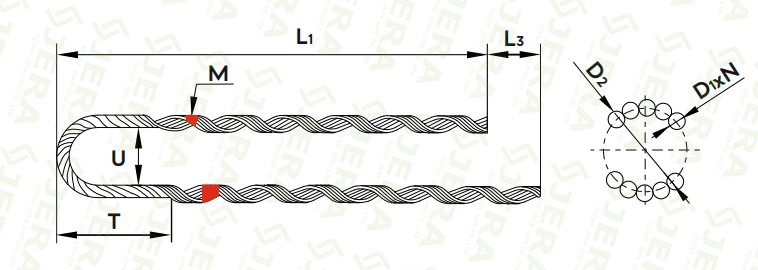

Dimensions

Test

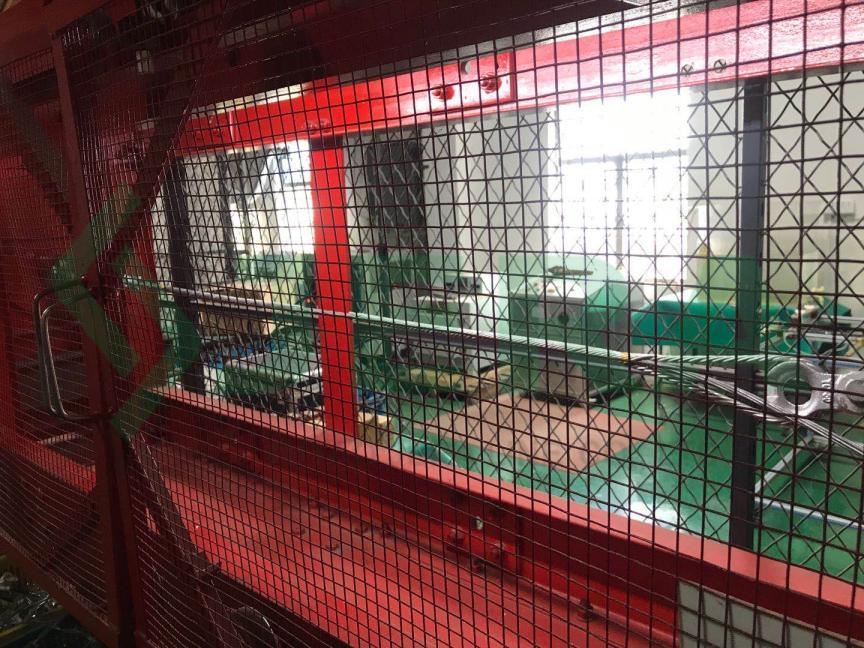

JS-38I preformed Dead-End Cable Grip has as undergone rigorous Mechanical properties & performance validation in Jera line in-house laboratory, it has passed tensile test by Tensile strength machine.

Jera’s laboratory has the complete range of testing equipment to proceed the testing of helical formed dead ends. We focus on the quality and complete range of steel formed grips, which includes: dead-end guy grips, Strand guy grips, suspension grips and so on.

We can provide with a factory test report if it’s required.
