Low Voltage Cable Clamp, PA-157- JERA LINE

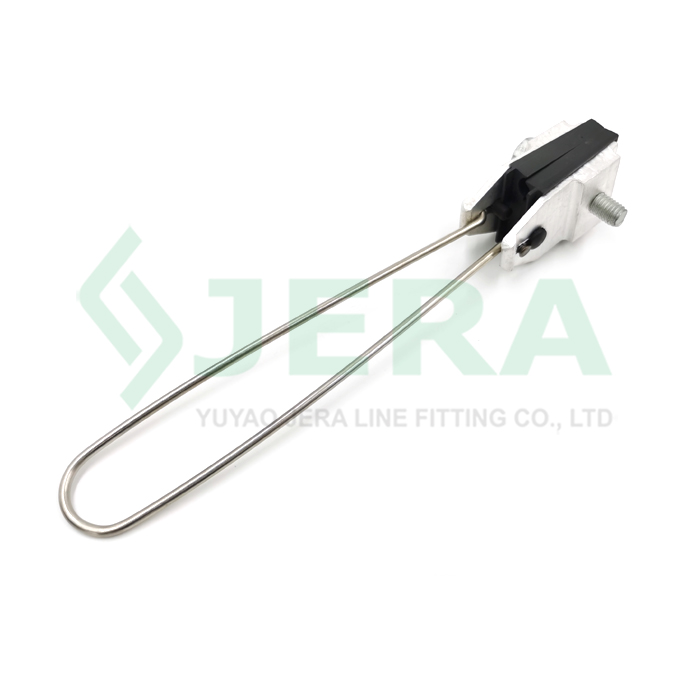

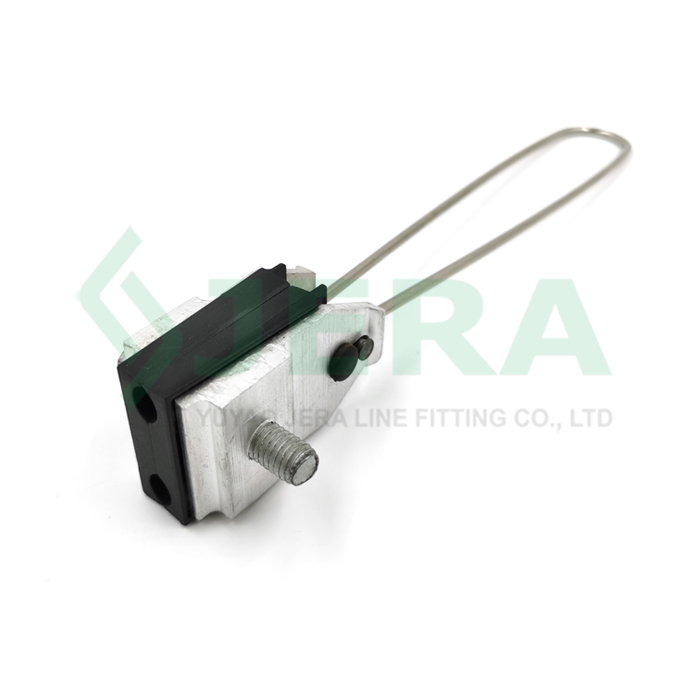

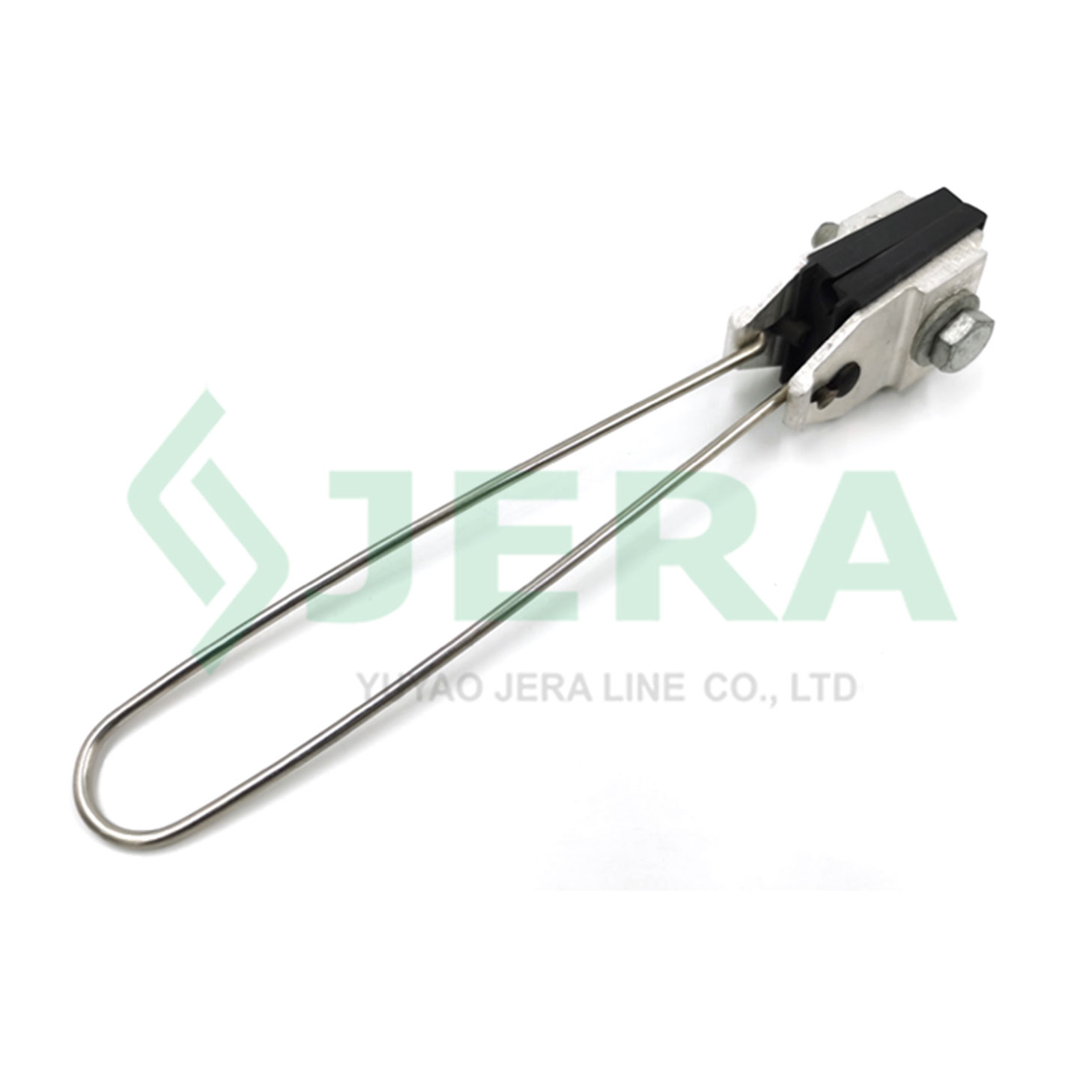

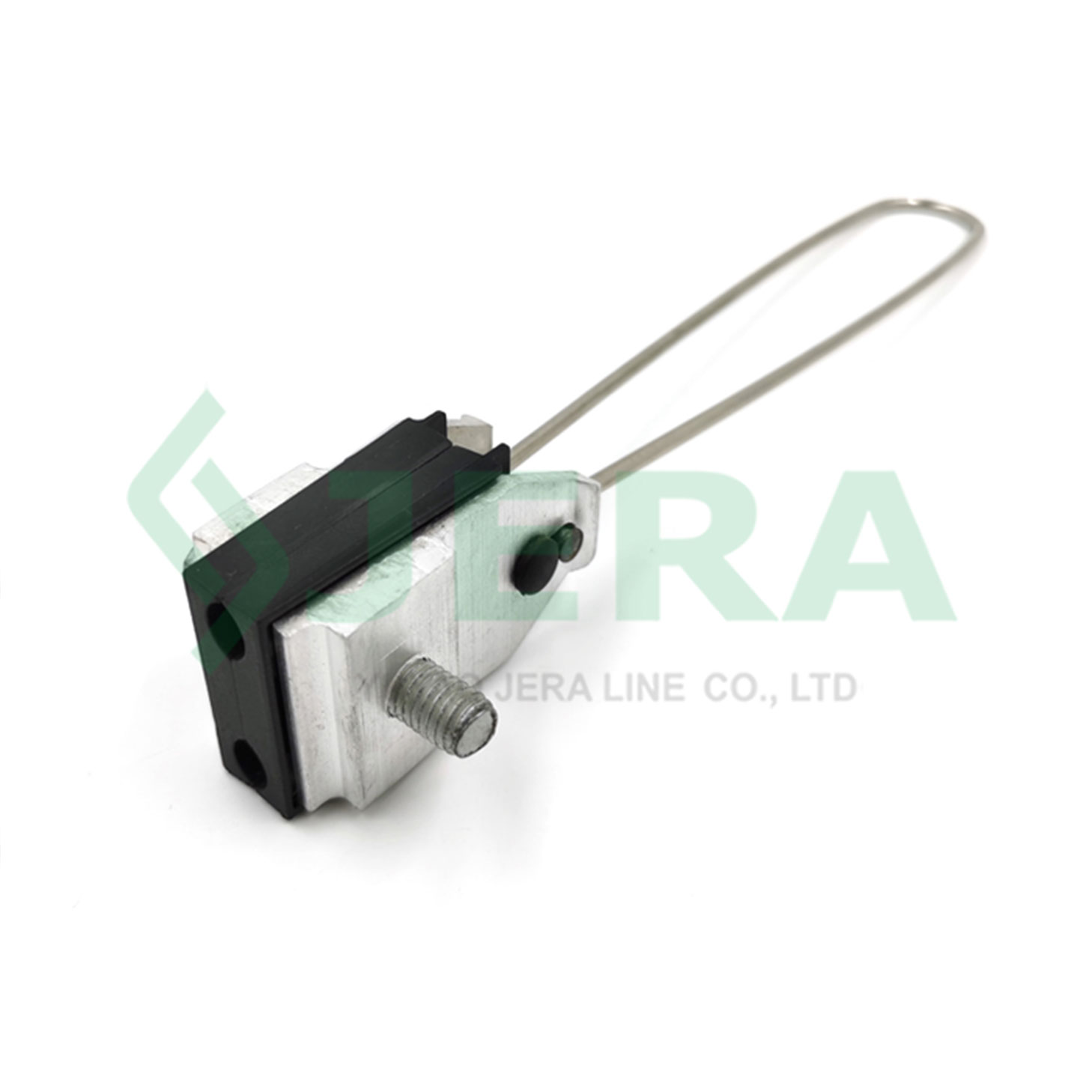

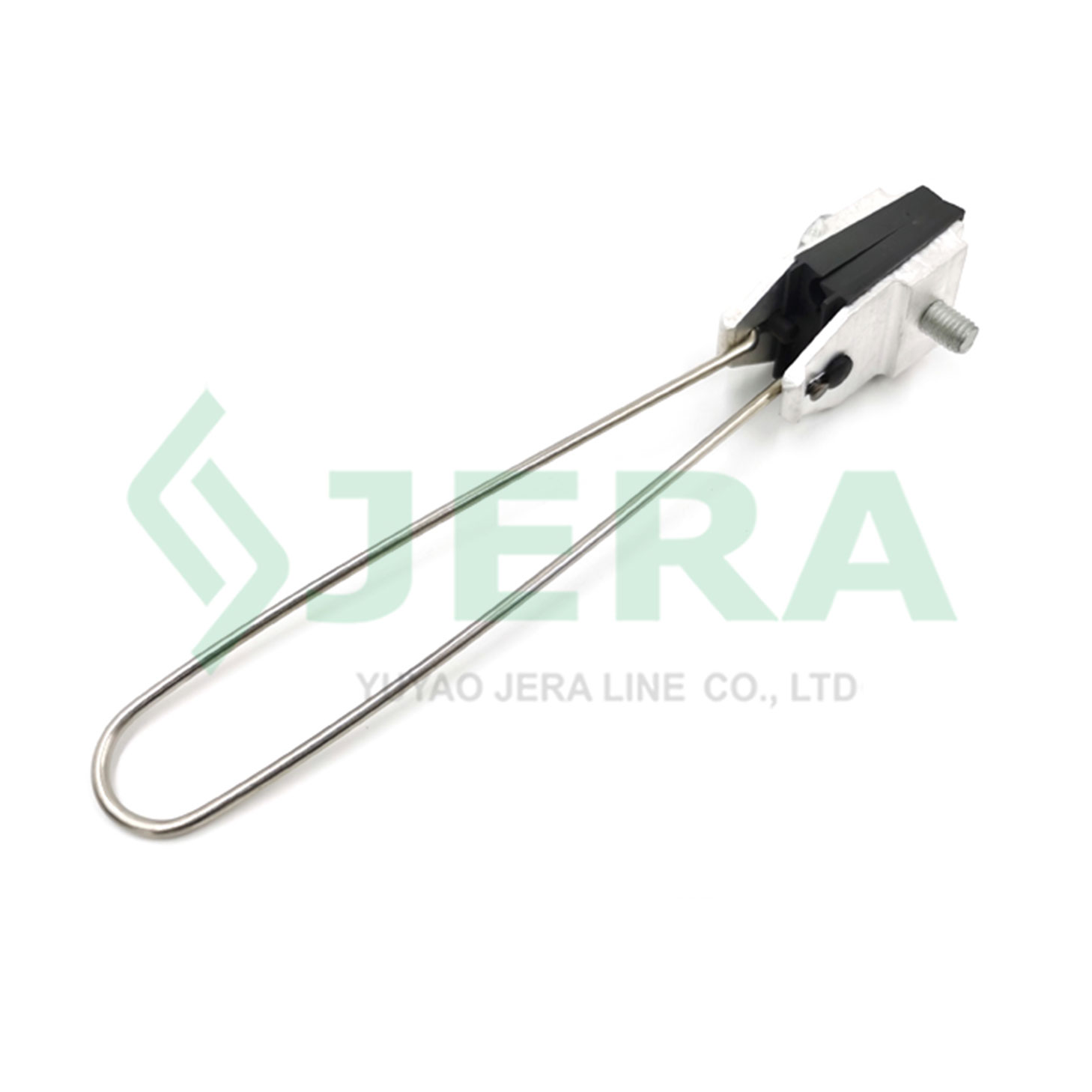

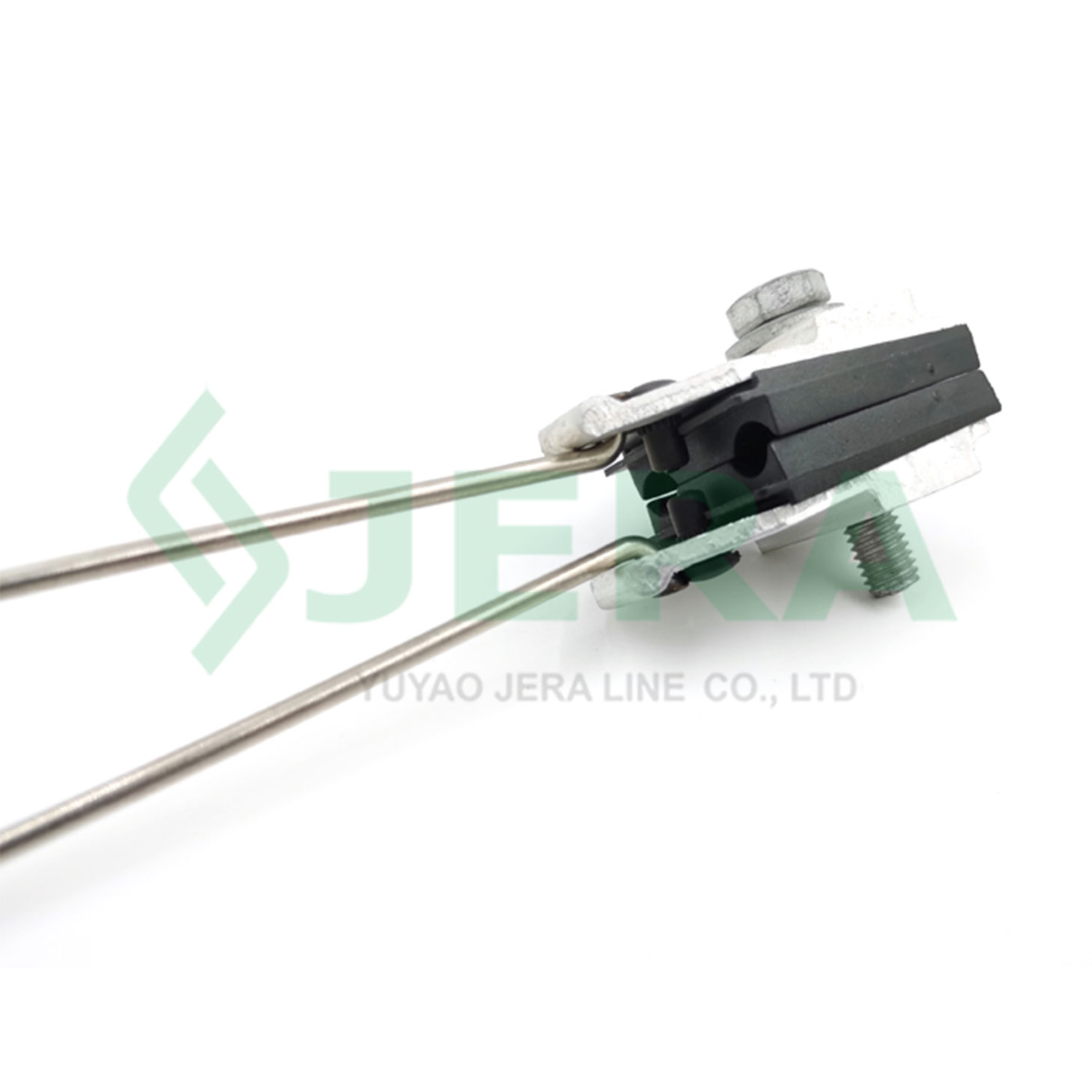

Low Voltage Cable Clamp,PA-157

2 cores ABC cable anchor clamp, 16-35 mm2, Low voltage tension clamp

Features

Compact size and easy operation
Galvanized steel, aluminum and UV resistant materials, durable
Great mechenical strength
Superior environment stability
Competitive price

DESCRIPTION

TEST

REVIEW

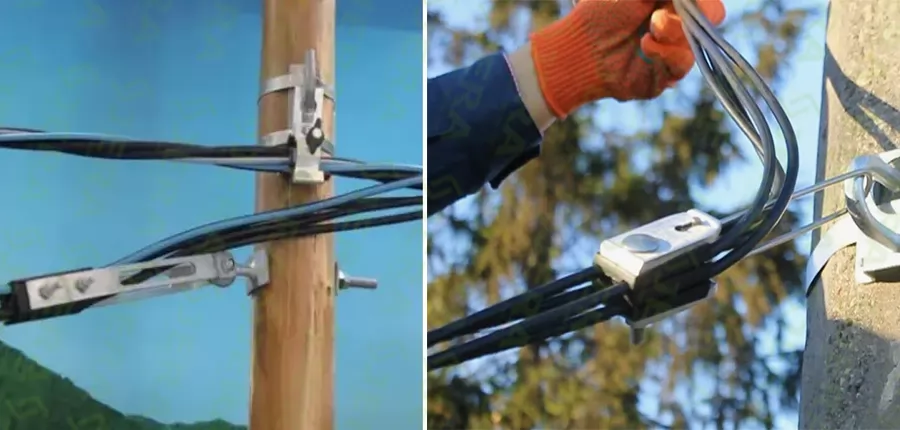

Application

Low voltage cable tension clamp PA-157, it’s developed to anchor insulated service line with 2 conductors in aerial self-supporting low voltage ABC system, up to 1KV.

Technical specification

Product code	Cable size, mm2	Minimum breaking load (MBL), KN
PA-157	2x10-50	7

Components and materials

Electrical cable tension clamp PA-157 . The clamp consists of following main parts:

Components	Materials
Hanger	Galvanized steel
Body	Insulating plastic and steel pin and screw

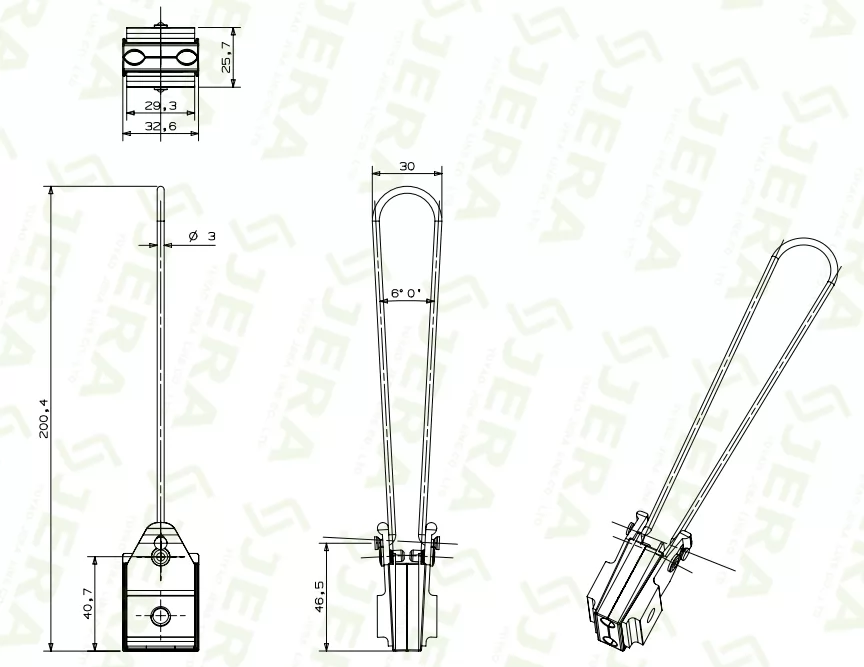

Dimensions

Test

The PA-157 bolted clamp has undergone rigorous Mechanical properties & performance validation by Laboratory Testing Equipments as following:

The testing scope is: Tensile strength machine for Maximum tensile strength
