Low voltage Insulation Piercing Connector ZOP-50

Low Voltage Overhead Line Insulation Piercing Connector, 16-120/1.5-16 mm2, tin coated copper teeth, UV resistant material

Features

Easy and fast installation, without need of peeling the insulation jacket
Tin covered copper teeth materials in IPC, allows them to apply with both AL and CU cables
UV resistant material, durable
Sstainless steel bolt and washer, which prevents rust and corrosion
Factory laboratory routine test report avaiable according to standard EN 50483
Competitive price, factroy location in China

DESCRIPTION

TEST

REVIEW

Application

Low voltage overhead wire piercing connector ZOP-50 is suitable for a variety of applications in electrical distribution and power transmission systems.

Including:

· To branch the insulated ABC cable in overhead power lines

· Applied in street lighting installations to connect power cables to lighting fixtures

· Ideal for use in solar plants strings connecting

Technical specification

Product code	Cable size, mm2		Torque, N*m
ZOP-50	Main	Tap	11
	16-120	1.5-16

Components and materials

Aerial Low Voltage Cable Piercing Connector ZOP-50, is manufacturered and Research and Design RnD by Jera Line, a direct factory location in China who can provide Initial product guarantee,the IPC consissts of the following main part:

Components	Materials
Body and Seal	Heat and UV resistance two components insert molding of composite polymer and elastomer
Contact plate	Tin coated Copper
Bolt	stainless steel
Nut with shear-head	Aluminum alloy
Washer	Stainless steel
End cap	UV resistance Polypropylene

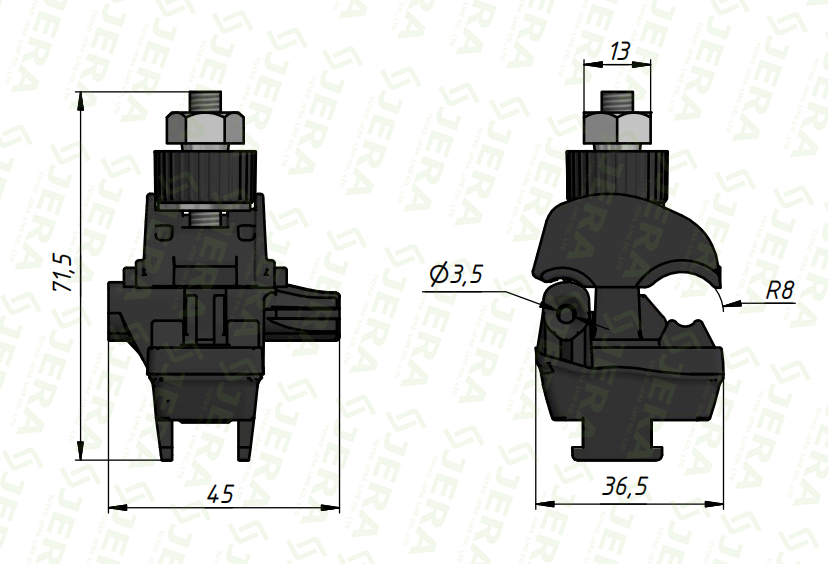

Dimensions

Test

Power Cable Insulation Piercing Connector ZOP-50 has regular routine test by Jera line factory laboratory according to EN-50483:4-2009 standard, the test scopes are as following:

· Visual examination

· Dimensional and material verification

· Test for permanent marking

· Connector bolt tightening test

· Shear head function test

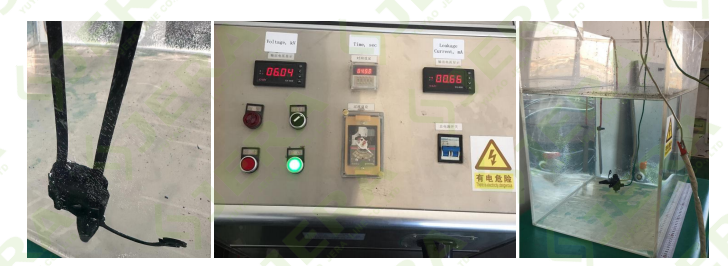

· Dielectrical voltage test in water

· Electrical ageing test
