The
wedge type clamp, for 4 cores self supporting insulated cables,
self-adjustable wedges will tension and hold cable well without insulation damaging. Related
pole brackets, cross-arm and hooks are available in jera line product range.

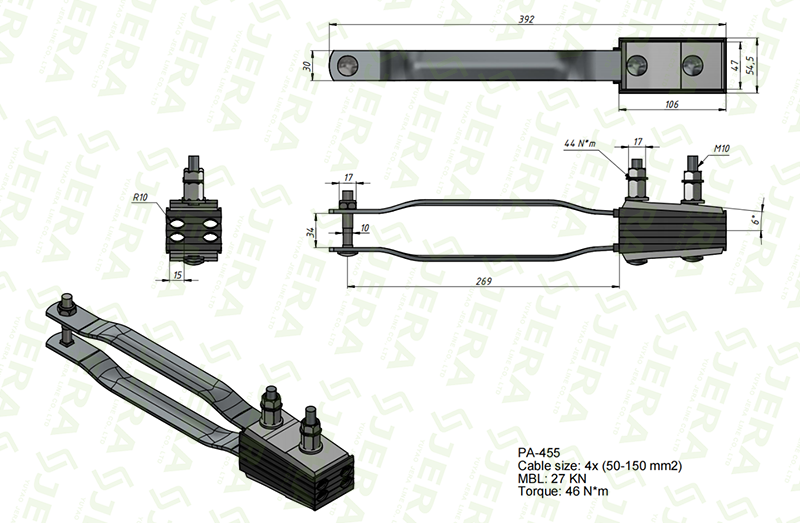

Technical specification
Product code
Cable size, mm2
Minimum breaking load (MBL), KN
PA-455
4x50-150
27

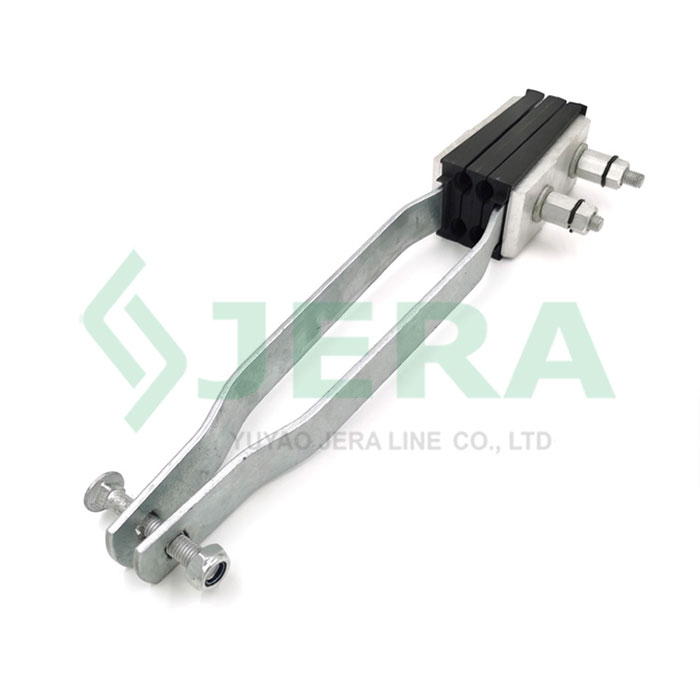

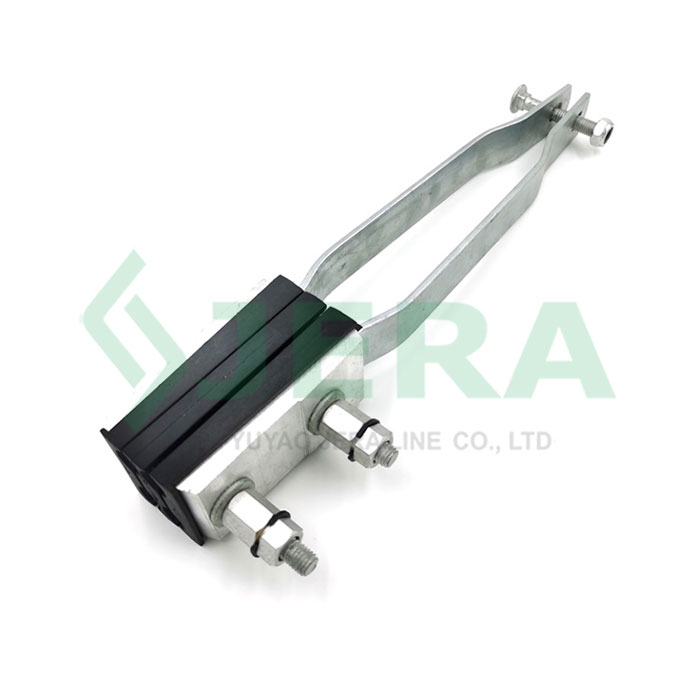

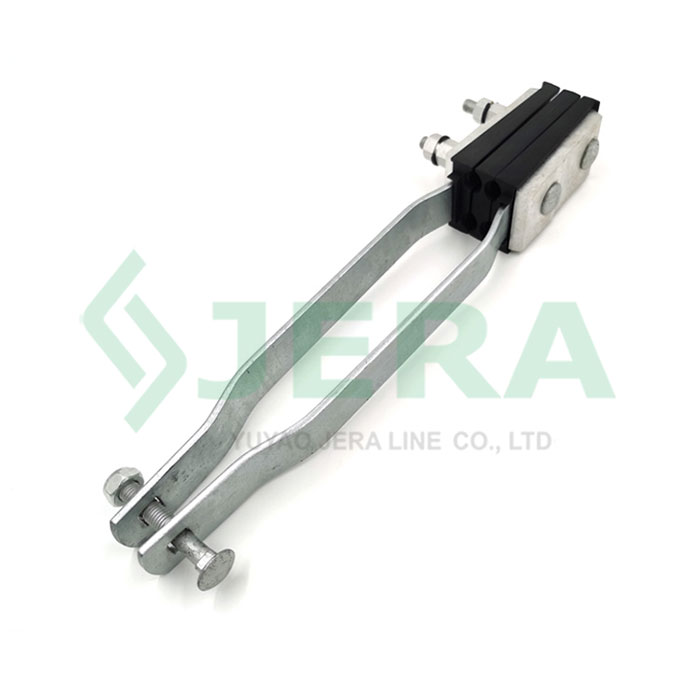

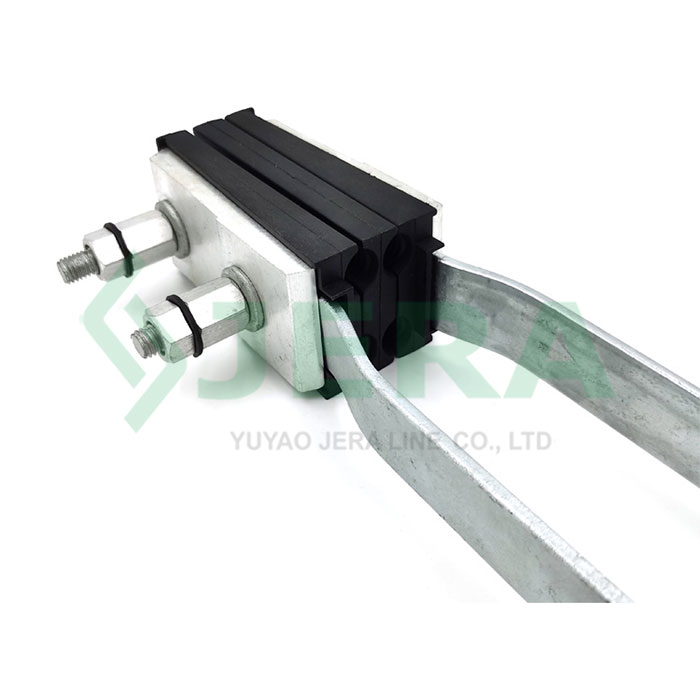

Components and materials
ABC cable
tension clamp, is manufactured by Jera
Line,
Location in China
,
a small factory with small
brand cost cut. The clamp consists of following main parts:
