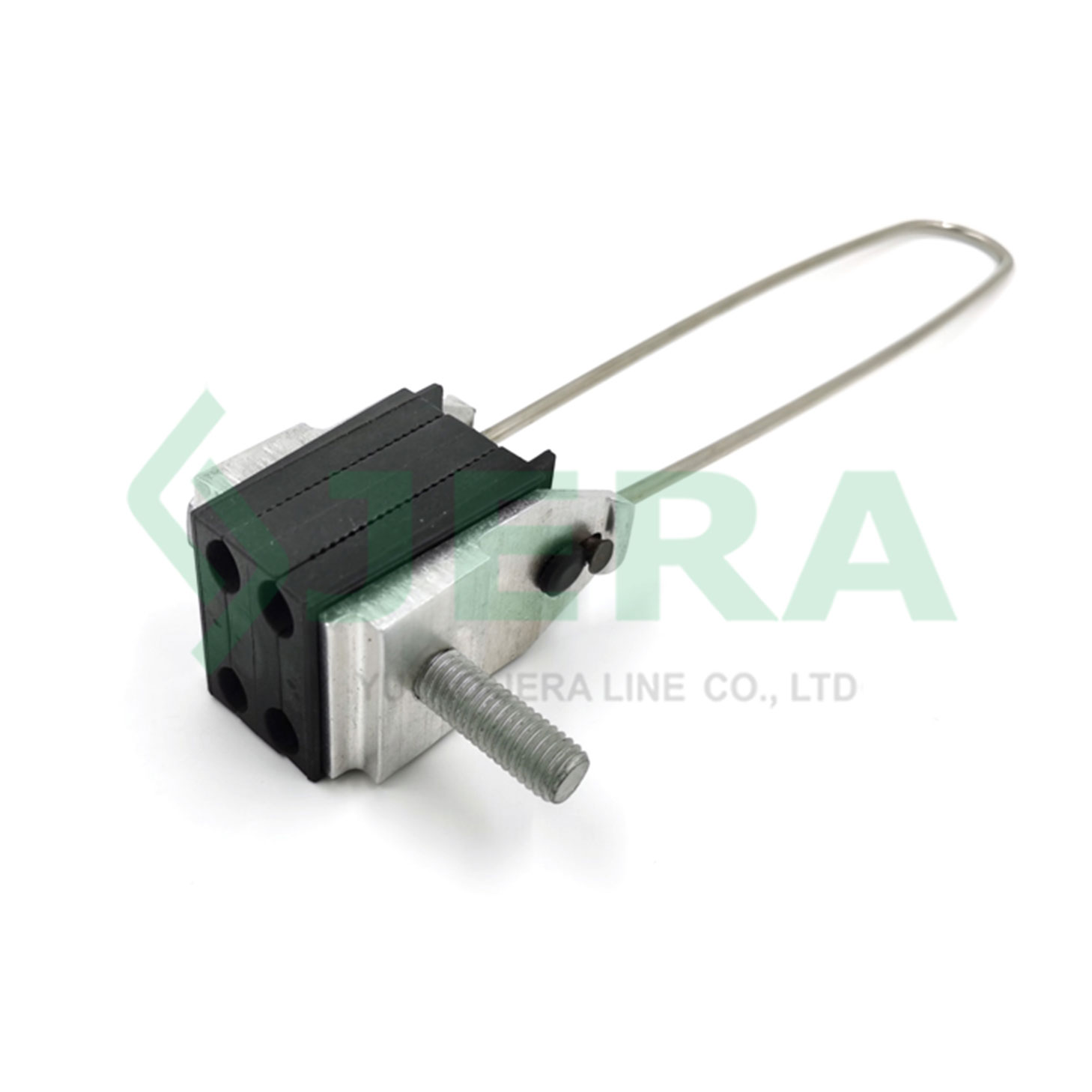

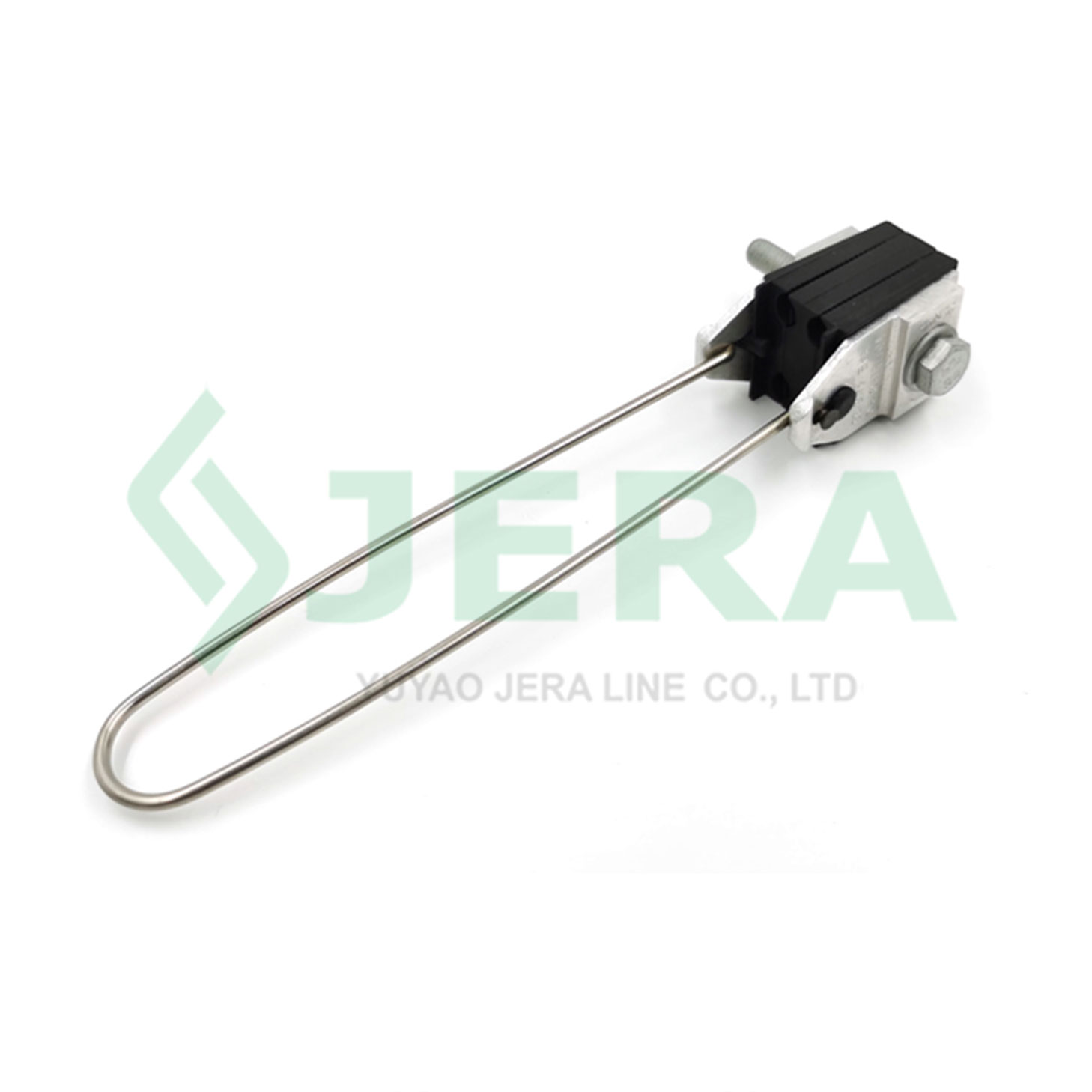

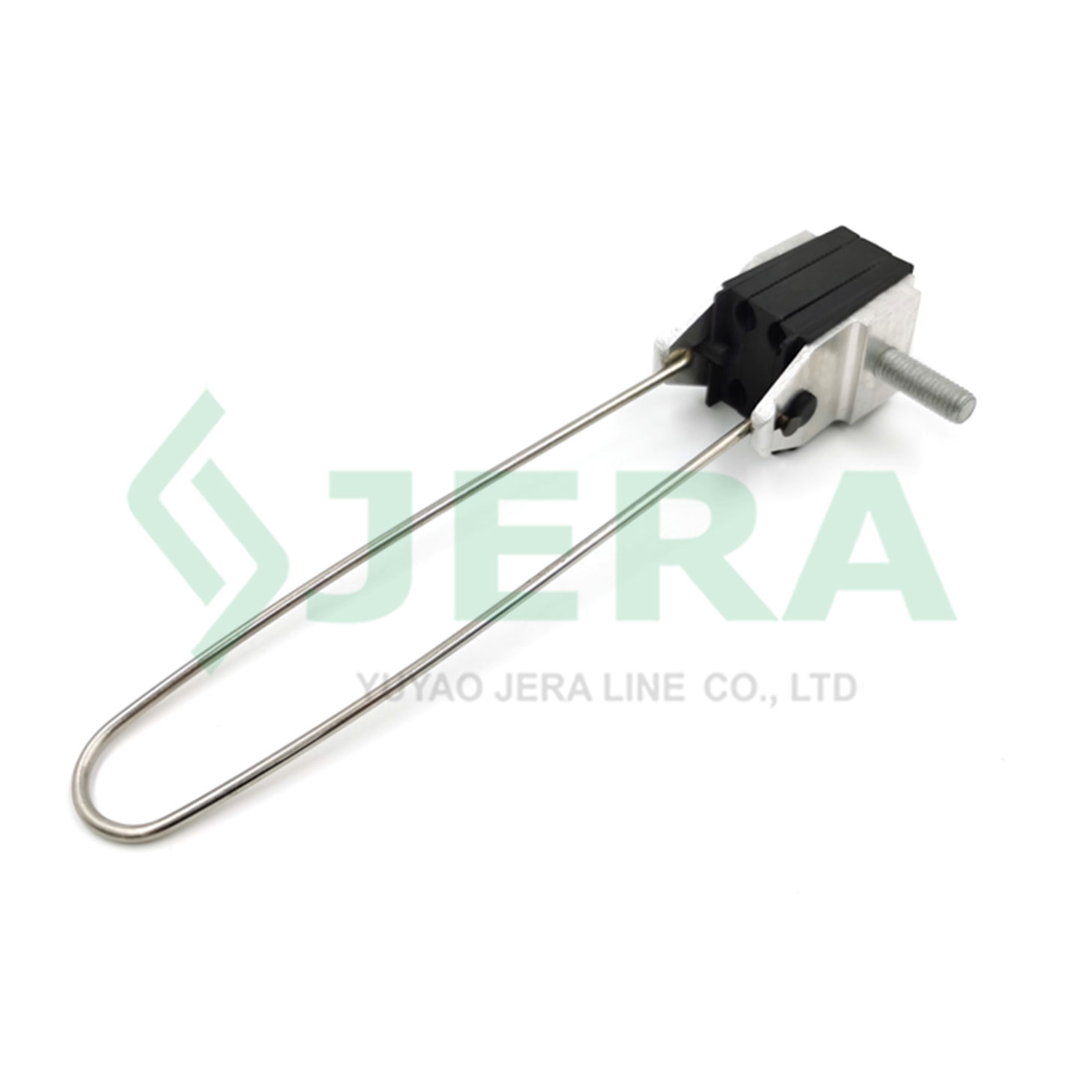

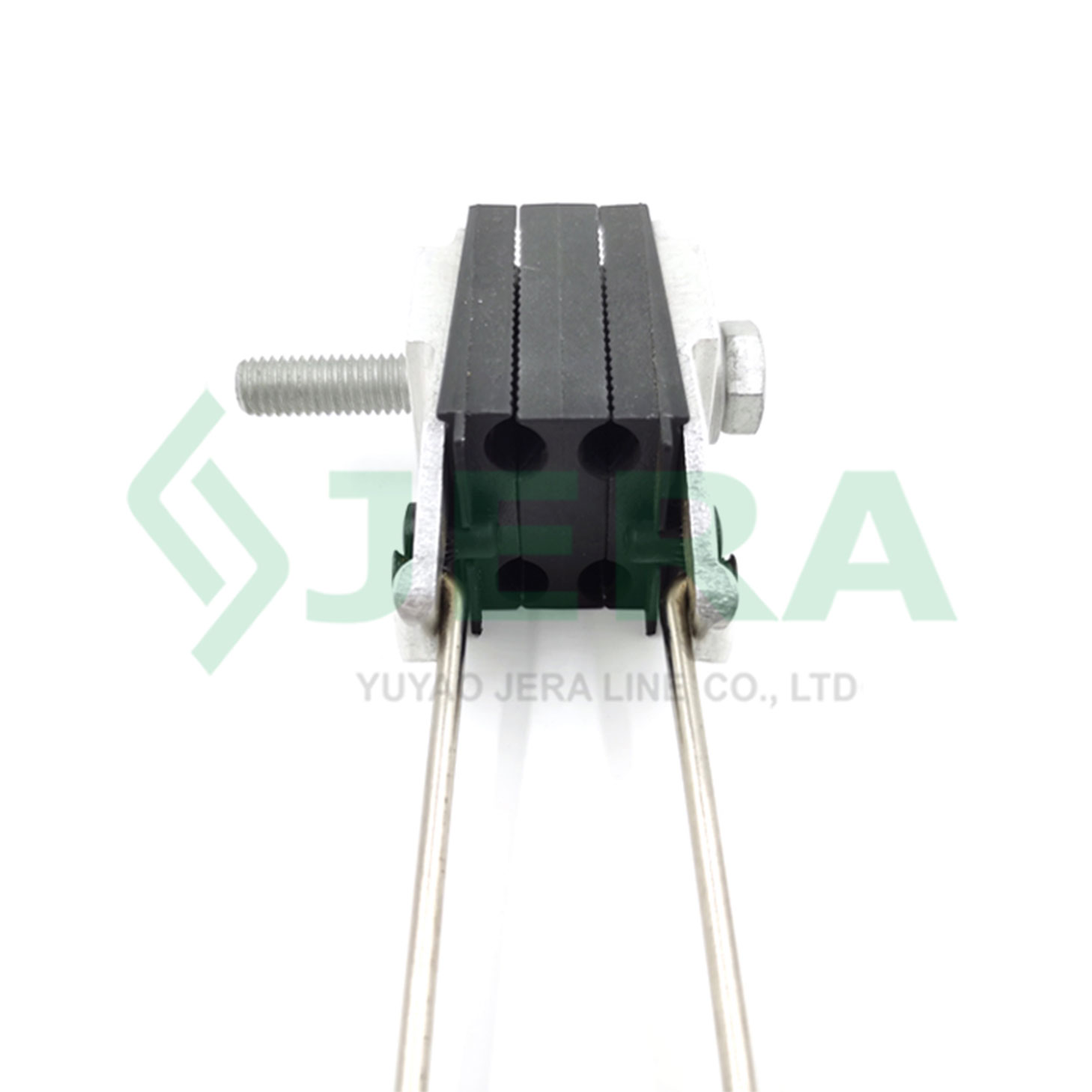

Low
voltage bolted clamp PA-158, it’s designed to anchor and tension insulated
service line with 4 cores cable in self-supporting low voltage line constructions, up to 1KV.
Technical specification
Product code
Cable size, mm2
Minimum breaking load (MBL), KN
PA-158
4x16-35
7
Components and materials
Electrical cable tension clamp PA-158. The clamp consists of following main parts:
Components
Materials
Hanger
Galvanized steel
Body
Insulating plastic and steel pin and screw

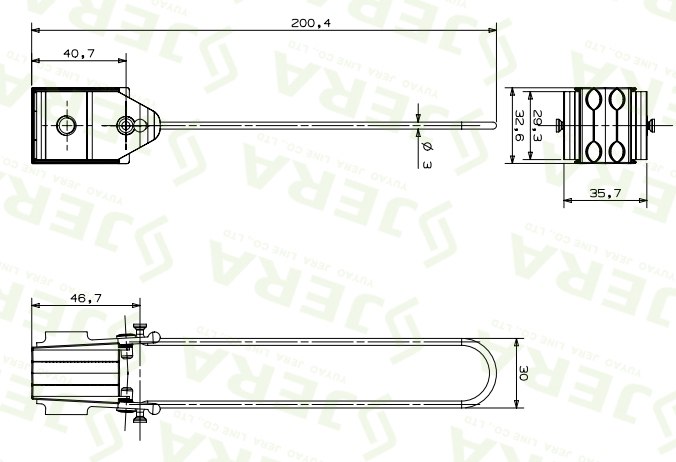

Dimensions
Test
The
PA-158
cable tension clamp has undergone rigorous the Maximum tensile
strength from Tensile
strength machine.
