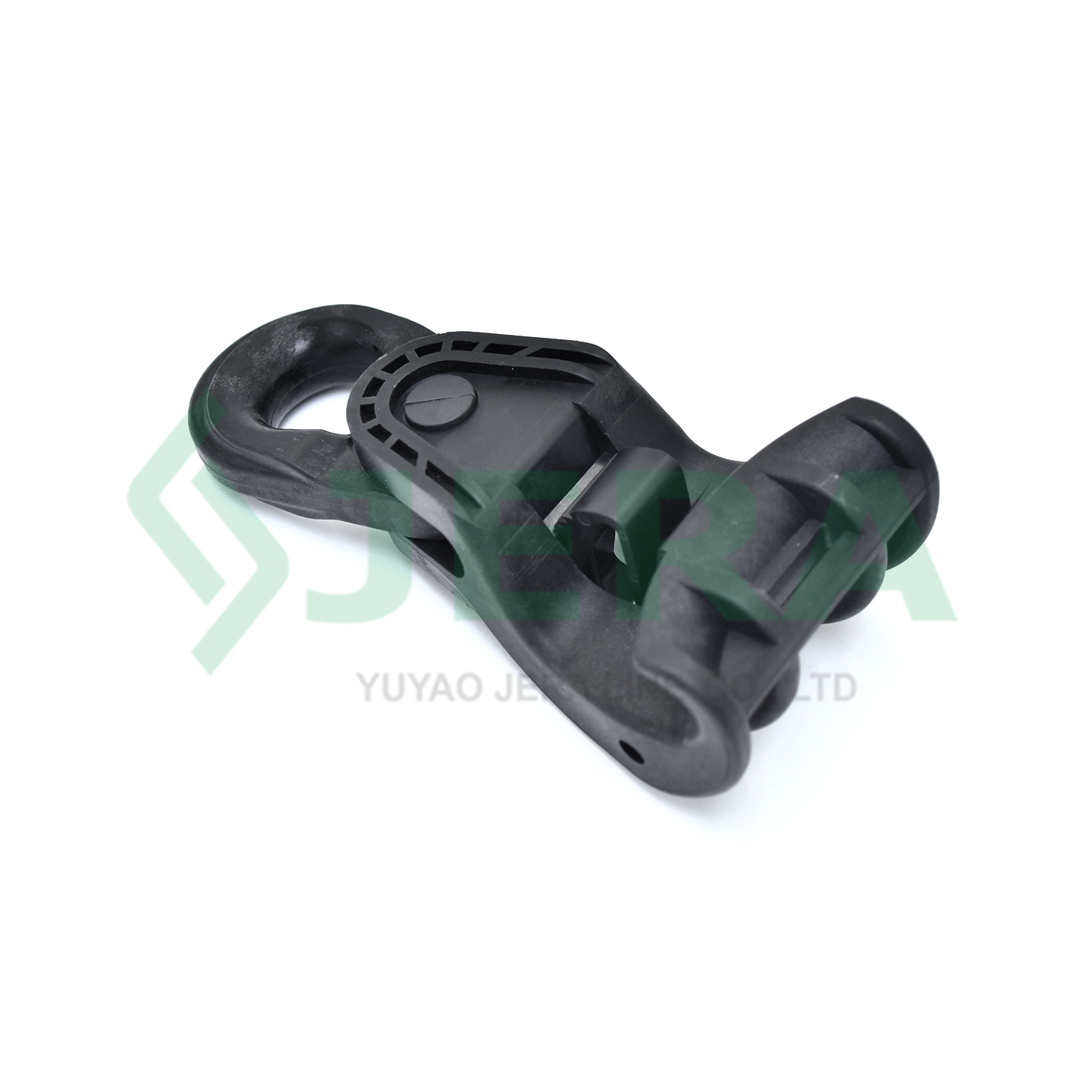

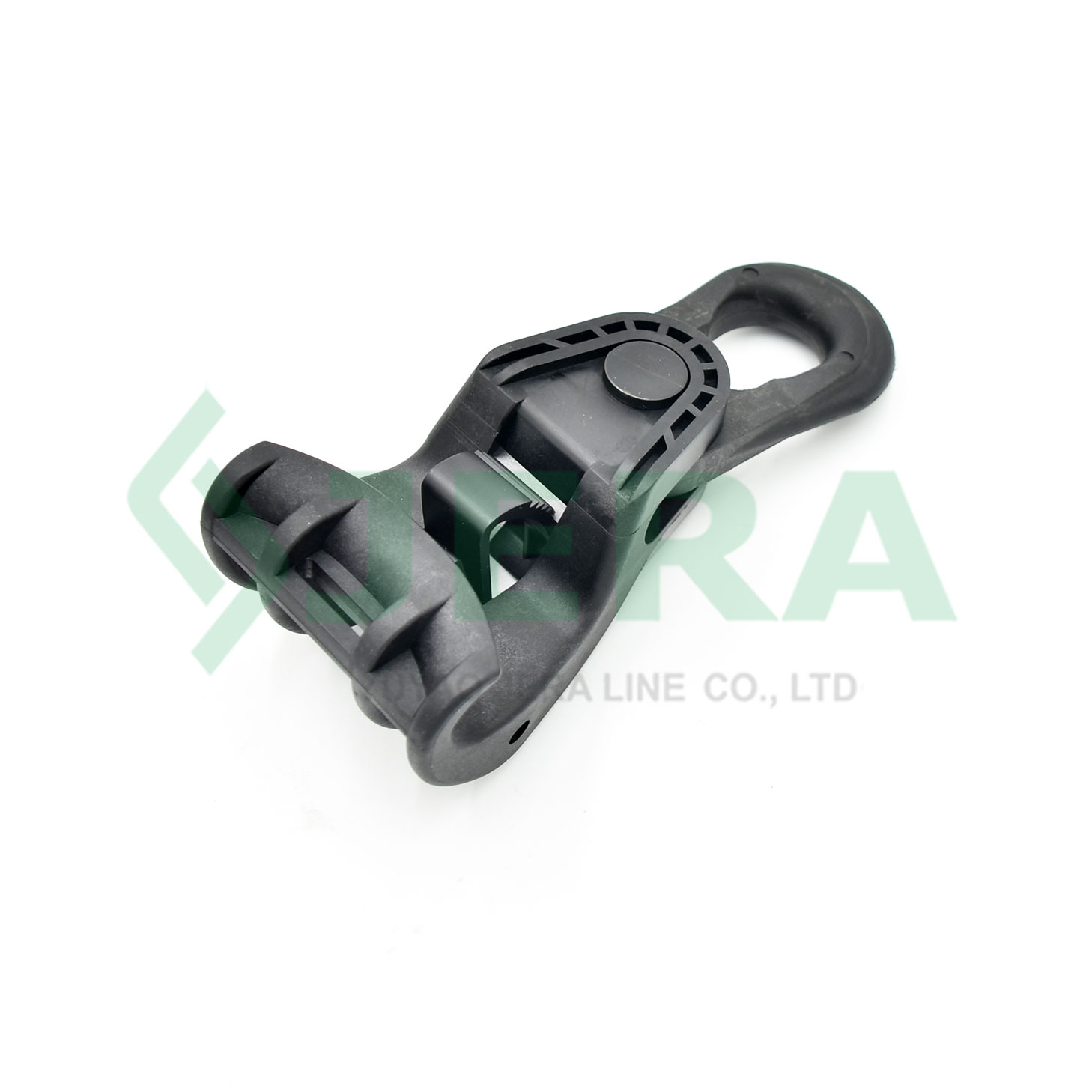

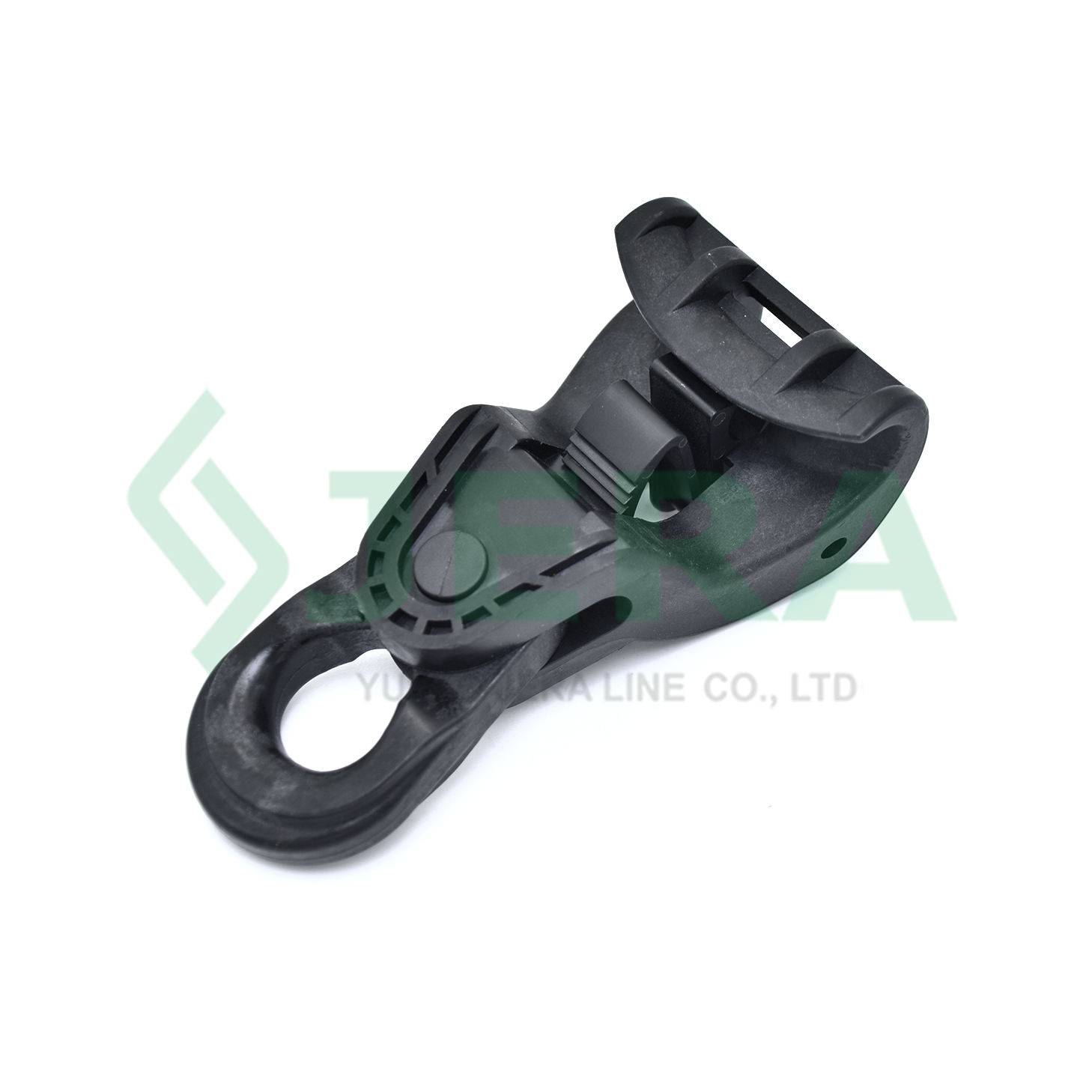

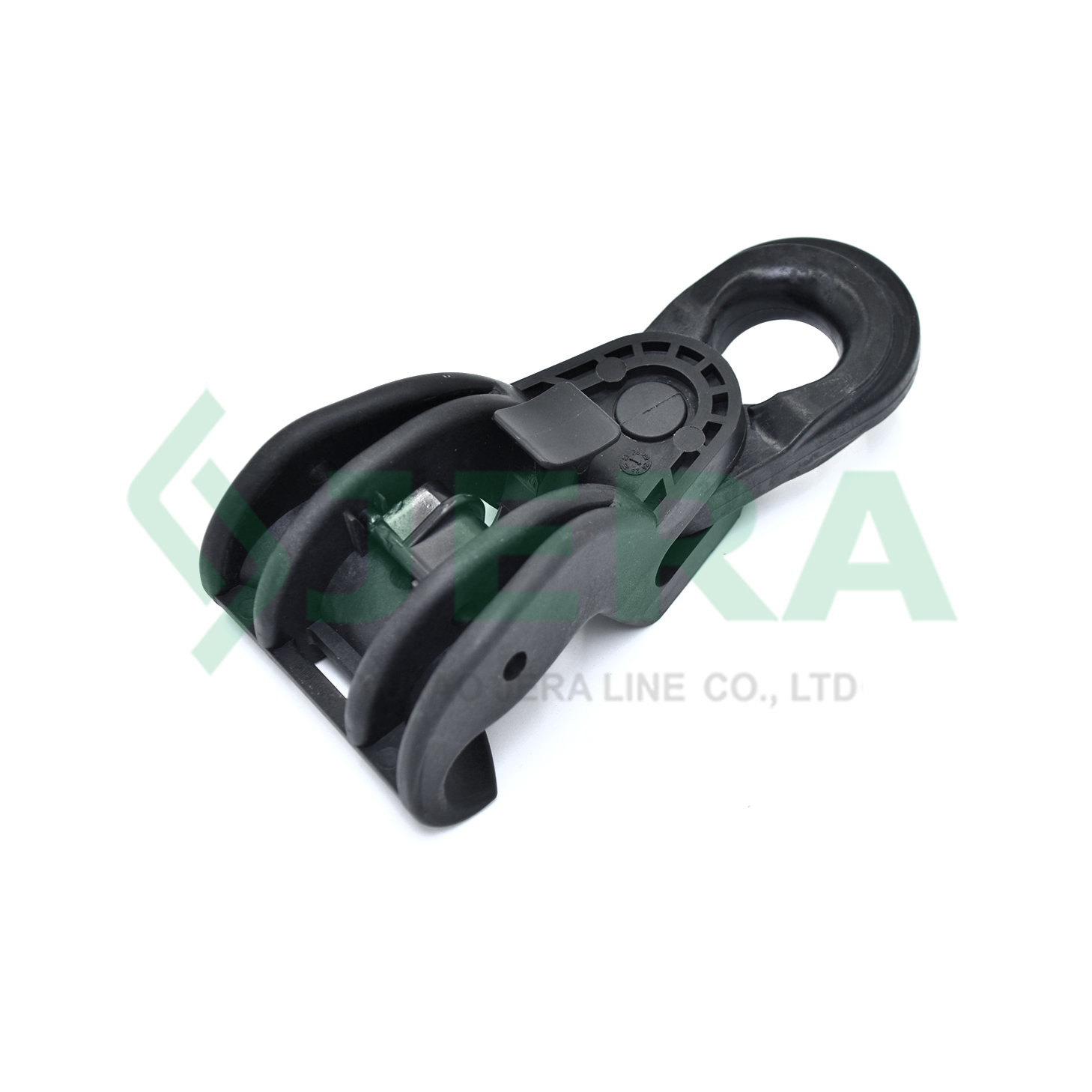

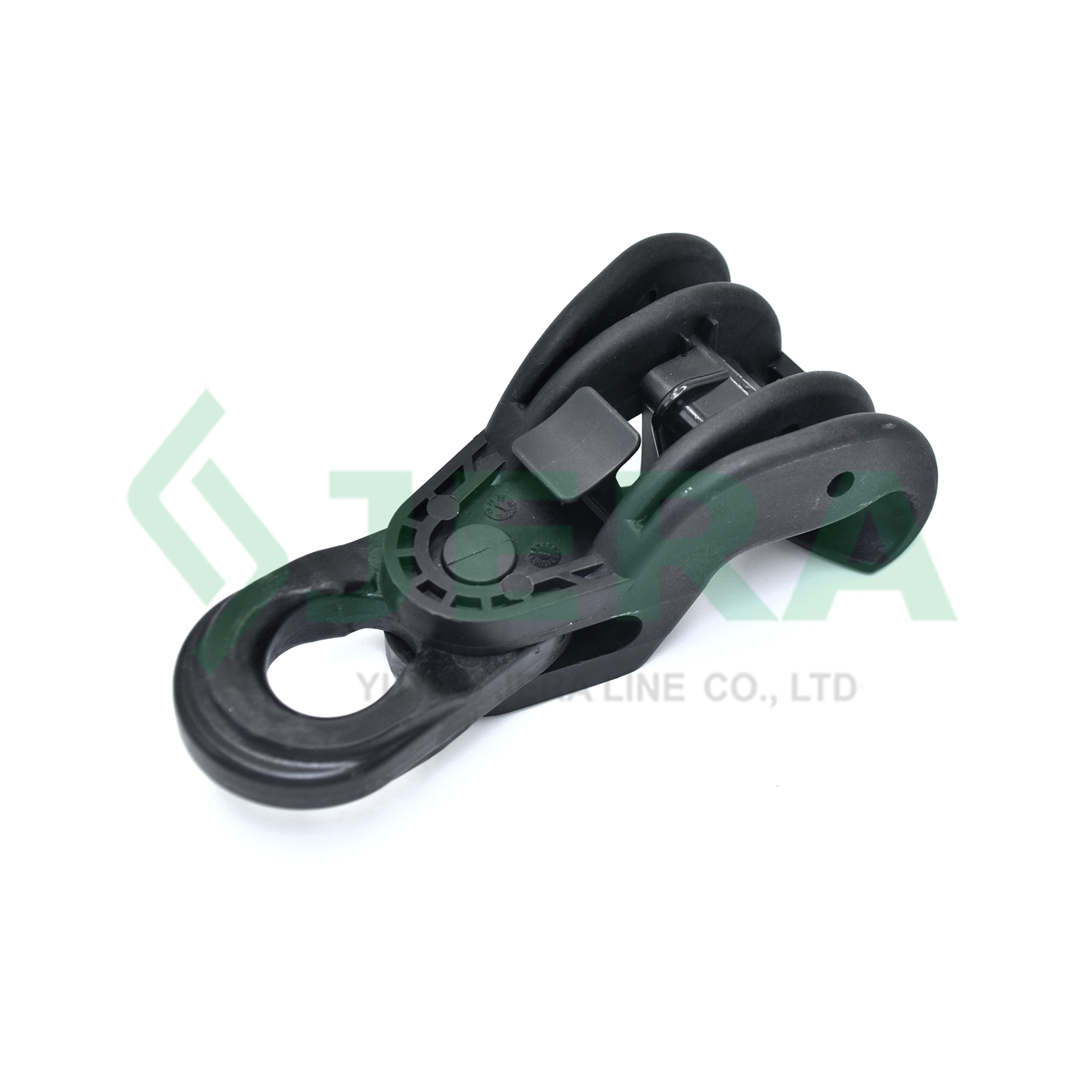

LV ABC cable suspension clamp PS-1200

low voltage suspension clamp, compact size, durable material, application size 16-95mm2, MBL 12KN
LV ABC cable suspension clamp PS-1200
Features
  • Wide application cable size
  • Durable materials, made of UV-Resistant materials
  • Maximum Line Deviation Angles
  • Installed in LV-ABC line with bracket
  • High mechanical strength
  • Factory in China with competitive price
Contact Us
DESCRIPTION
TEST
REVIEW

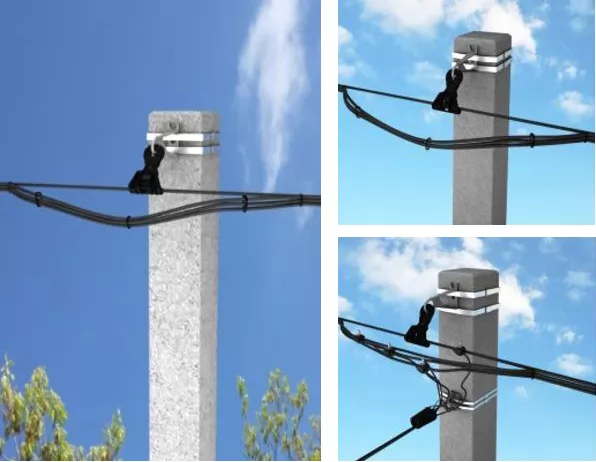

Application

Aerial bundled cable suspension bracket PS-1200 is designed for use in low voltage aerial bundled cable systems. It allows for maximum line deviation angles of 30° towards the pole and up to 50° pulling away from the pole.

It can be used with Jera Line PS-1000 bracket, to ensure reliable connection in power distribution system.

Technical specification

Product code Cable size Minimum breaking load (MBL), KN
PS-1200 16-95 12

Components and materials

Low voltage suspension clamp PS-1200, is manufactured by Jera Line, a Direct factory location in China, Jera has plastic injection molding workshop. The clamp consists of following main parts:

Components Materials
Body Quality UV resistant polymer

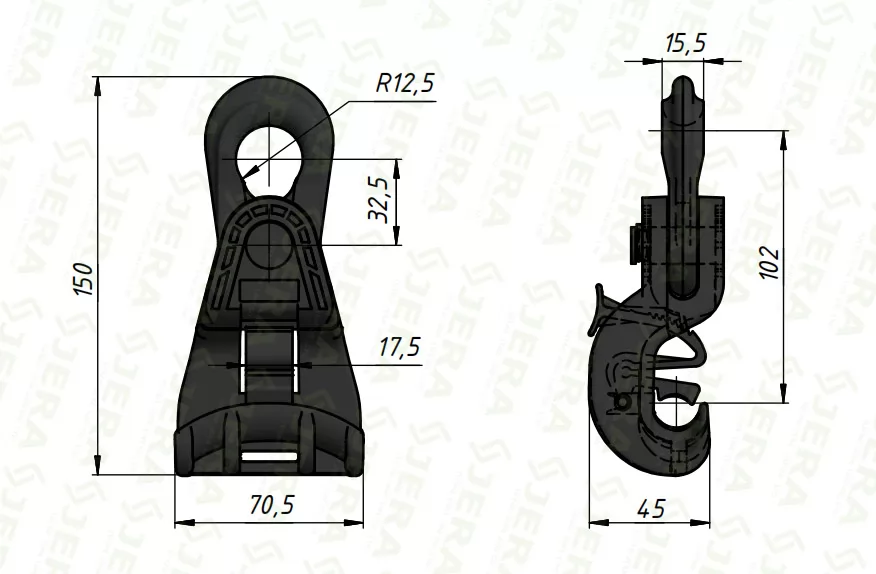

Dimensions

Test

LV ABC support clamp PS-1200 usually used for holding overhead ABC cables, from insulated main line to branches.


It has undergone rigorous necessary test by Jera Line on site Laboratory Testing Equipments.

Such as

Environmental performance validation

Mechanical properties & performance validation

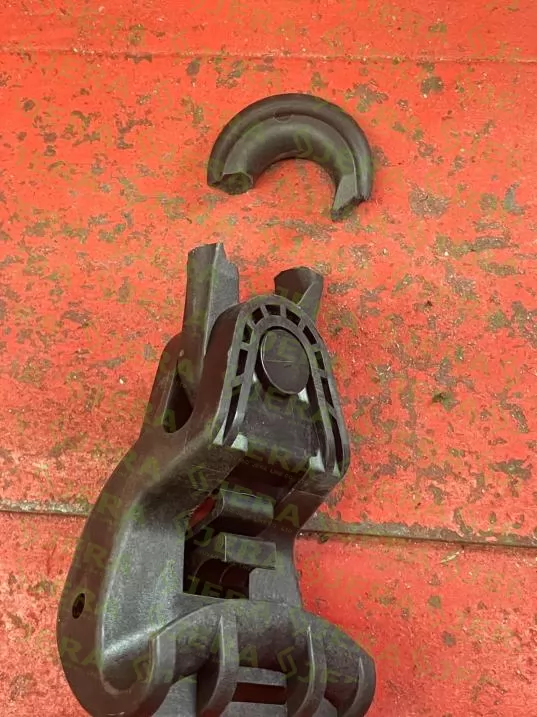

● Tensile strength machine for Maximum tensile strength

● Temperature & Humidity aging equipment for High and low-temperature cycling


Below are some pictures for your reference:
