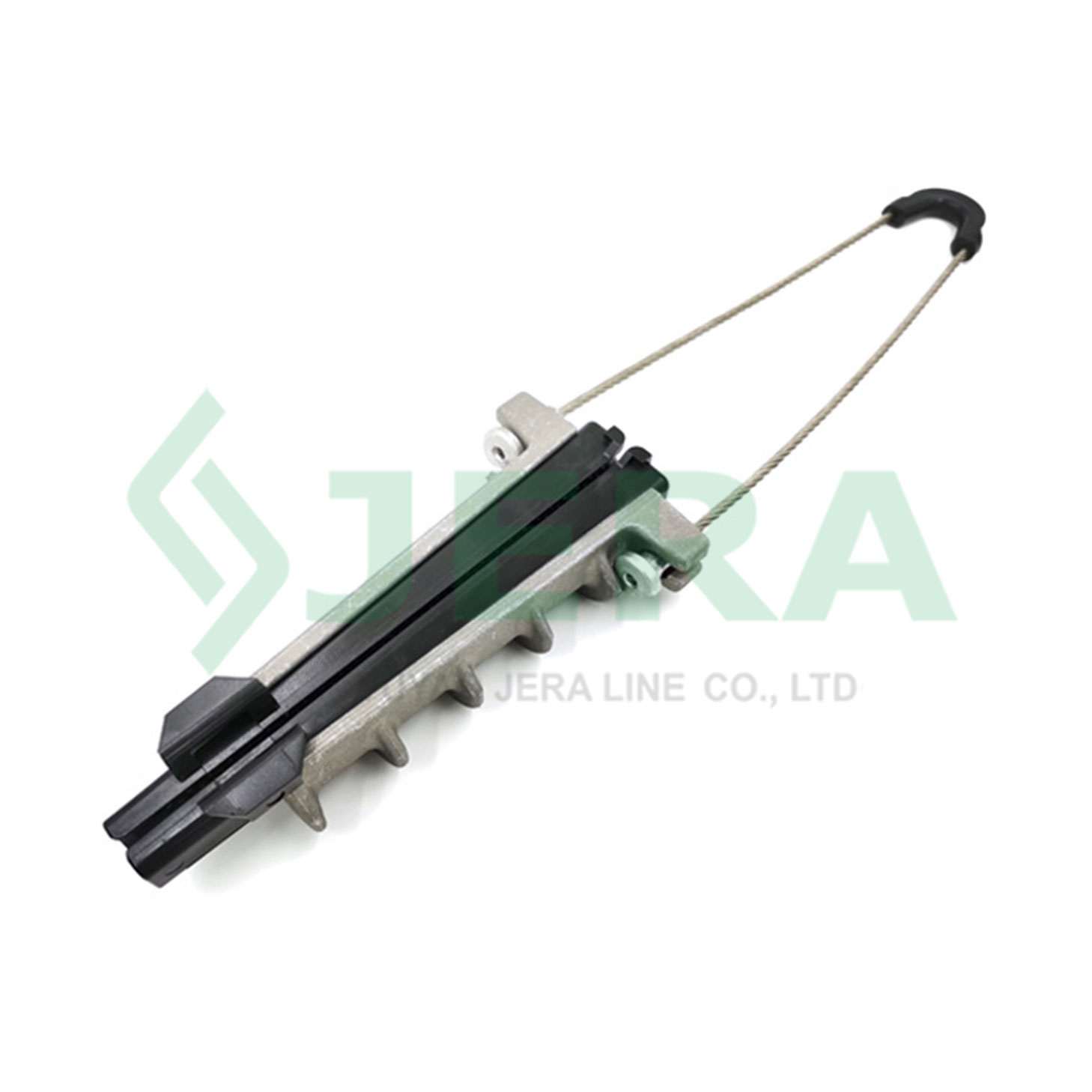

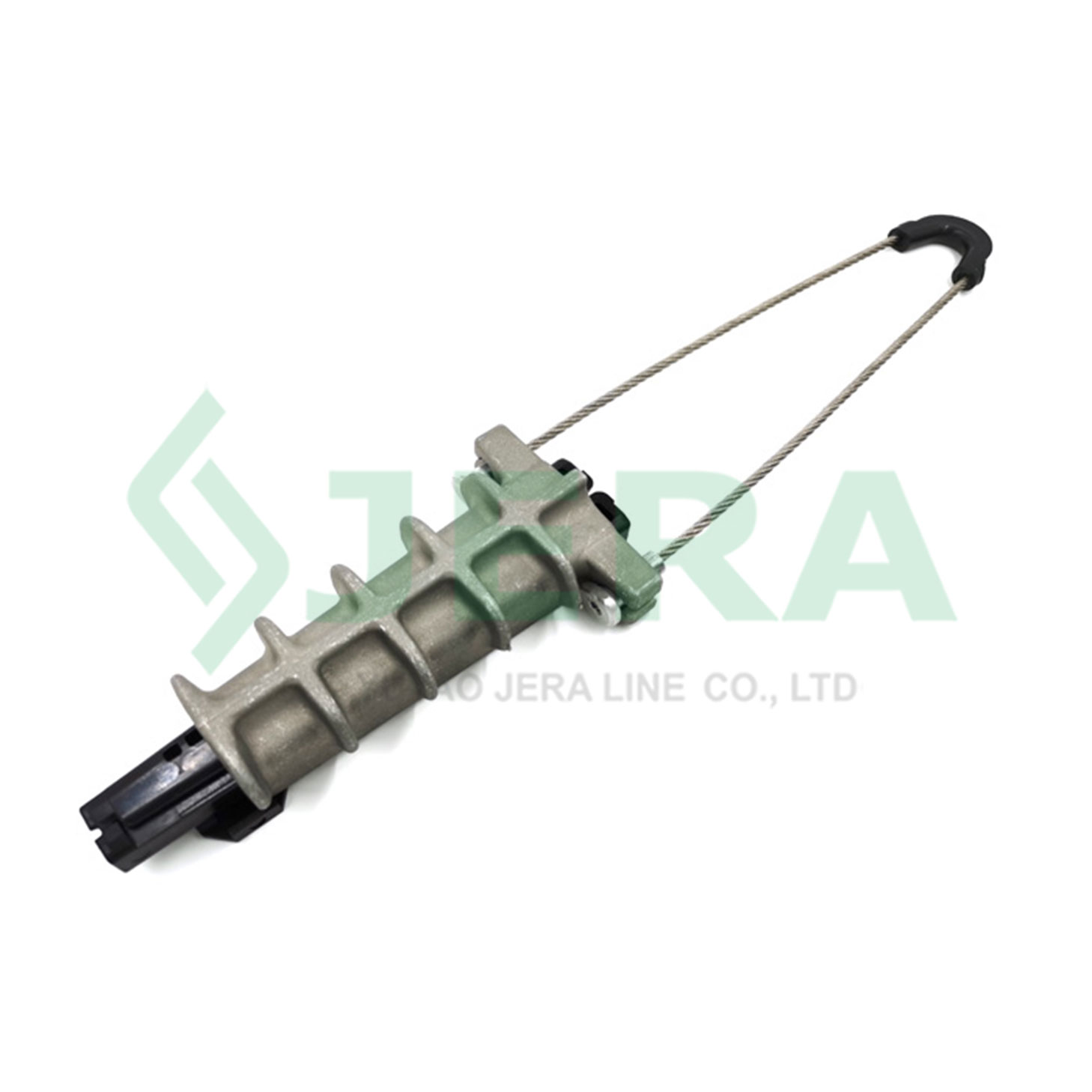

LV Cable Tension Clamp PA-1600

cable anchoring clamp, 35-70 mm2 one core power cable strain clamp up to 1KV

Features

35-70mm2 LV power cable application
Self-adjusting wedges, easy installation
High mechanical strength up to 16KN
Duribale materials: UV resistant plastic, aluminum alloy, stainless steel
The third party laboratory type test NFC 33041:2003-09
Directly Factory

DESCRIPTION

TEST

REVIEW

Application

The electrical anchor clamp PA-1600, also called low voltage wedge clamp, is is design to anchor and tension insulated once core messenger from 35-70mm2 in low voltage ABC overhead systems, up to 1KV.

Technical specification

Product code	Cable size, mm2	Minimum breaking load (MBL), KN
PA-1600	1 x 35-70	16

Components and materials

The LV tension wedge clamp PA-1600, is manufactured by a Direct factory -- Jera Line , which accept the third party inspection and provide Extended warranty. The clamp consists of following main parts:

Components	Materials
Wire bail	Stainless steel wire + UV resistant U-groove
Body	Aluminum alloy
Wedge	UV resistant, fiberglass reinforced polymer
Wedge holder	UV resistant, fiberglass reinforced polymer
