Mechanical bolted Conductor Lug, CLBIT-2-185-400

Mechanical Shearbolt Lug, 2 bolts, 185-400 mm2 Aluminum and copper cable usage, tin coated Aluminum Alloy material

Features

Easy Operation: Only requires a hex key to tighten the bolts
Wide range application 185 to 400 mm2
Suitable for aluminum and copper cables
Universal Design: Compatible with both solid and stranded cables
Manufactured according to the standard: IEC-61238-1-3
Factory location in China

DESCRIPTION

TEST

REVIEW

Application

Mechanical Electrical Lug CLBIT-2-185-400, also called mechanical terminal lug, is is used for termination of power cables started from 185 sqm to 400 sqm up to voltage 1KV. It’s suitable for both aluminum and copper electrical cable during power line constructions.

Main Applications:

● Electrical Transmission and Distribution Lines: It can be used to secure electrical conductors to transmission or distribution line system

● Substation Equipment: It can connect cables or busbars to different substation equipment such as transformers, circuit breakers, or switchgear

● Grounding Systems: It can be employed to connect ground wires to grounding rods or other grounding components

Technical specification

Product code	Cable size, mm2	Size of Bolt, M/hex size	Bolt number	Application cable
CLBIT-2-185-400	185-400	46/52	2	Copper/Aluminum

Components and Materials

Mechanical Shearbolt Connector Lug, CLBIT-2-185-400 is produced by a direct factory location in China -- Jera Line, and it is also under Research and Design RnD by Jera Line, the mechanical lug consists of the following main part:

Components	Materials
Body	Aluminum alloy, tin covered
Shear off torque bolts	Aluminum alloy

Dimensions

Test

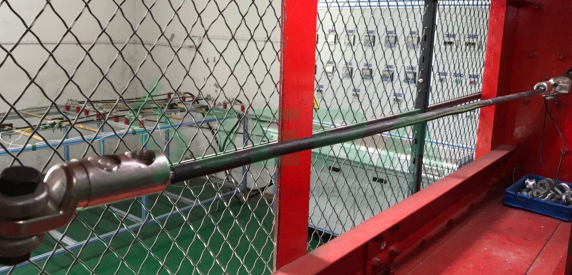

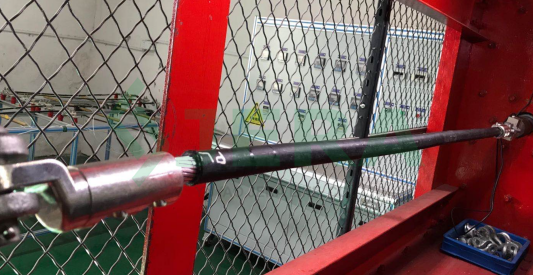

Aluminum Shearhead wire Lug, CLBIT-2-70-240 has undergone rigorous Electrical and Mechanical testing according to the international standard IEC 61238-1-3:2018, conducted by Jera Line own laboratory, Jera Line also operates its own factory laboratory for routine tensile strength testing using a Tensile strength machine.
