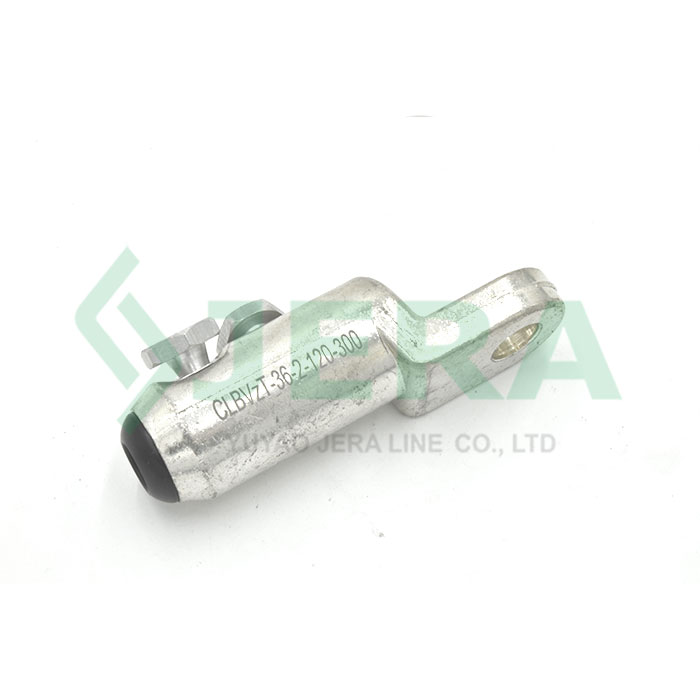

MV Terminal Lug CLBVz-36-2-120-300, is designed for 0.4-36KV aluminum or copper cables distribution systems to connect cables distribution equipments such as transformers, switchgear, and distribution panels with reliable connection.

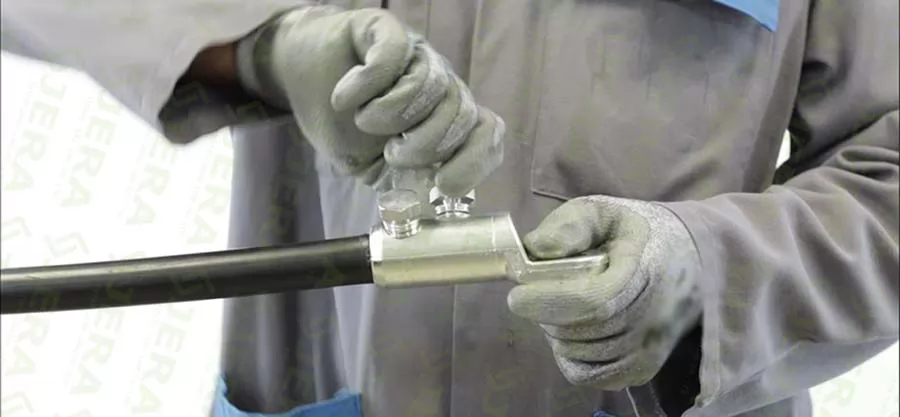

● Transformer Connections: Reliably connects medium voltage cables to transformers for efficient power distribution.
● Switchgear Installations: Connects busbars or cables within switchgear assemblies, ensuring reliable circuit control and protection.
Technical specification
Product code
Cable size, mm2
Torque, N*m
Bolt number
Application cable
CLBVz-36-2-120-300
120-300
40/42/44
2
Copper/Aluminum

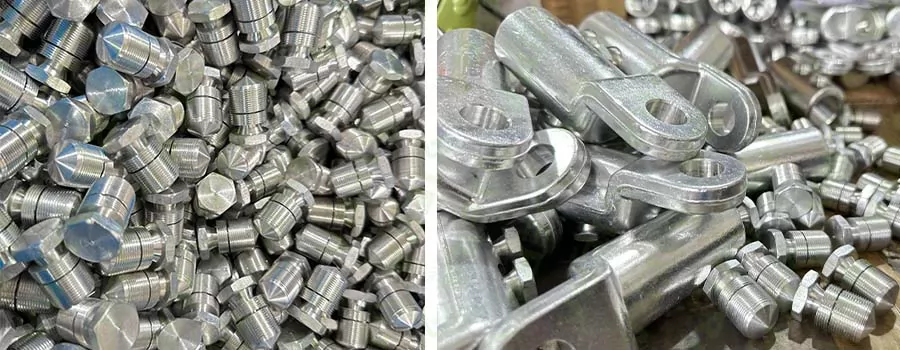

Components and Materials
Jera Mechanical Line Terminal Lug CLBVz-36-2-120-300 is produced by a direct factory location in China -- Jera Line, and it is also under Research and Design RnD by Jera Line, the MV mechanical lug consists of the following main part:
Components
Materials
Body
Aluminum alloy, tin covered
Shear off torque bolts
Aluminum alloy
Compensating ring
UV resistant FR polymer

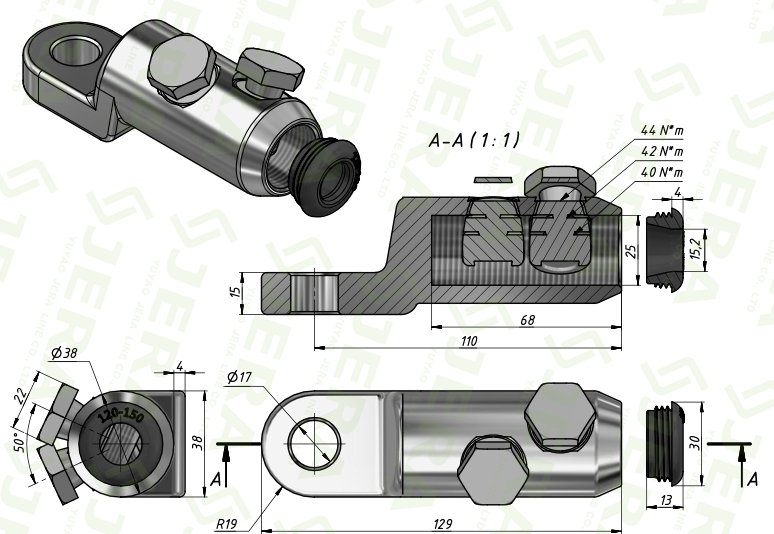

Dimensions
Test
Mechanical Durable Terminal block CLBVz-36-2-120-300 has passed routine test by Jera Line own factory laboratory, if the test report required, Jera Line can provide factory test report which according to standard IEC-61238-3.
We do the following test:
● Visual inspection test and dimensional and material verification test
● Mechanical tension test according to standard IEC 61238-1-3
● Shear head functions test according to standard IEC 61238-1-3
