Mechanical electric cable lug CLBVzT-36-3-185-400

Mechanical shear-head lug, 3 bolts, suitable for both LV and MV Aluminum and copper cable, 185-400 mm2, tin plated Aluminum Alloy material

Features

Expanded cable range from 185-400mm2

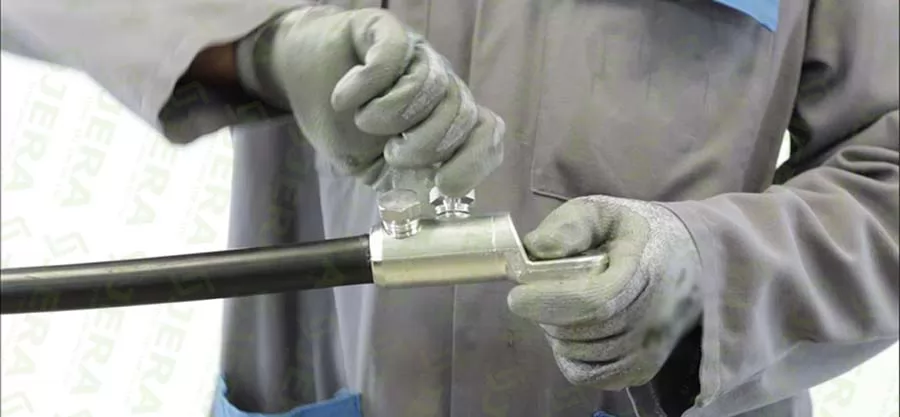

Quick and easy installation, only need to tighten the bolts and shear head off by hex key
Made from tin-covered aluminum alloy, compatible with both aluminum and copper cables
Suitable for both low and medium voltage applications up to 36KV
Manufactured according to standard IEC-61238-1-3
Produced directly in China, offering a cost-effective solution

DESCRIPTION

TEST

REVIEW

Application

Mechanical electrical bolted cable Lug CLBVzT-36-3-185-400, is designed for electrical and power distribution systems for securely connecting and terminating low and medium voltage cables up to 36KV.

Applications:

● Power Distribution Networks: Connects cables in electrical substations and distribution panels for efficient power distribution.

● Transformer Connections: Provides a secure and reliable connection between large cables and transformers.

● Switchgear and Control Panels: Connects cables to circuit breakers, busbars, and other equipment within switchgear and control panels.

Technical specification

Product code	Cable size, mm2	Torque, N*m	Bolt number	Application cable
CLBVzT-36-3-185-400	185-400	46/48/50/52	3	Copper/Aluminum

Components and Materials

Shear Head Bolted cable lug CLBVzT-36-3-185-400 is produced by a direct factory location in China -- Jera Line, it consists of the following main part:

Components	Materials
Body	Aluminum alloy, tin covered
Shear off torque bolts	Aluminum alloy
Compensating ring	UV resistant FR polymer

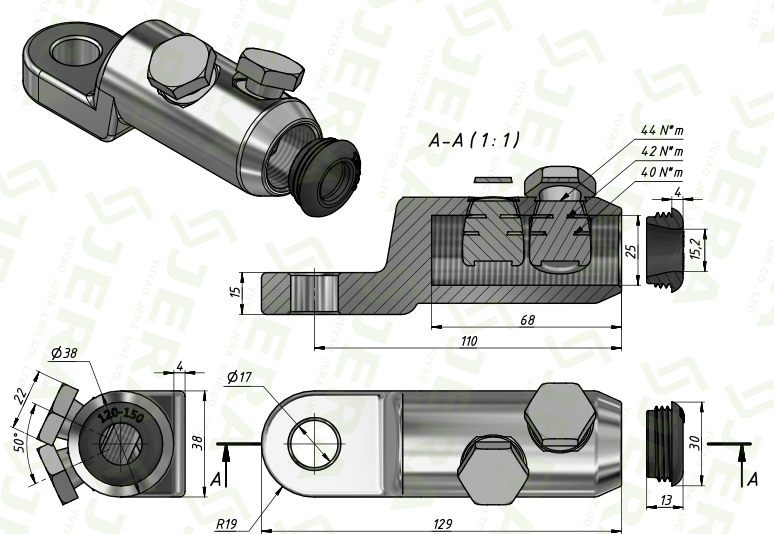

Dimensions

Test

Mechanical Shear Head cable terminal Lug CLBVzT-36-3-185-400 has passed routine test by Jera Line own factory laboratory, if the test report required, Jera Line can provide factory test report which according to standard IEC-61238-3.

We do the following test:

● Visual inspection test and dimensional and material verification test

● Mechanical tension test according to standard IEC 61238-1-3

● Shear head functions test according to standard IEC 61238-1-3
