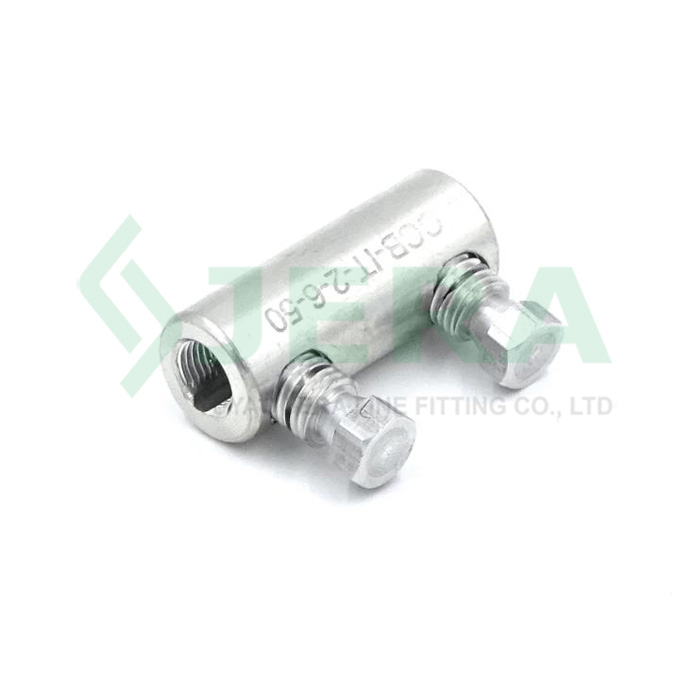

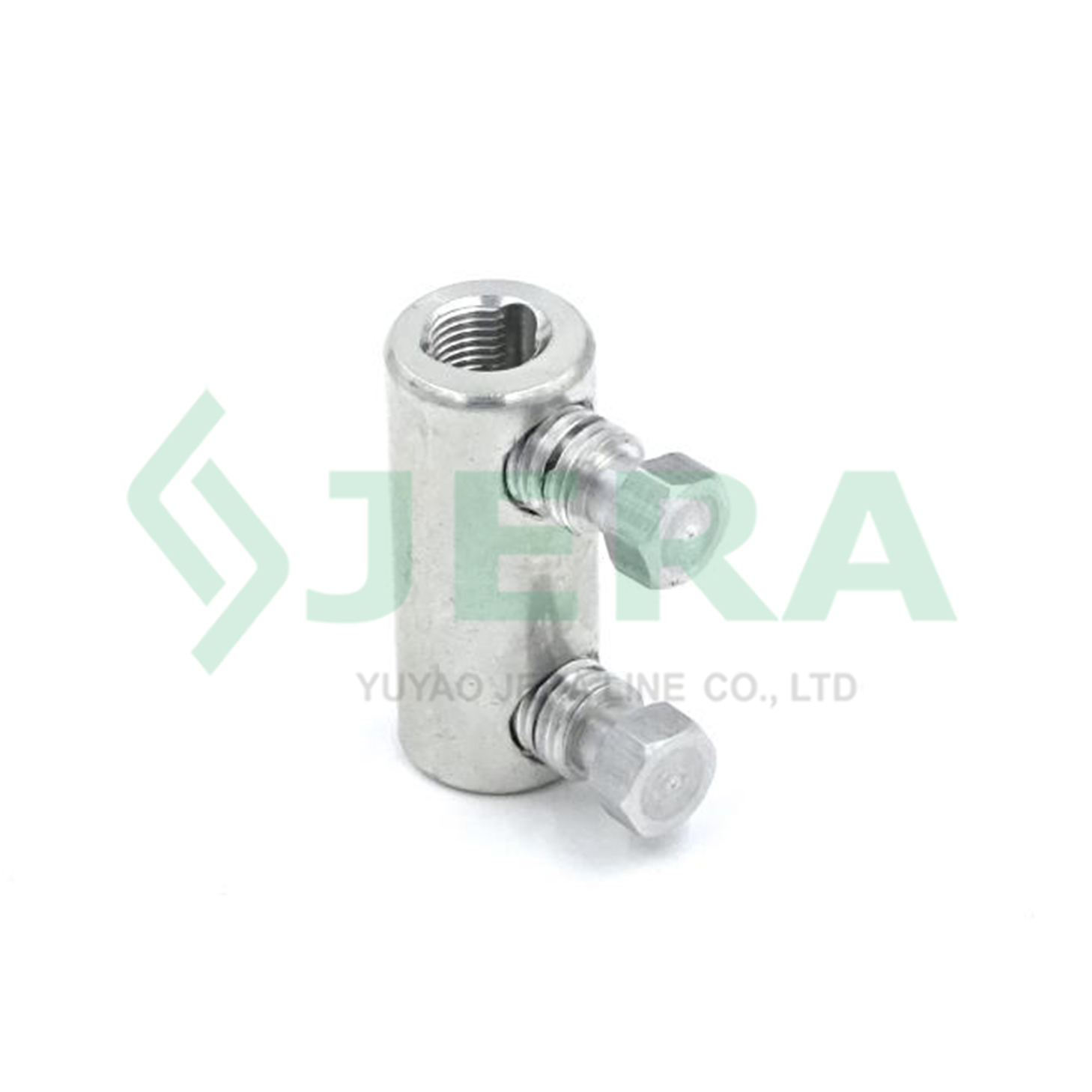

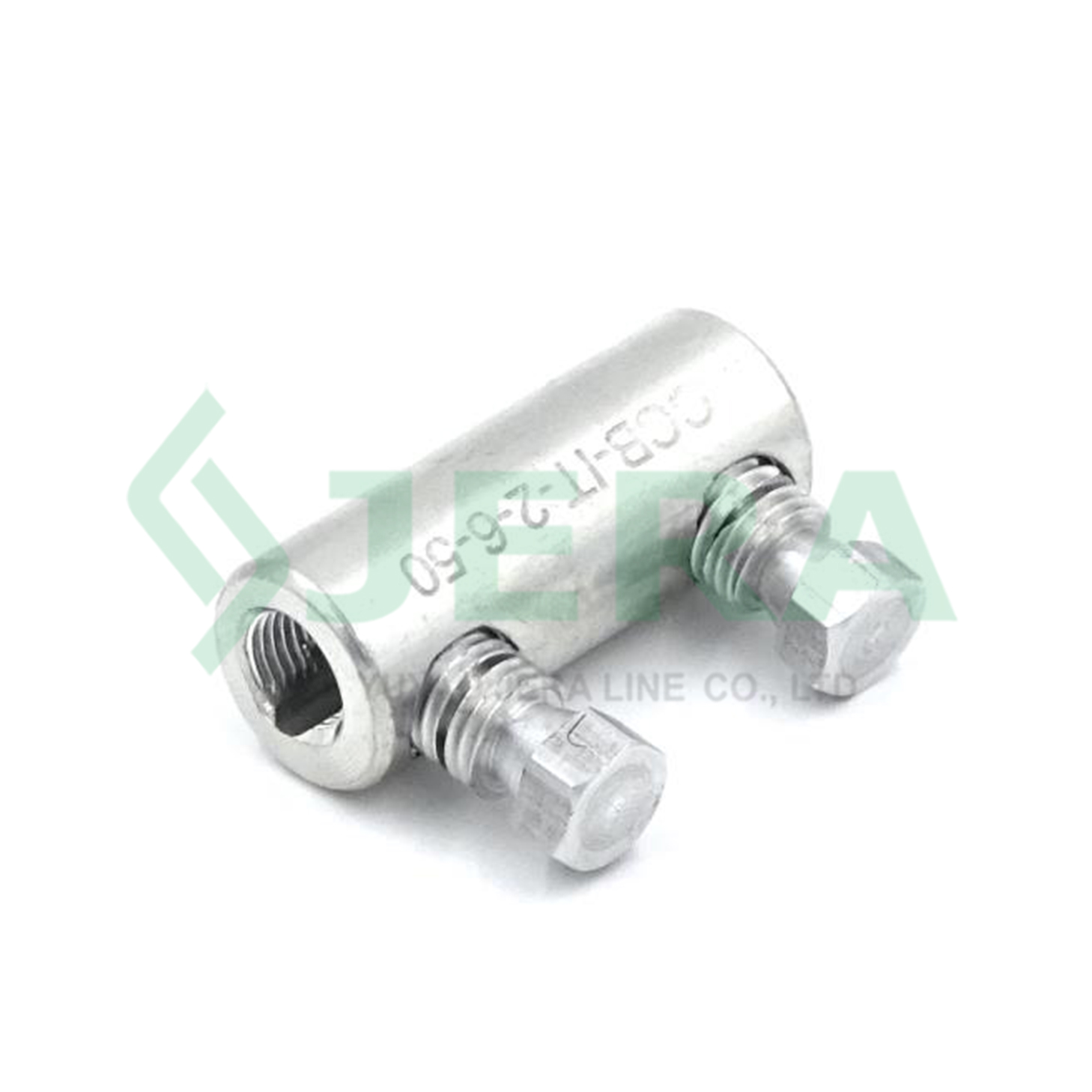

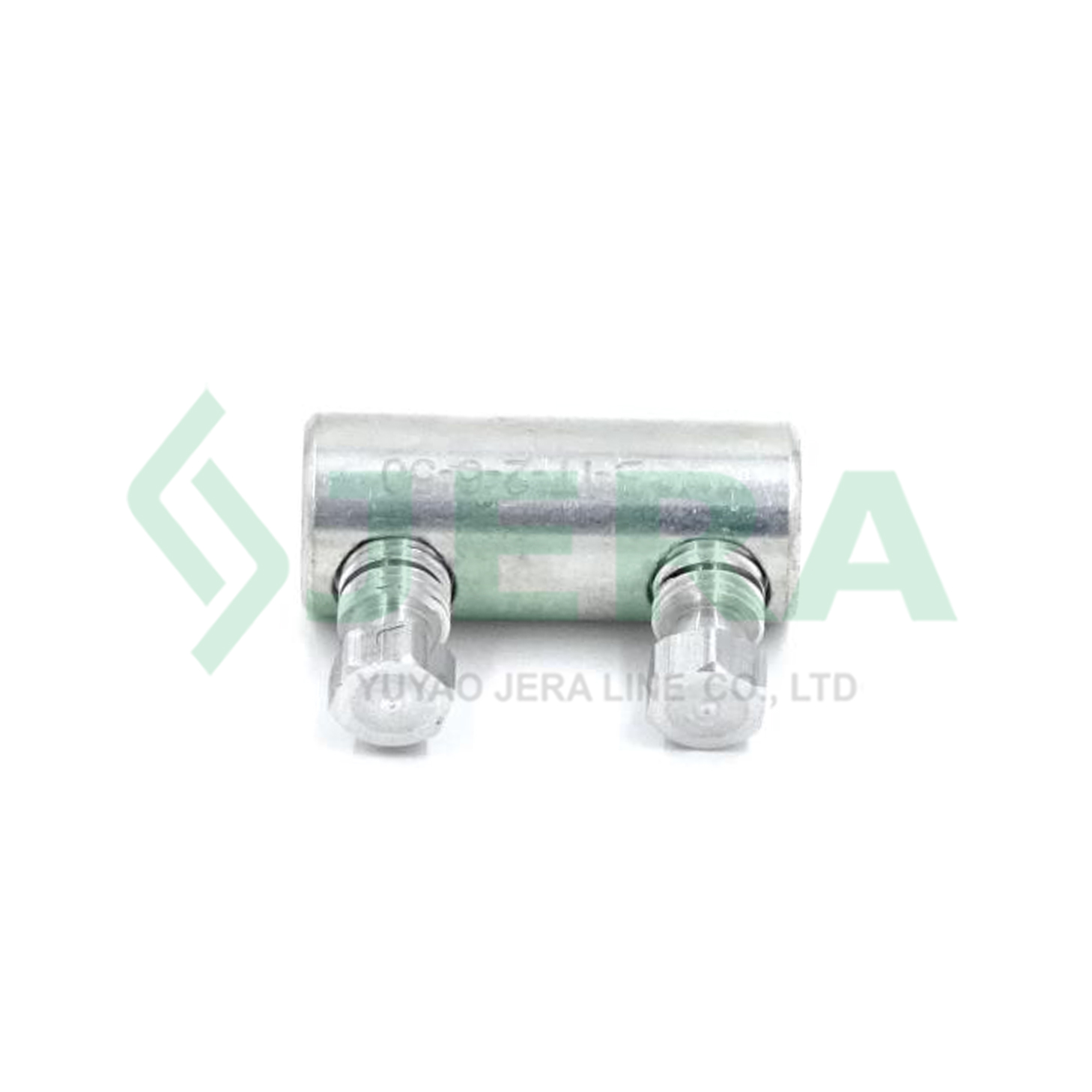

Mechanical Shear Bolt Connector CCBIT-2-6-50

Mechanical Cable Terminal connector, 2 torque bolts, suit for 6-50 mm2 Aluminum and copper cable, tin plated Aluminum Alloy material, IEC-61238-1-3 type test report

Features

Rapid installation by using hex key
Torque-controlled shear-head bolts guarantee a good electrical contact
Tin covered Aluminum Alloy material, can be used for both AL and CU cables
Wide range application for electrical cable from 6 to 50mm2
Third party laboratory type test report IEC-61238-1-3
Competitive price as factory location in China

DESCRIPTION

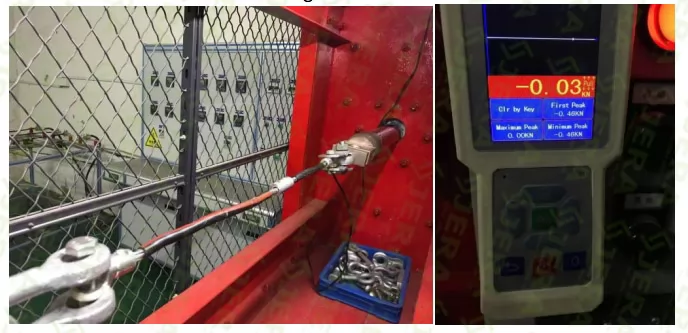

TEST

REVIEW

Application

Mechanical Shear Bolt Connector CCBIT-2-6-50 offers a secure and long-lasting connection for cable wire, ensuring optimal performance in various applications.

Here are its applications:

● Electrical Transmission and Distribution Lines: It can be used to secure electrical conductors to transmission or distribution line system

● Substation Equipment: It can connect cables or busbars to different substation equipment such as transformers, circuit breakers, or switchgear

● Grounding Systems: It can be employed to connect ground wires to grounding rods or other grounding components.

Technical specification

Product code	Cable size, mm2	Size of Bolt, M/hex size	Bolt number	Application cable
CCBIT-2-6-50	6-50	10/10	2	Copper/Aluminum

Components and Materials

Mechanical Shearbolt Connector Lug, CCBIT-2-6-50 is produced by a direct factory location in China -- Jera Line, and it is also under Research and Design RnD by Jera Line, the mechanical lug consists of the following main part:
