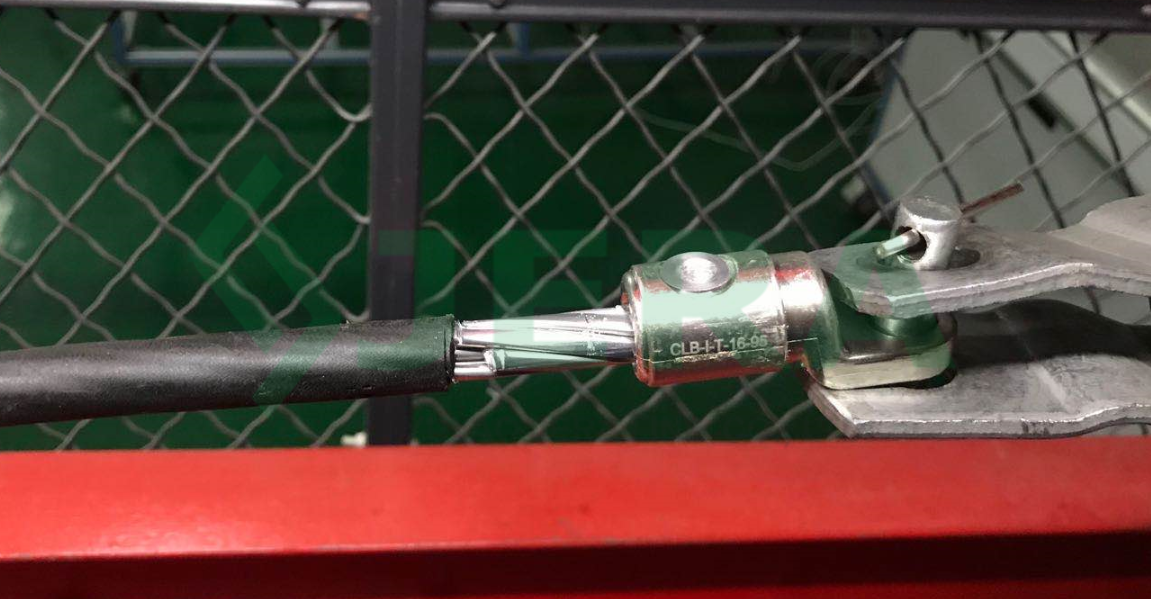

Shear Head Bolt Mechanical lug CLBIT-16-95 either called aluminum cable lug with shearing off driving head bolt, was designed to connect the aluminum or copper wire to the electric circuit under voltage up to 1 kV. Mechanical Cable Lugs applied in cable jointing.
The applications of Aluminum torque cable lug CLBIT-16-95 are including:
● Electrical Transmission and Distribution Lines: It can be used to secure electrical conductors to transmission or distribution line structures
● Substation Equipment: It can connect cables or busbars to different substation equipment such as transformers, circuit breakers, or switchgear
● Grounding Systems: It can be employed to connect ground wires to grounding rods or other grounding components
Technical specification
Product code
Cable size, mm2
Size of Bolt, M/hex size
Bolt number
Application cable
CLBIT-16-95
16-95
14/14
1
Copper/Aluminum

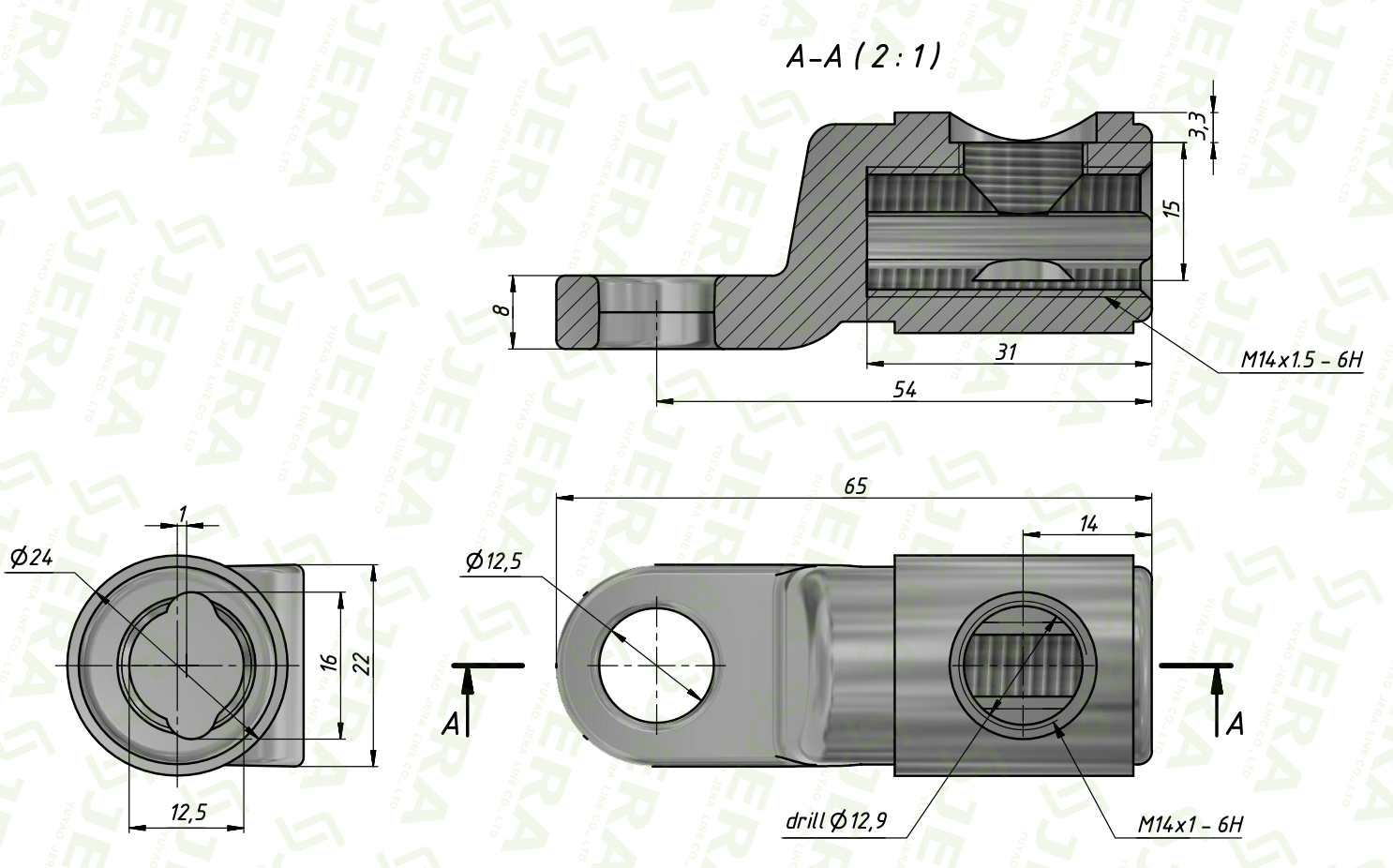

Components and Materials
Mechanical Terminal Lug CLBIT-16-95 is made of durable materials, it is under Research and Design RnD by Jera Line, a direct factory location in China, it consists of the following main part:
