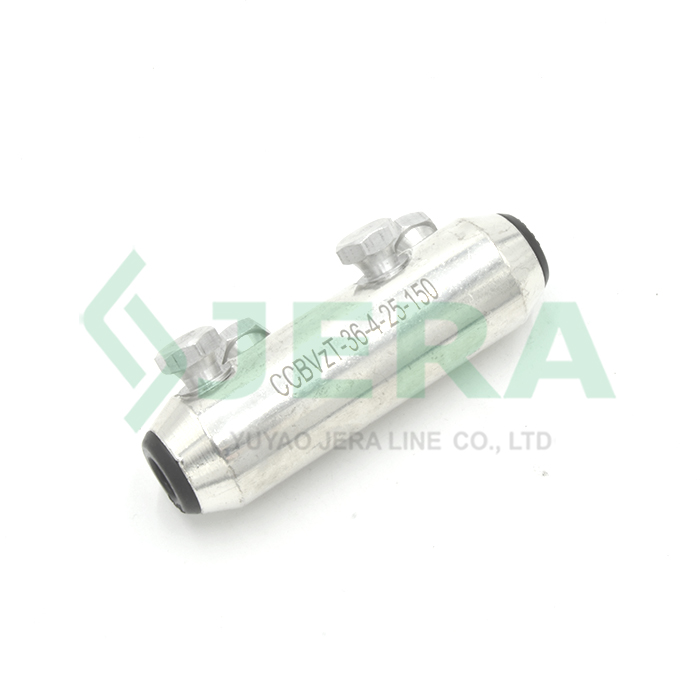

Medium voltage bolted connector, CCBVzT-36-4-25-150

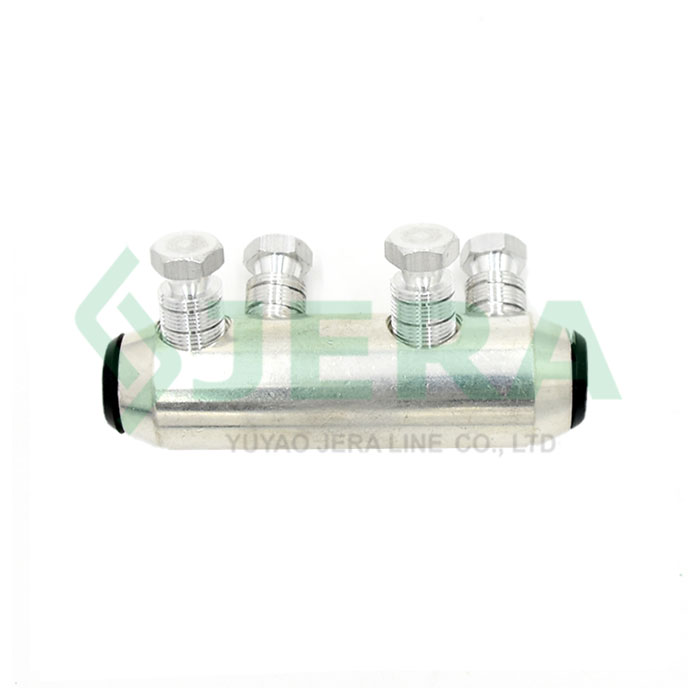

mechanical bolted connector, 4 torque bolts, 25-150 mm2 Aluminum and copper cable application, 0.4-36KV usage

Features

Suitable for electrical cables ranging from 25 to 150 mm²
High mechanical strength, Offers steady shear head torque for reliable performance
Quick installation, easily installed using a hex key
Made from tin-covered aluminum alloy, compatible with both aluminum and copper cables
Manufactured according to standard IEC-61238-1-3
Direct Factory from China

DESCRIPTION

TEST

REVIEW

Application

Mechanical bolted wire Connector CCBVzT-36-4-25-150, is a versatile and reliable solution for connecting electrical cables in power distribution and grounding systems with voltage levels ranging from 0.4 to 36 kV.

Application:

● Power Distribution Systems: Designed to connect aluminum or copper cables in utility and industrial settings, providing dependable power transmission.

● Grounding Systems: Connects ground wires to grounding rods or other grounding components, enhancing safety and offering protection against electrical surges.

Technical specification

Product code	Cable size, mm2	Torque, N*m	Bolt number	Application cable
CCBVzT-36-4-25-150	25-150	30/32/34	4	Copper/Aluminum

Components and materials

The MV mechanical Electrical Connector CCBVzT-36-4-25-150 is manufactured by Jera Line, a direct factory location in China. It is part of their ongoing Research and Design RnD efforts to ensure high-quality, reliable performance in medium-voltage (MV) applications. Here are the main components of this MV mechanical connector:

Components	Materials
Body	Aluminum alloy, tin covered
Shear off torque bolts	Aluminum alloy
Compensating ring	UV resistant FR polymer

Dimensions

Test

Mechanical torque Connector CCBVzT-36-4-25-150 has successfully passed routine testing at Jera Line's factory laboratory, ensuring it meets high standards for performance and safety. If needed, Jera Line can provide a factory test report compliant with IEC 61238-3 standards.

The testing scopes are as following:

● Visual Inspection Test and Dimensional and Material Verification:

Confirms that the connector meets the specified dimensions and material requirements, ensuring overall quality and compliance.

● Mechanical Tension Test (IEC 61238-1-3):

Verifies the connector’s ability to endure mechanical stress, confirming that it maintains a secure connection under tension.

● Shear Head Function Test (IEC 61238-1-3):

Assesses the functionality of the shear head bolts, calibrated to break at a specific torque, guaranteeing a secure and uniform installation.
