Mechanical bolted terminal CCBVzT-36-6-185-400- JERA LINE

Medium voltage terminal connector, CCBVzT-36-6-185-400

MV mechanical terminal, 6 torque bolts, 185-400 mm2 Aluminum and copper cable application, 0.4-36KV usage

Features

Wide cable application: Suitable for electrical cables ranging from 185 to 400 mm²
High mechanical strength, Offers steady shear head torque for reliable performance
Quick installation, easily can be installed by a hex key
Made from tin-covered aluminum alloy, compatible with both aluminum and copper cables
Manufactured according to standard IEC-61238-1-3
Direct Factory from China

DESCRIPTION

TEST

REVIEW

Application

Mechanical bolted terminal CCBVzT-36-6-185-400, is a versatile and reliable solution for connecting electrical cables in power distribution and grounding systems with voltage levels ranging from 0.4 to 36 kV.

Application:

● Power Distribution Systems: Connects aluminum or copper cables in utility and industrial settings, ensuring reliable power transmission.

● Grounding Systems: Connects ground wires to grounding rods or other components, enhancing safety and protecting against electrical surges.

Technical specification

Product code	Cable size, mm2	Torque, N*m	Bolt number	Application cable
CCBVzT-36-6-185-400	185-400	46/48/50/52	6	Copper/Aluminum

Components and materials

MV Electrical wire Connector CCBVzT-36-6-185-400 is manufactured by Jera Line, a direct factory location in China. It is part of their ongoing Research and Design RnD efforts to ensure high-quality, reliable performance in medium-voltage (MV) applications. Here are the main components of this MV mechanical connector:

Components	Materials
Body	Aluminum alloy, tin covered
Shear off torque bolts	Aluminum alloy
Compensating ring	UV resistant FR polymer

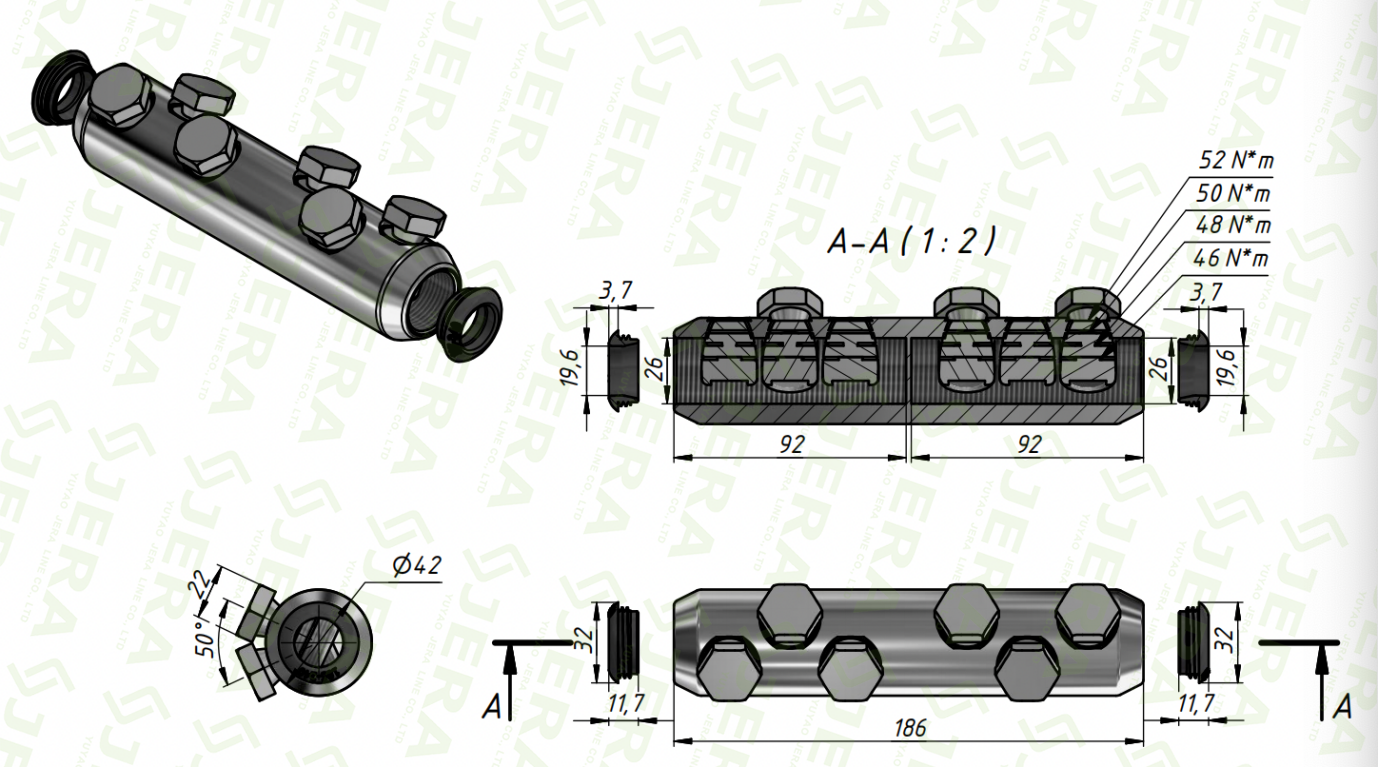

Dimensions

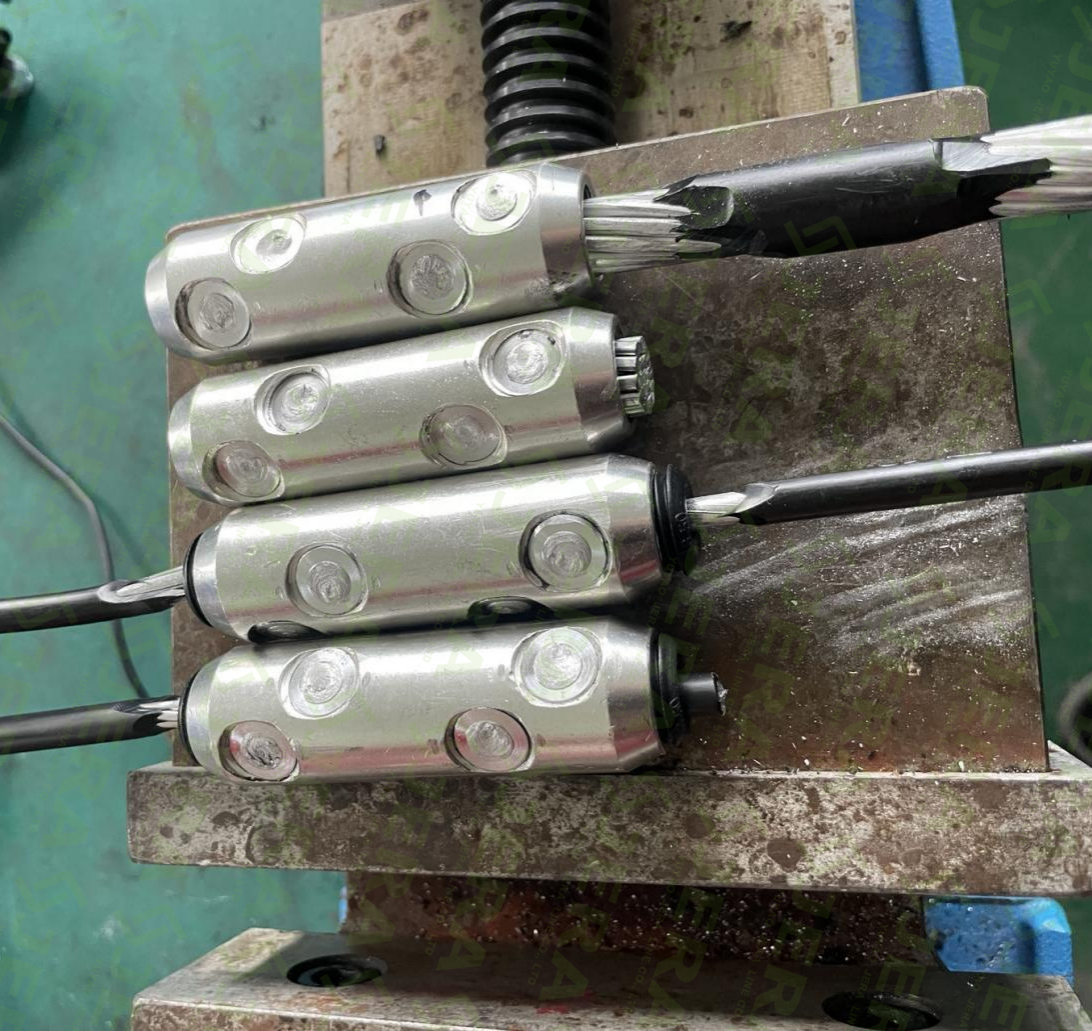

Test

Mechanical torque terminal CCBVzT-36-6-185-400 has successfully passed routine testing at Jera Line's in-house laboratory, ensuring it meets high standards for performance and safety. If needed, Jera Line can provide a factory test report compliant with IEC 61238-3 standards.

The testing scopes are as following:

● Visual Inspection Test and Dimensional and Material Verification:

Ensures the connector meets specified design dimensions and material requirements, verifying overall quality and conformance.

● Mechanical Tension Test (IEC 61238-1-3):

Confirms the connector's ability to withstand mechanical stresses, ensuring it maintains connectivity under tension.

● Shear Head Function Test (IEC 61238-1-3):

Verifies the reliability of the shear head bolts, which are designed to break at a specific torque, ensuring a secure and consistent installation.
