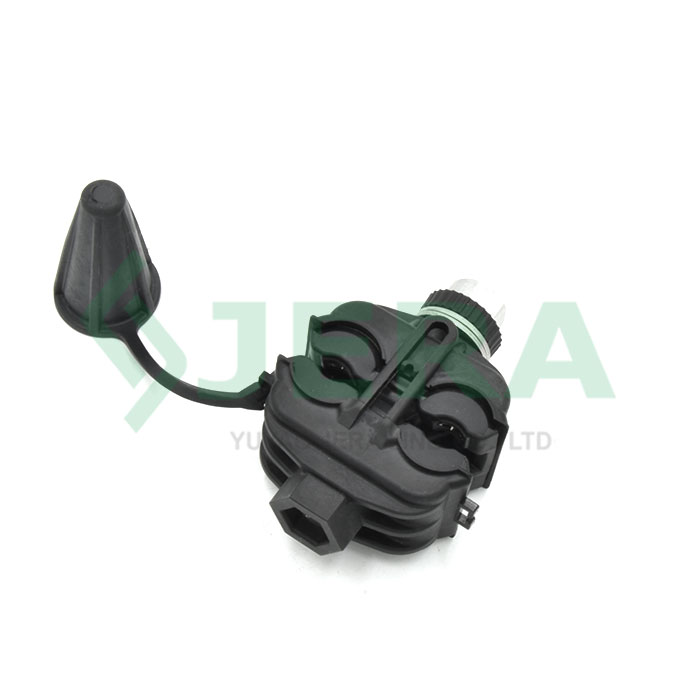

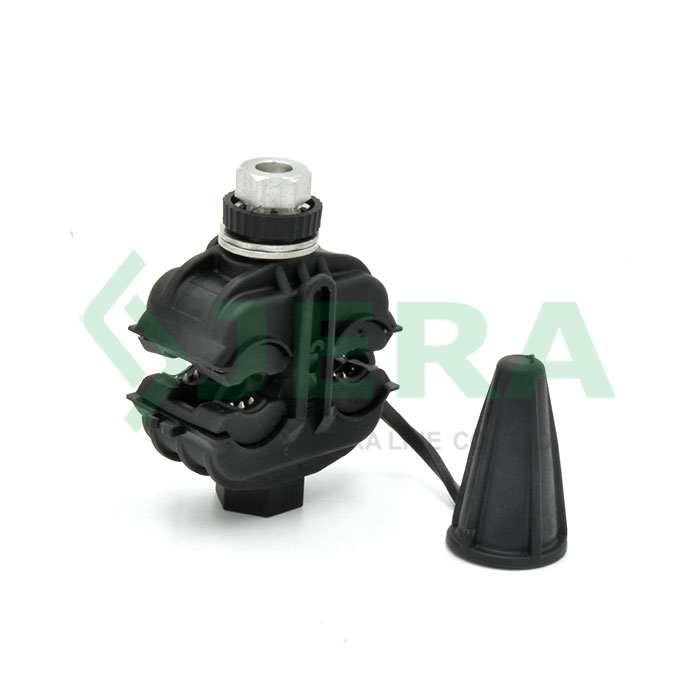

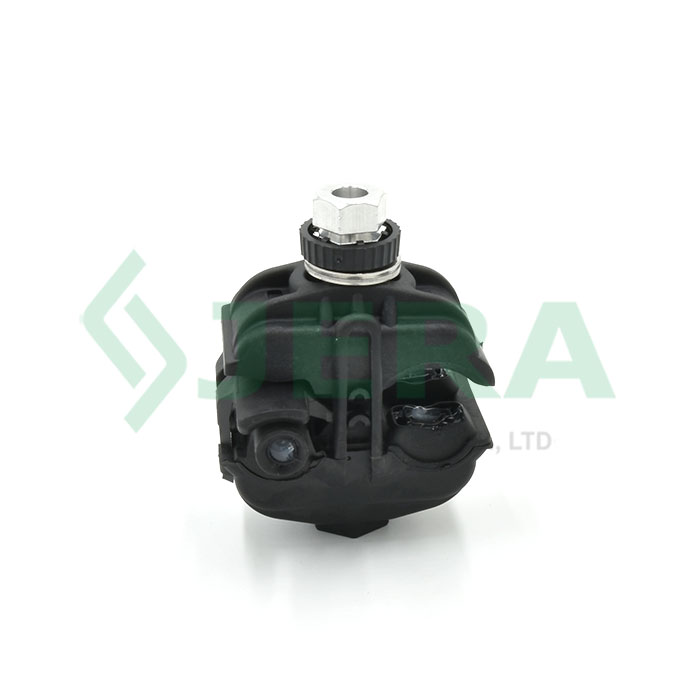

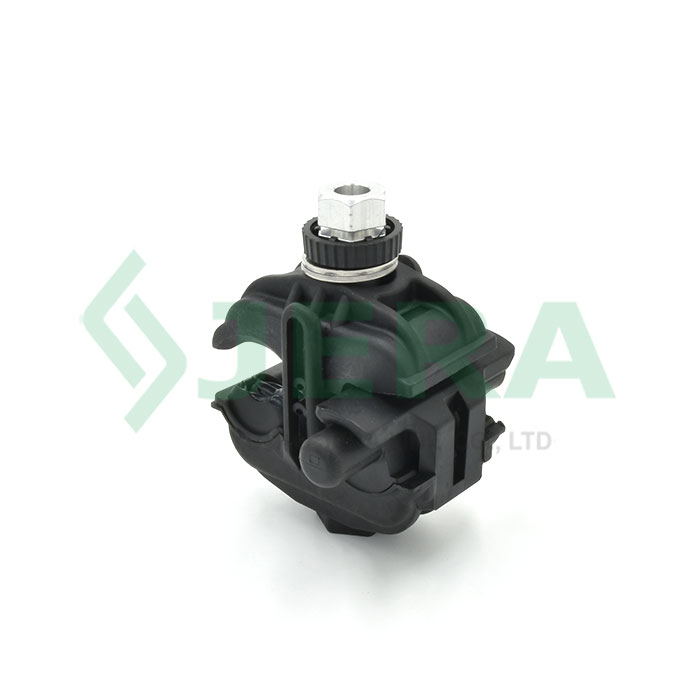

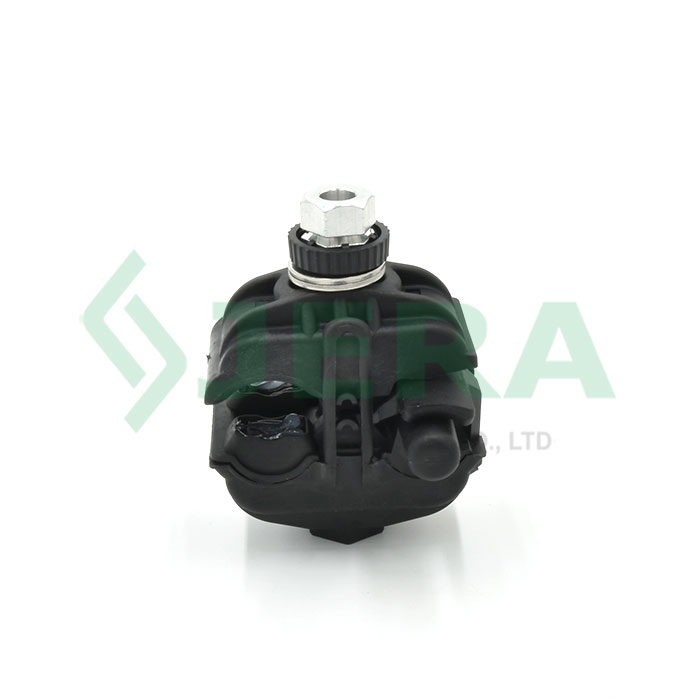

1.MV Insulation piercing connector ZOP-61

Medium voltage overhead lines piercing connector, 35-185/35-185 mm2 cross section cables, tin covered aluminum contact, 15KV

Features

Easy and fast installation, no need to peel the jacket
Durable materials, UV resistant Polymer body, fiber glass reinforced
Bigger and longer Aluminum contact teeth, Bimetal usage
Stainless steel bolt and washer, which prevents rust and corrosion
Factory laboratory routine test report available according to standard EN-50483 Direct factory in China

DESCRIPTION

TEST

REVIEW

Application

The MV cable insulation piercing connector ZOP-61 is designed for overhead Low and Medium voltage ABC conductors connecting and branching in electrical distribution and power transmission systems up to 15KV. It has wide cable size range，durable materials, easy for installation without stripping insulation.

Technical specification

Product code	Main line, mm2	Branch line, mm2	Torque, N*m
ZOP-61	35-185	35-185	16

Components and materials

Electrical Cable Piercing Tap Connector ZOP-61, is manufacturered and Research and Design RnD by Jera Line, a direct factory location in China,the IPC consissts of the following main part:

Components	Materials
Body and Seal	UV resistance two components insert molding of composite polymer and elastomer
Contact plate	Aluminum
Bolt	stainless steel
Nut with shear-head	Aluminum alloy
Washer	Stainless steel
End cap	UV resistance Polypropylene

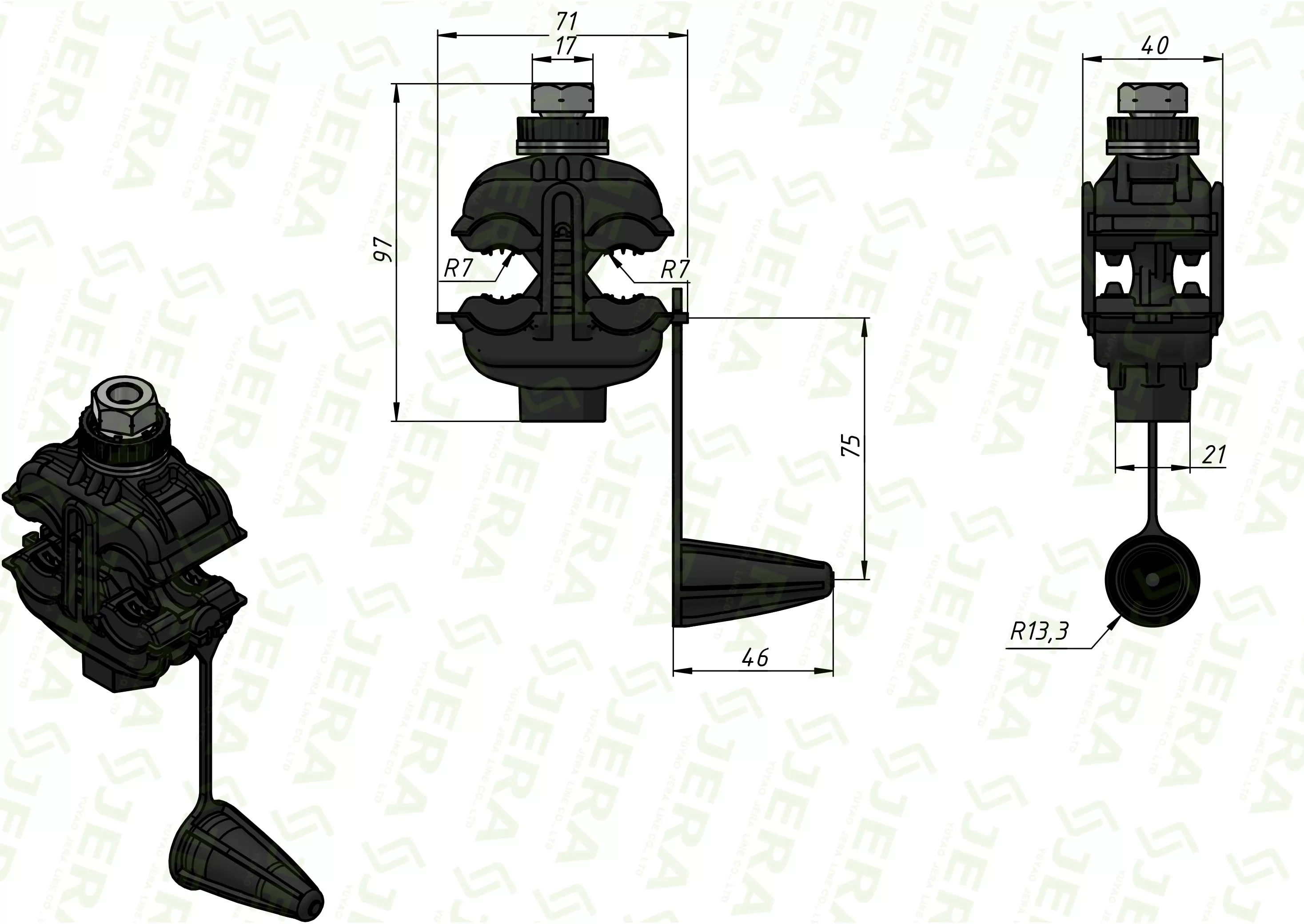

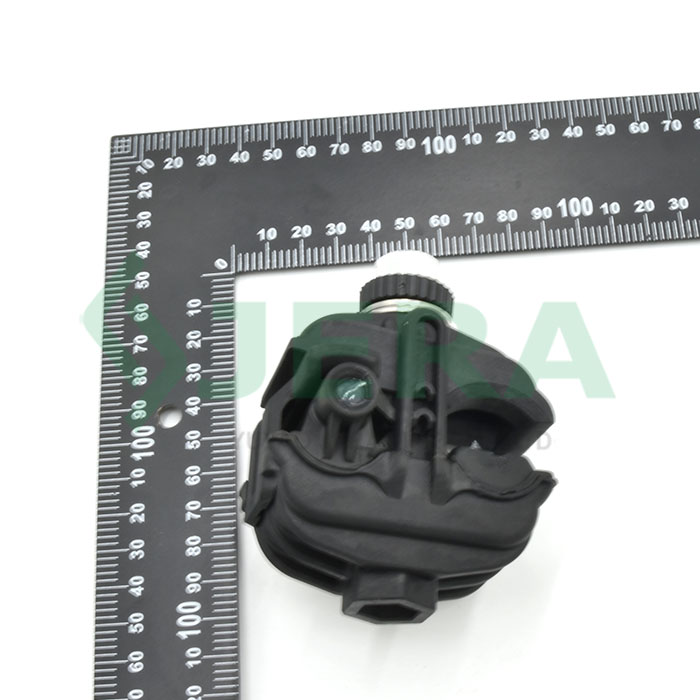

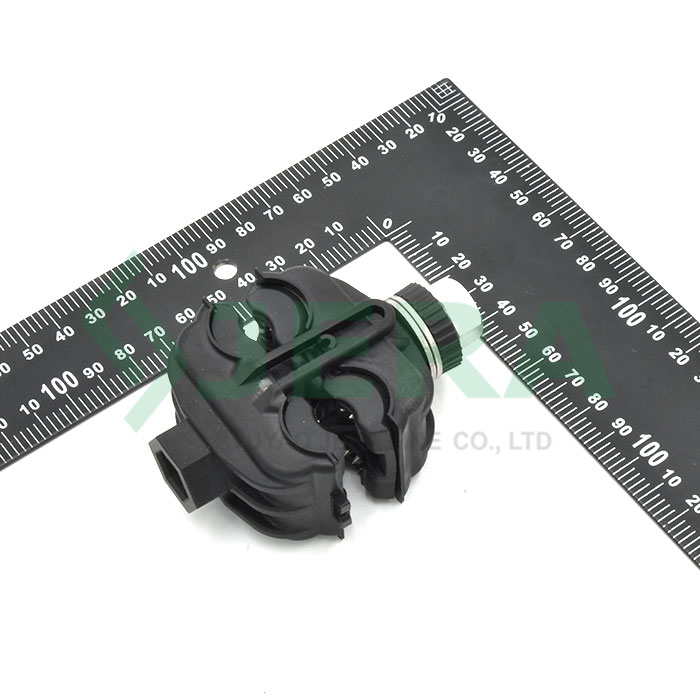

Dimensions

Test

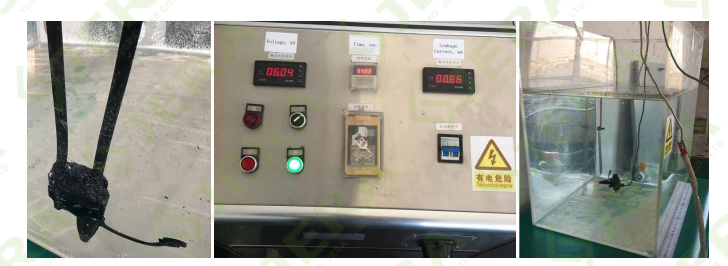

Insulation Piercing Connector for medium voltage cable ZOP-61 has regular routine test by Jera line factory laboratory according to EN-50483:4 standard, the test scopes are as following:

● Visual examination

● Dimensional and material verification

● Test for permanent marking

● Connector bolt tightening test

● Shear head function test

● Dielectrical voltage test in water

● Electrical ageing test
