Medium voltage piercing connector with grounding ring up to 15KV, 35-185/70-120 mm2 cross section cables, grounding protection and temporary electrical inspection
Features
Application of size of power cable 35-185mm2
Easy and fast installation, no need to peel the jacket
Suitable for both Aluminum and copper cable, Bimetal usage
Stainless steel bolt and washer, which prevents rust and corrosion

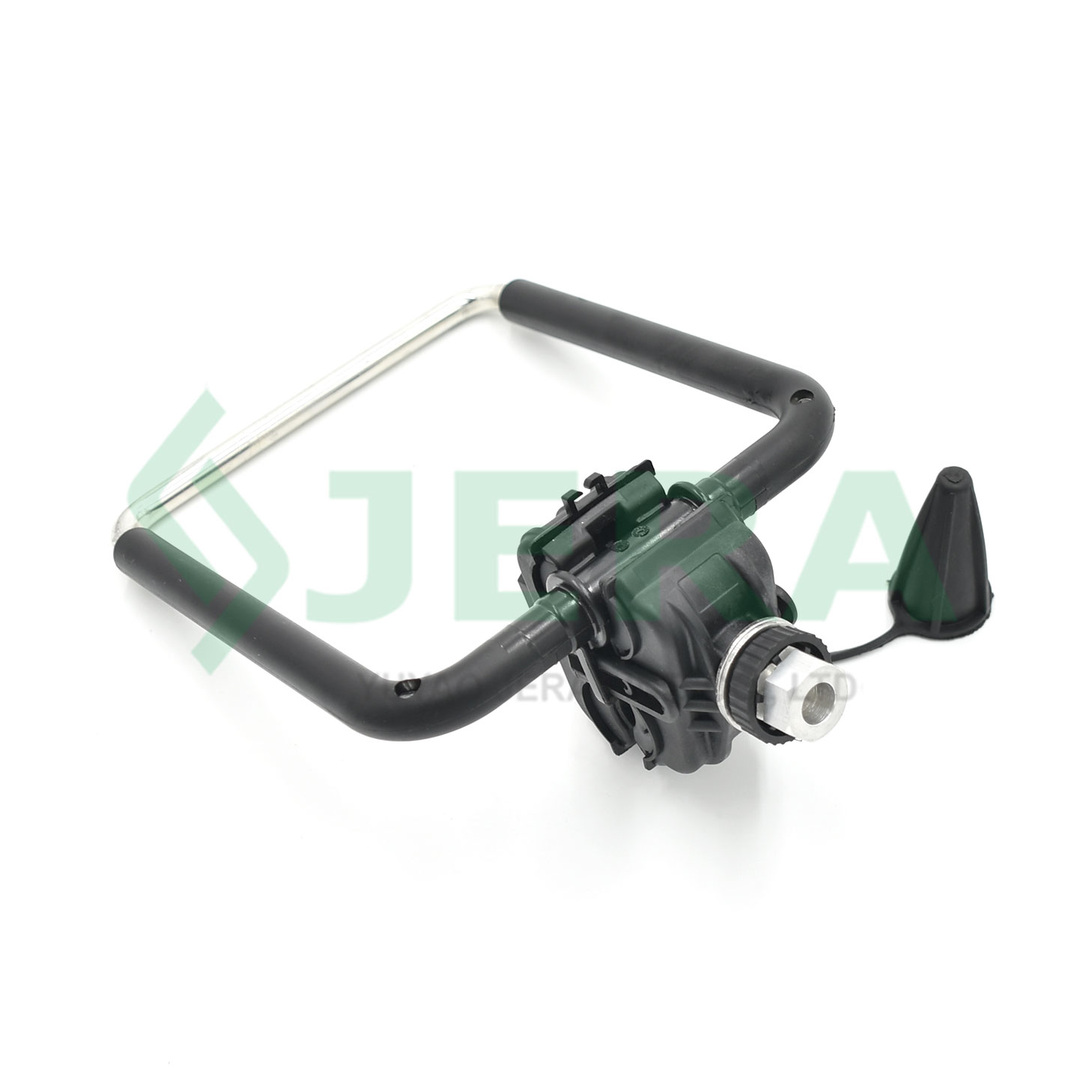

The MV grounding insulation piercing connector ZOP-61-G is designed for medium voltage up to 15KV power distribution systems. It’s specifically engineered for grounding and connecting service and lighting cable cores. This connector simplifies installation and enhances safety by allowing connections without stripping the cable insulation.
Applications
● Service Cable Connections: Used to connect service cables in MV networks, providing a safe and reliable method to branch off existing lines without interrupting insulation.
● Lighting Cable Connections: Ideal for connecting lighting systems, particularly in outdoor or utility lighting where secure grounding is essential.
● Grounding in MV Networks: Ensures effective grounding connections, improving overall safety and stability of the electrical system by offering a low-resistance path to ground.
Technical specification
Product code
Cable size, mm2
Torque, N*m
Application cables
Main
Tap
ZOP-61-G
35-185
70-120
18
CU/AL insulated
Components and materials:
The Electrical Cable Piercing Grounding Connector ZOP-61-G is manufactured and designed by Jera Line, with direct factory operations located in China. The IPC (Insulation Piercing Connector) consists of the following main components:
Components
Materials
Body and Seal
UV resistance polymer
Contact plate
Aluminum
Bolt
stainless steel
Nut with shear-head
Aluminum alloy
Washer
Stainless steel
End cap
UV resistance Polypropylene
Grounding bracket
99.7% Electrolytic Tough Pitch (ETP) copper
Grounding bracket cover
UV resistant polymer

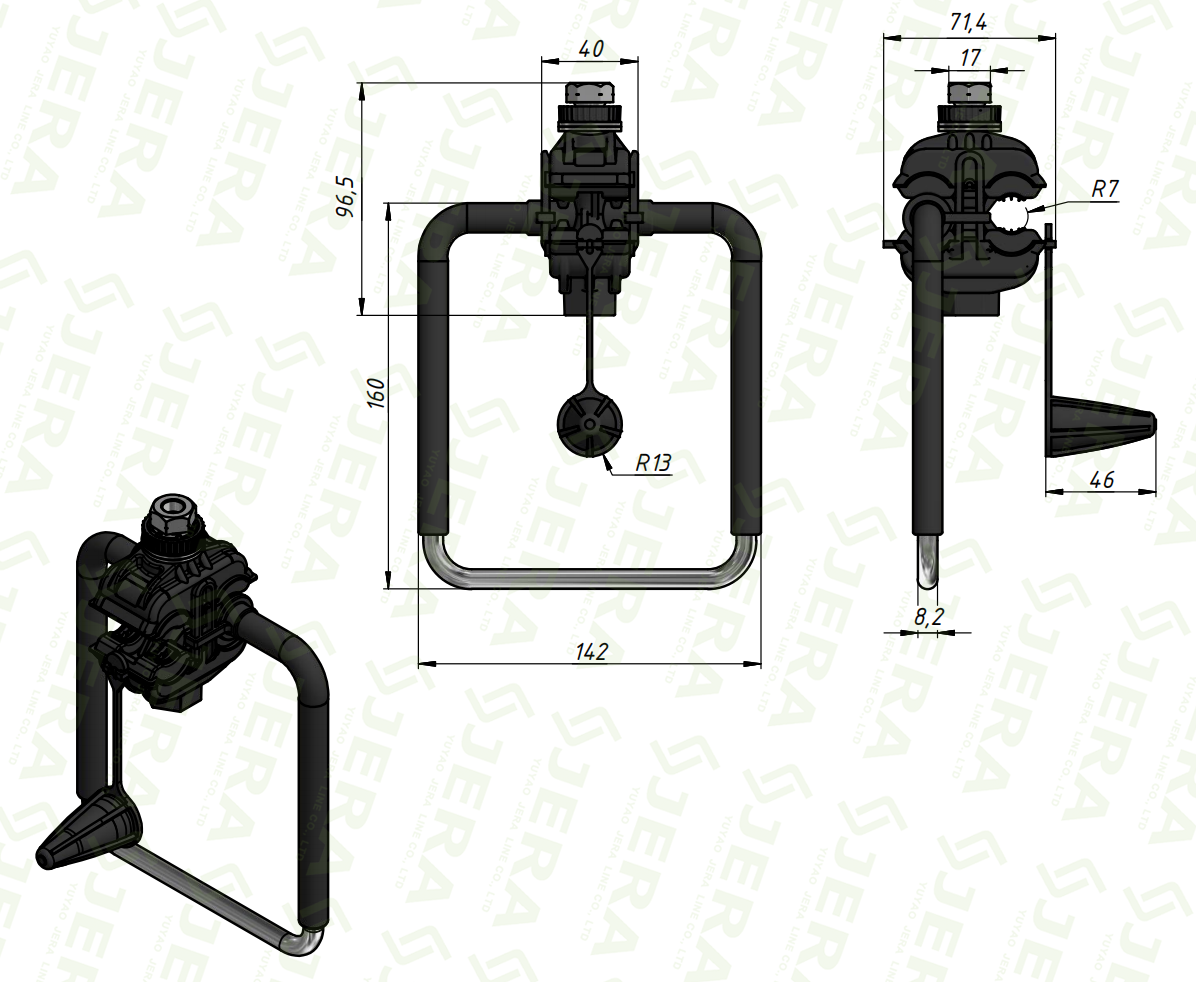

Dimensions:

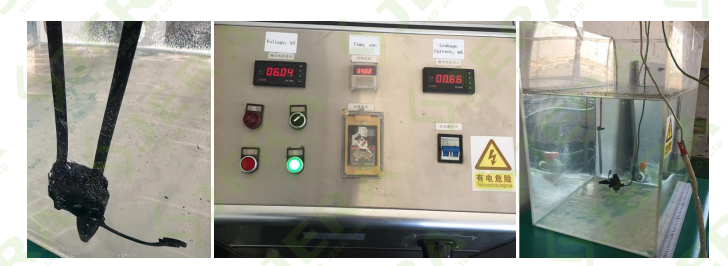

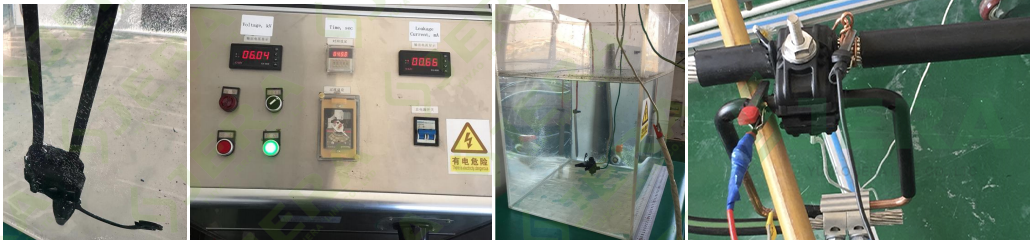

Test
The Insulation Grounding Piercing Connector (ZOP-61-G) for medium voltage cables undergoes rigorous routine testing by Jera Line's factory laboratory, ensuring compliance with the EN-50483:4 standard. The test scopes include:
● Visual Examination: Thorough inspection to identify any visible defects or inconsistencies.
● Dimensional and Material Verification: Ensures the connector meets the specified dimensions and material requirements.
● Test for Permanent Marking: Verifies the durability and legibility of the connector's markings.
● Connector Bolt Tightening Test: Assesses the integrity and reliability of the bolt connections.
● Shear Head Function Test: Evaluates the performance of the shear head under specified conditions.
● Dielectrical Voltage Test in Water: Tests the connector's insulation properties in water.
● Electrical Ageing Test: Simulates long-term electrical stress to ensure longevity and performance.
The ground IPC Connector tested as waterproof IPX68, Application temperature from -30 ℃ up to +70 ℃.
