MV Mechanical Shear Head Bolted Lug, CLBVzT-36-2-16-95

Mechanical Shear Bolted cable lug, 2 torque bolts, 0.4- 36KV voltage, 16-95 mm2 Aluminum and copper cable application, tin plated Aluminum Alloy material

Features

Simple and quick installation process with a hex key
Tin covered Aluminum Alloy body, Bi-metal usage for both aluminum and copper cables
High mechanical strength with steady shear head torque
Wide range application for electrical cable from 16 to 95mm2
Manufactured according to standard IEC-61238-1-3
Direct factory location in China

DESCRIPTION

TEST

REVIEW

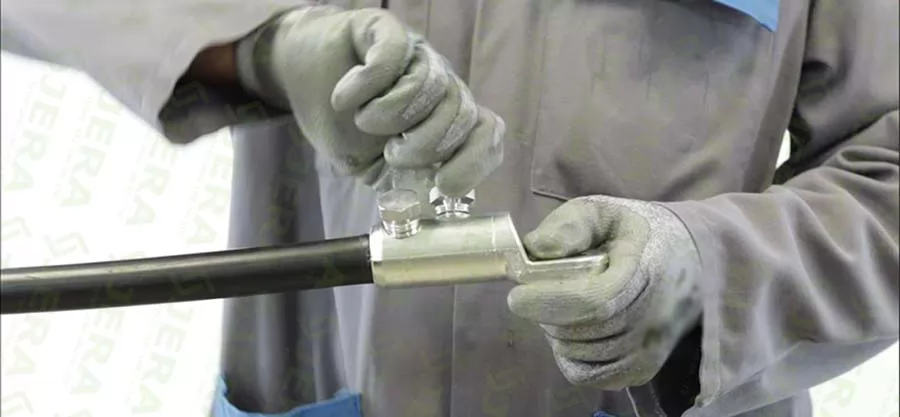

Application

Mechanical Bolted Lug Connector CLBVzT-36-2-16-95, is a versatile and reliable solution for connecting cables to distribution equipment in medium voltage (MV) systems. Designed for use with aluminum or copper cables ranging from 0.4 to 36kV, this connector ensures secure and efficient power distribution.

Key Applications:

● Transformer Connections: Reliably connects medium voltage cables to transformers, facilitating efficient power distribution.

● Switchgear Installations: Connects busbars or cables within switchgear assemblies, ensuring reliable electrical connections for circuit control and protection.

Technical specification

Product code	Cable size, mm2	Torque, N*m	Bolt number	Application cable
CLBVzT-36-2-16-95	16-95	18-22	2	Copper/Aluminum

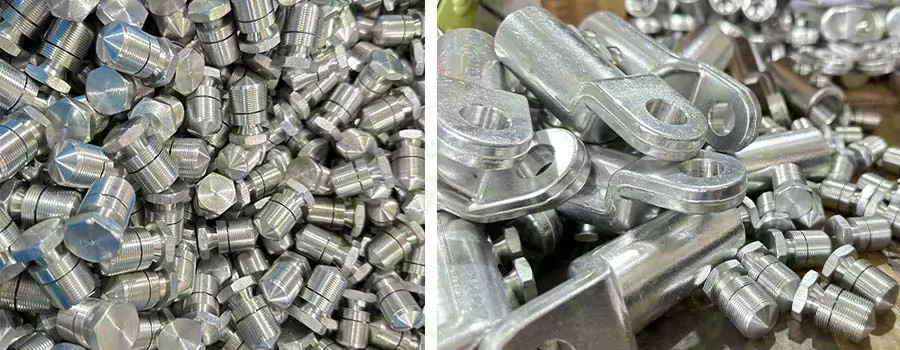

Components and Materials

Jera Line is a leading manufacturer of electrical connectors, including the Mechanical Shear Head Lug Connector CLBVzT-36-2-16-95, the MV mechanical lug consists of the following main part:

Components	Materials
Body	Aluminum alloy, tin covered
Shear off torque bolts	Aluminum alloy
Compensating ring	UV resistant FR polymer

Dimensions

Test

Jera Line is dedicated to providing high-quality electrical connectors that meet or exceed industry standards. The MV Bolted Electrical Lug CLBVzT-36-2-16-95 undergoes rigorous testing at Jera Line's own factory laboratory to ensure its performance and reliability.

Routine Testing Procedures:

● Visual Inspection and Dimensional Verification: A thorough visual inspection is conducted to assess the connector's physical appearance, dimensions, and material quality.

● Mechanical Tension Test: The connector is subjected to mechanical tension tests according to IEC 61238-1-3 to evaluate its strength and durability under load.

● Shear Head Function Test: The shear head mechanism is tested to verify its proper operation and ability to protect against excessive currents.

Factory Test Report:

Jera Line can provide a detailed factory test report for the CLBVzT-36-2-16-95 connector, which is prepared in accordance with the IEC-61238-3 standard. This report documents the test procedures, results, and any relevant data.
