Pre-Insulated Cable Lug CPTA 150

Pre-insulated wire Lug, 150 mm2 cable usage, tin covered Aluminum Alloy body for both aluminum and copper cable usage, waterproof outdoor application

Features

Easy and quick installation with crimping tools E215
Tin covered aluminum Alloy material, Bimetal usage, can be used with AL and CU cables
Pre-insulated crimp lug, the insulation prevents water leakage and moisture of ABC cable to indoor equipment
Detail marking with letter and rubber color, to distinguish the size quickly
Direct factory location in China

DESCRIPTION

TEST

REVIEW

Application

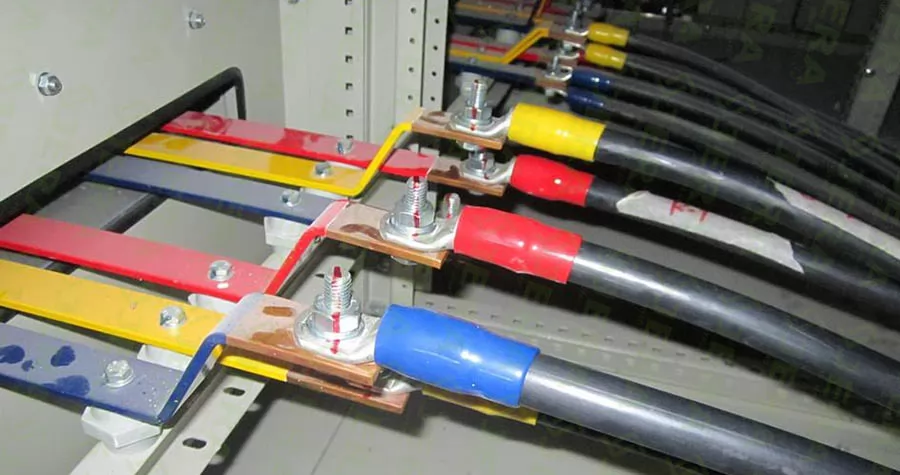

Pre-insulated Electrical Lug CPTA-150 is suitable for the connection between distribution network from the outdoor to the indoor busbar or connect other electrical equipment up to 1KV.

The insulation of Terminal crimping cable lug is good at outdoor application agaist water and moisture.

The application of the Pre-Insulated cable Lug CPTA-150 includes:

· Connecting power cables to electrical equipment such as switches, circuit breakers, or transformers.

· Joining wires together in electrical panels or distribution boxes.

· Other solution for electrical wiring

Technical specification

Product code	Cable size, mm2	Length L,mm	Crimping Tool	End cup color
CPTA-150	150	120	E215	Violet

Components and Materials

Electrical cable crimping lug is under Research and Design RnD by Jera Line, a direct factory location in China, it consists of the following main part:

Components	Materials
Body	Tin covered Aluminum Alloy
Insulation	UV resistance Polypropylene
End cap	UV resistance Polypropylene

Dimensions

Test

Electrical Crimp Wire Terminal CPTA-50 has undergone rigorous Mechanical properties & performance validation by Laboratory Testing Equipments.

Here is the example for Crimping test:

Test scope: Apply the CPTA-50 with the power cable of 50 mm2 size, inspect if there will be any breaking of plastic body after E173 crimping tool usage. Applied according to manufacturer instructions following to 1, 2, 3 crimping zones.
