Pre-insulated cable sleeve MJPT-35

low voltage pre-insulated joint connector , 35 mm2 Aluminum and copper cable usage, tin covered Aluminum Alloy body

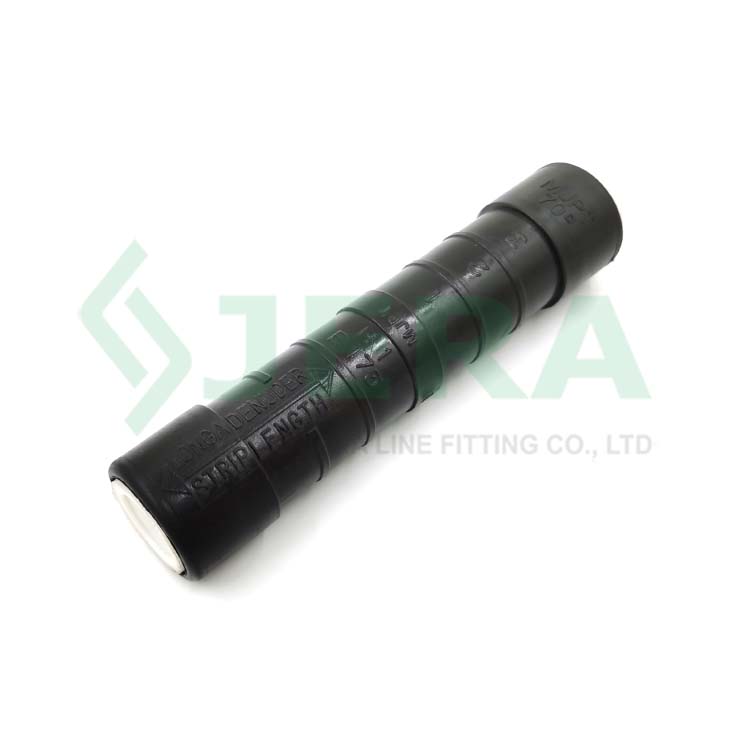

Pre-insulated cable sleeve MJPT-35
Features
  • MJPT is designed to connect insulated cable in aerial distribution network
  • Material: tin covered aluminum alloy and UV resistant plastic

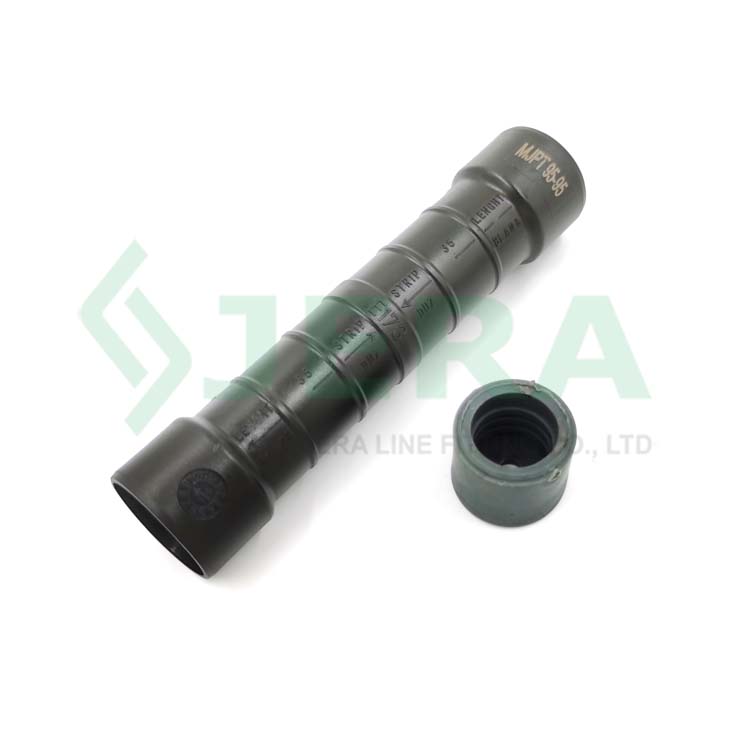

  • End cup on both side of connector, waterproof

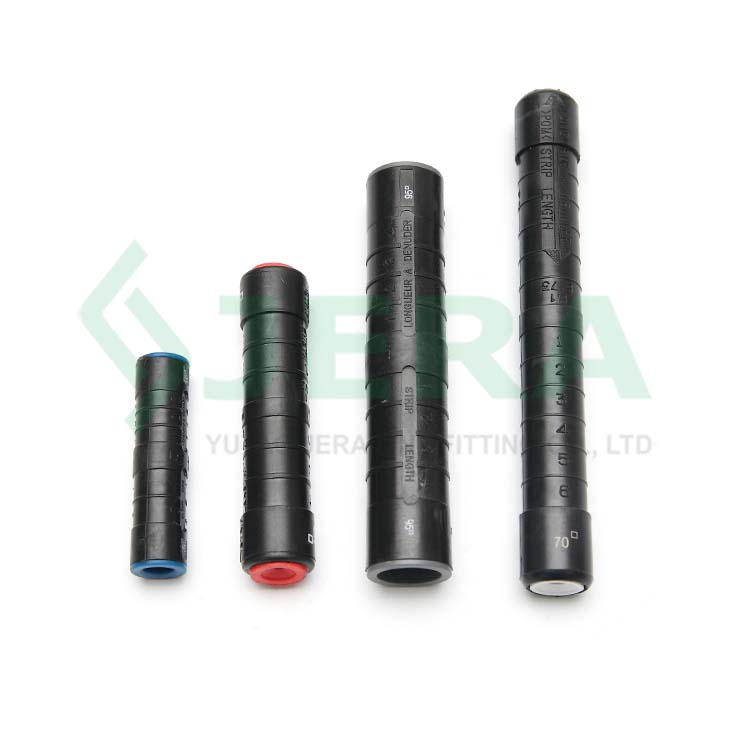

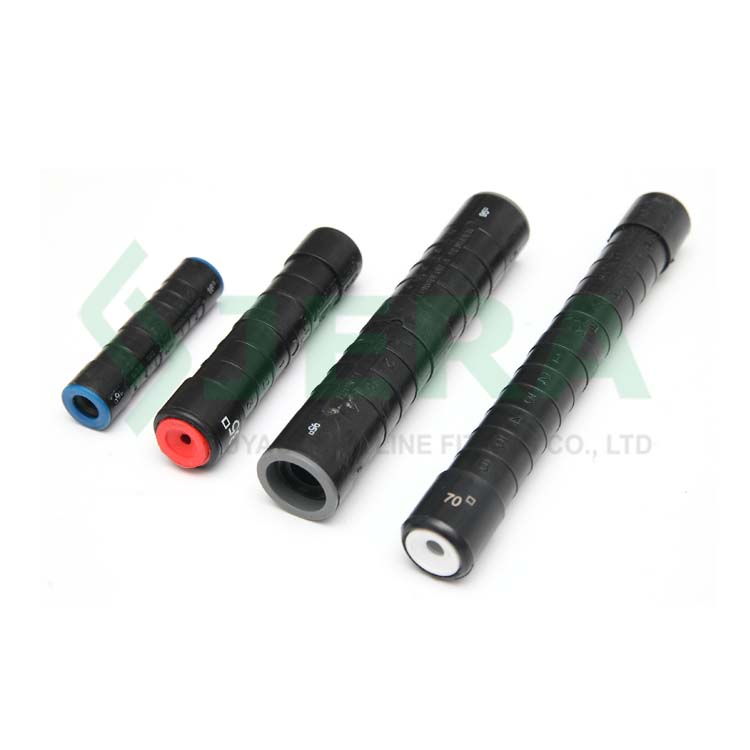

  • Sleeve marked size and colorful end cap, the size can be distinguished quickly
  • Competitive price, factory location in China
Contact Us
DESCRIPTION
TEST
REVIEW

Application

Pre-insulated cable sleeve MJPT-35 is is designed for connection of aluminum or copper cables intended for connection to distribution network and ABC cable up to 1KV.
It is used in electrical applications for insulating and protecting wire terminations, splices, or connections.
The insulation of pre-insulated crimp sleeve is good at outdoor application agaist water and moisture.

Technical specification

Product code Cable A size, mm2 Cable B size, mm2 Length L,mm Plastic Sleeve Diameter C,mm Ring color
MJPT-35 35 35 98.5 20 Red

Components and Materials

Electrical cable crimping lug is under Research and Design RnD by Jera Line, a direct factory location in China, it consists of the following main part:

Components Materials
Body Tin covered Aluminum
Insulation UV resistance Polypropylene
Ring UV resistance Polypropylene

Dimensions

PRE-INSULATED SLEEVE MJPT-35
ITEM A B L
MJPT-35-35 20.0(+-0.2) 7.0(+-0.2) 105

Test

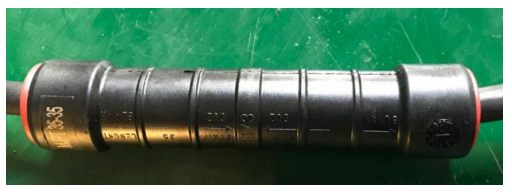

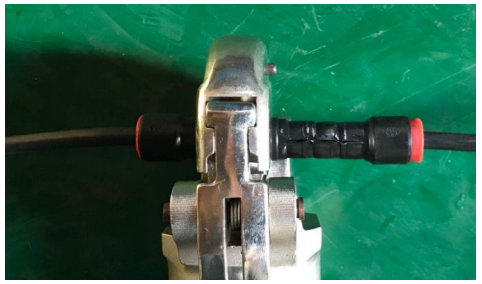

Pre-insulated electrical connector MJPT-35 has passed crimping test by Laboratory Testing Equipments

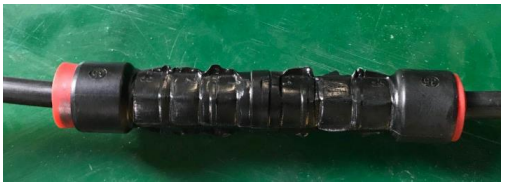

This test report presents briefly the test of crimping on the required cable. After test there is

stable electrical contact. At the end of test the samples showed no visible damages.
