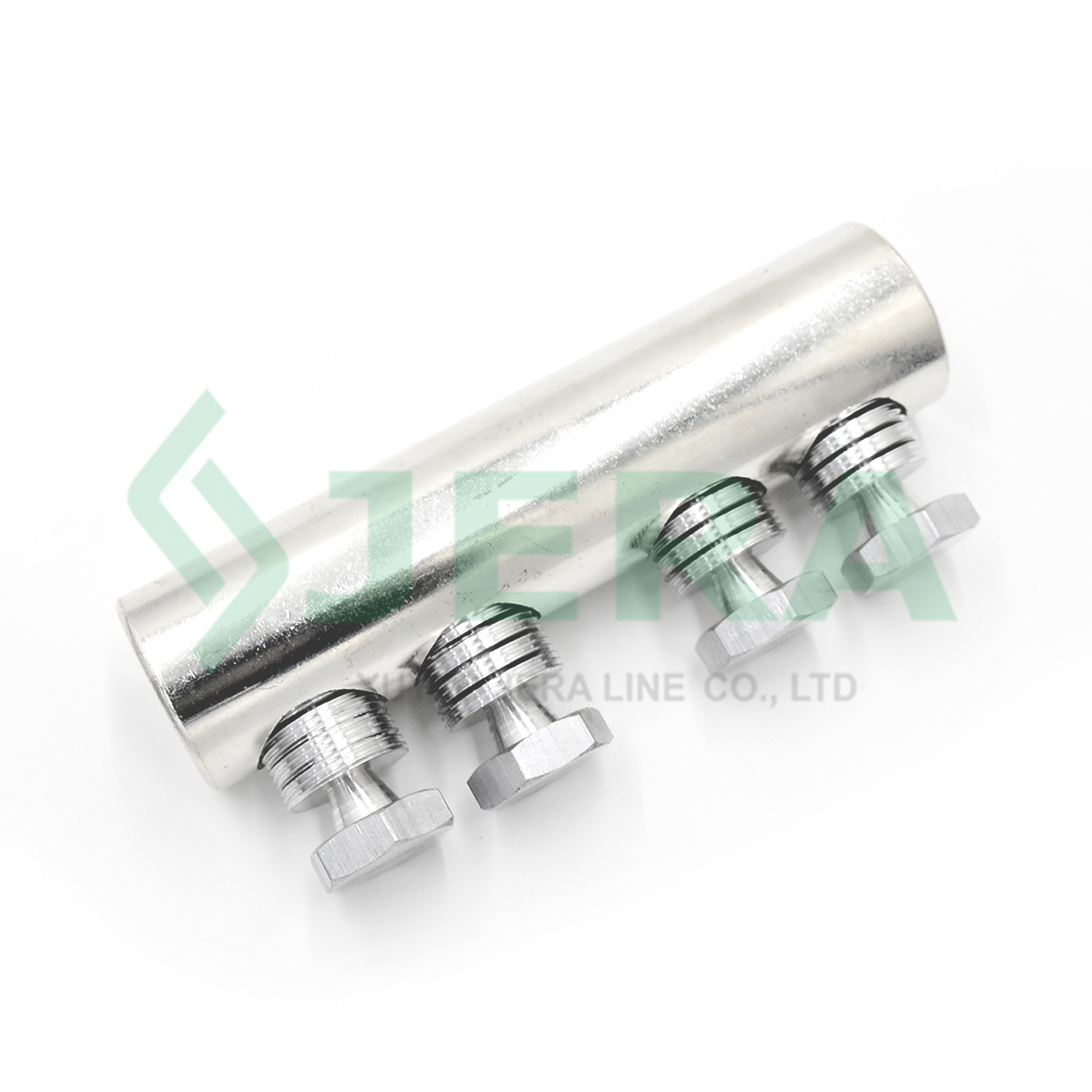

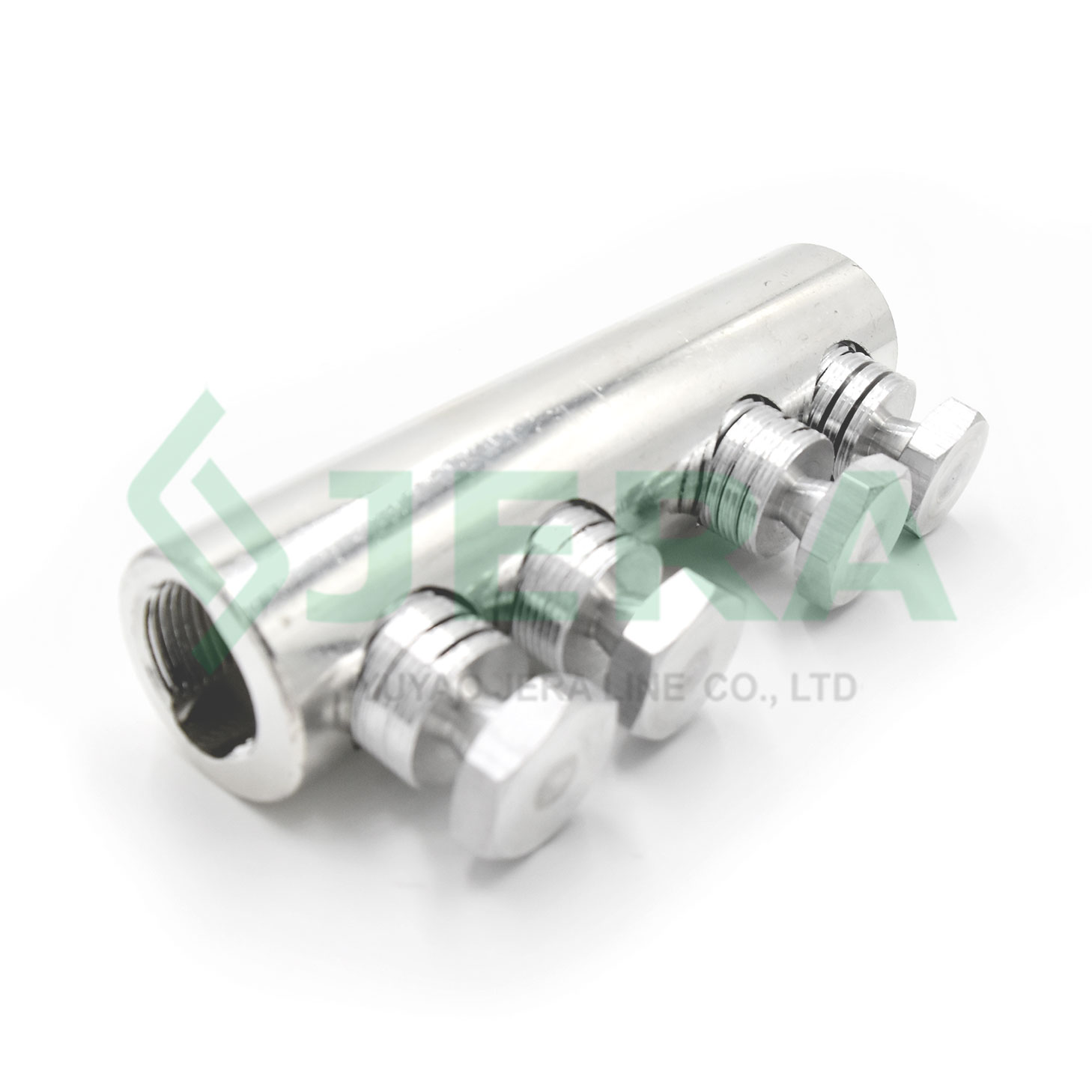

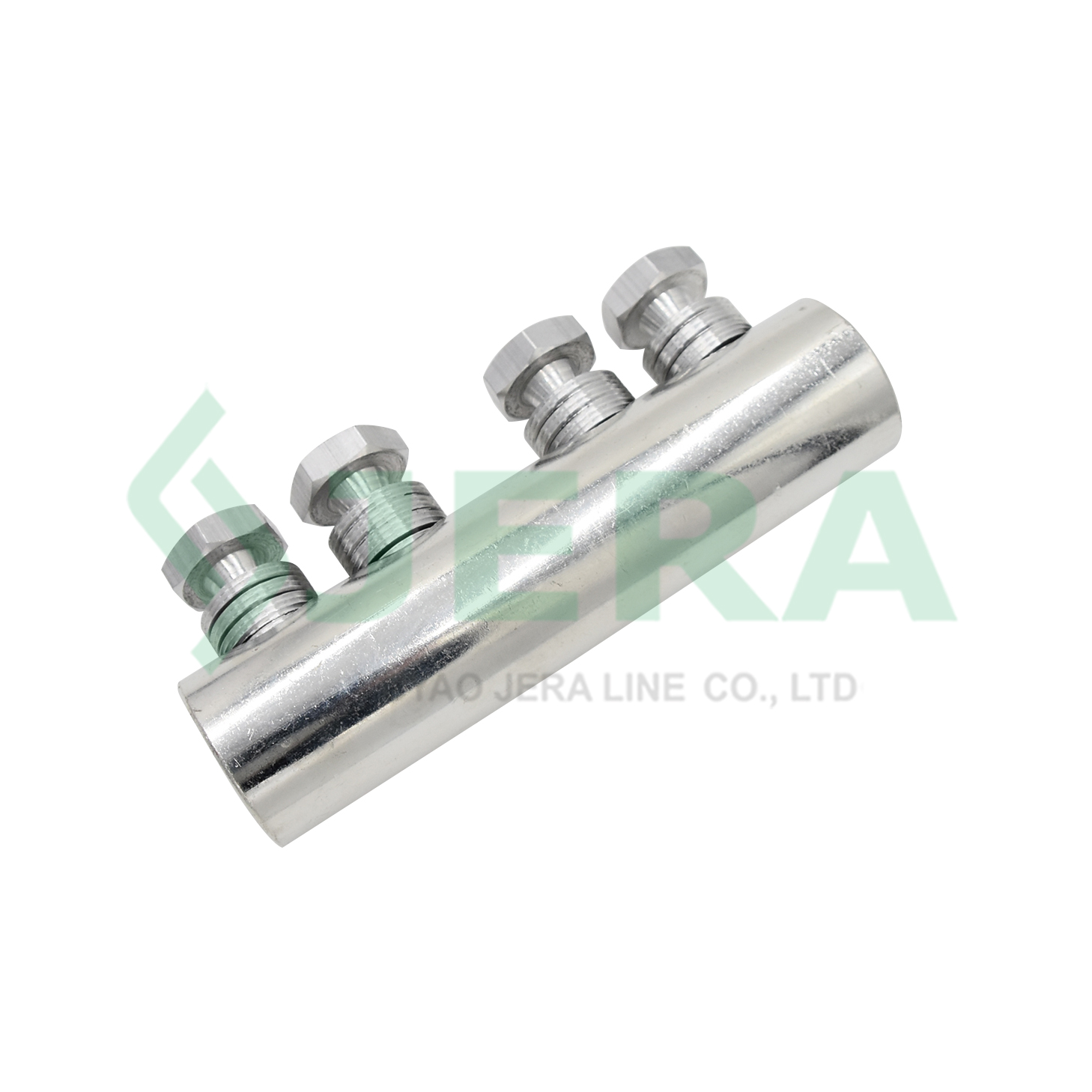

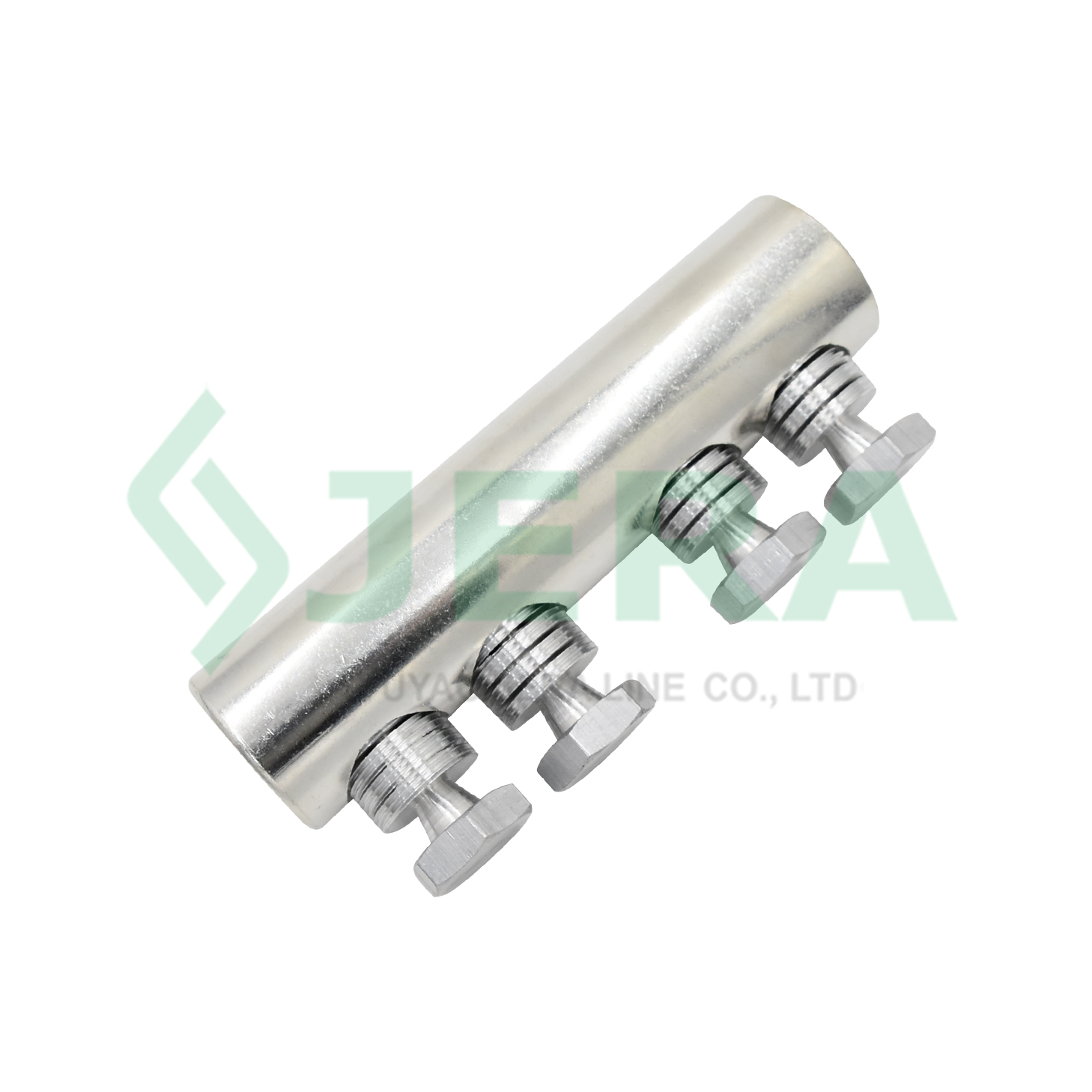

Shear Bolt Conductor Connector CCBIT-4-120-300, was developed to connected with 120-300mm2 aluminum or copper cables up to 1KV, it is very convenient and fast to install with hex key.
Here are its applications:
· Electrical Transmission and Distribution Lines: It can be used to secure electrical conductors to transmission or distribution line system
· Substation Equipment: It can connect cables or busbars to different substation equipment such as transformers, circuit breakers, or switchgear
· Grounding Systems: It can be employed to connect ground wires to grounding rods or other grounding components
Technical specification
Product code
Cable size, mm2
Size of Bolt, M/hex size
Bolt number
Application cable
CCBIT-4-120-300
120-300
24/24
4
Copper/Aluminum
Components and Materials
Shear Bolt Wire Connector CCBIT-4-120-300 is produced by a direct factorylocation in China -- Jera Line, and it is also under Research and Design RnD by Jera Line, the mechanical lug consists of the following main part:
