Shear Head Bolt Mechanical Lug, CLBVzT-36-2-70-240

Ease of Installation, only need to tighten the bolts and shear head off by hex key;Tin covered Aluminum Alloy material, suitable for both aluminum and copper cables;Wide range application for elec

Features

Ease of Installation, only need to tighten the bolts and shear head off by hex key
Tin covered Aluminum Alloy material, suitable for both aluminum and copper cables
Wide range application for electrical cable from 70 to 240mm2
Stuitable for Low and Medium voltage application up to 36KV
Manufactured according to standard IEC-61238-1-3
Factory location in China

DESCRIPTION

TEST

REVIEW

Application

Head Fastener Mechanical Lug CLBVzT-36-2-70-240, It can be used in LV&MV up to 36KV electrical distribution systems to connect cables distribution equipments such as transformers, switchgear, and distribution panels.

· Transformer Connections: It connects medium voltage cables to transformers, ensuring a secure and stable electrical connection for efficient power distribution.

· Switchgear Installations: The lug can be used in switchgear installations to connect busbars or cables within the switchgear assembly, maintaining reliable electrical connections for control and protection of electrical circuits.

Technical specification

Product code	Cable size, mm2	Torque, N*m	Bolt number	Application cable
CLBVzT-36-2-70-240	70-240	36/38/40	2	Copper/Aluminum

Components and Materials

Shear Head Bolt Mechanical cable Lug CLBVzT-36-2-70-240 is produced by a direct factory location in China -- Jera Line, and it is also under Research and Design RnD by Jera Line, the mechanical lug consists of the following main part:

Components	Materials
Body	Aluminum alloy, tin covered
Compensating size ring	UV resistant polymer

Dimensions

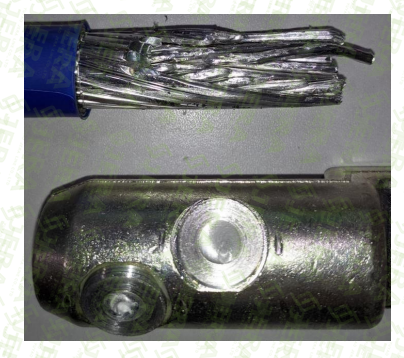

Test

Medium voltage Mechanical Shear Head Bolt terminal Lug CLBVzT-36-2-70-240 has passed routine test by Jera Line own factory laboratory, and provide factory test report if required.

We do the following test:

· Visual inspection test and dimensional and material verification test

· Mechanical tension test according to standard IEC 61238-1-3

· Shear head functions test according to standard IEC 61238-1-3
