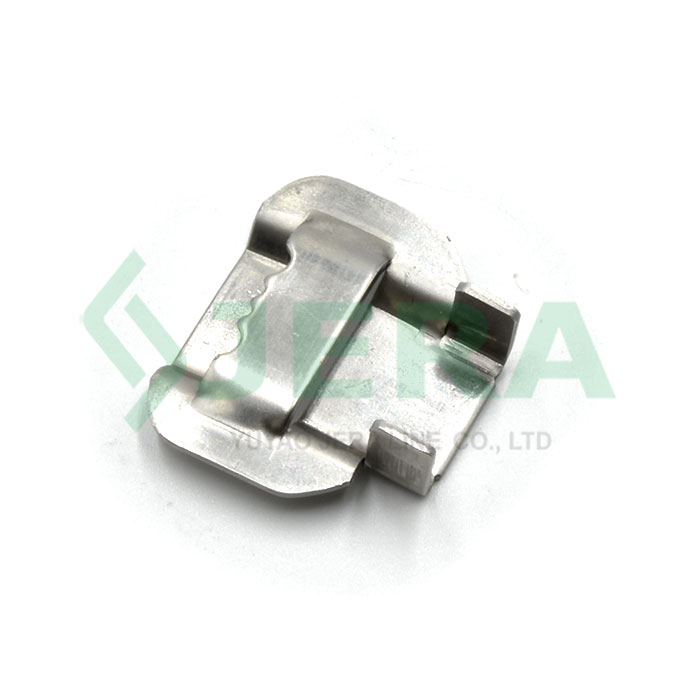

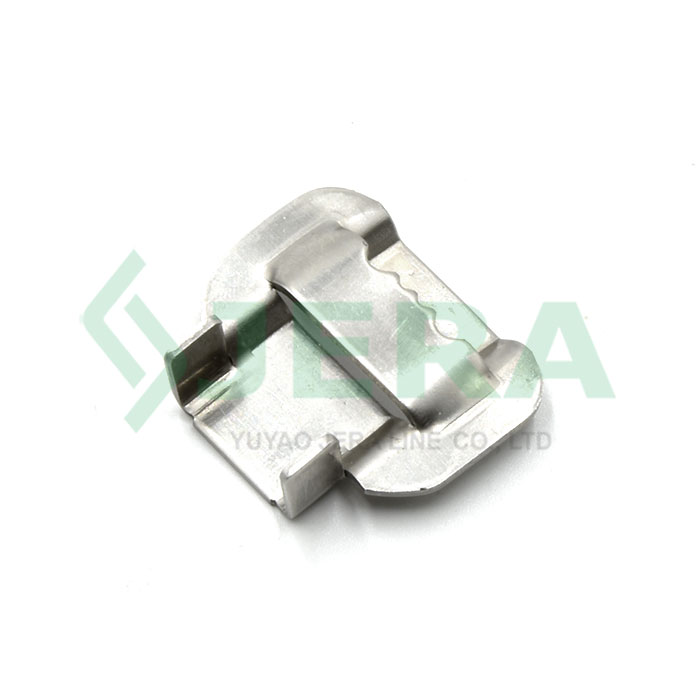

Stainless Steel Banding Buckle 1/2" ,KL-13-T

Perforated stainless steel band buckle KL-12.7-CHKO-C304 other called screw locking buckle

Features

Light weight
High mechanical strength
Different stainless steel grades options
Excellent environmental stability
Corrosion & Weather Resistant
Direct factory

DESCRIPTION

TEST

REVIEW

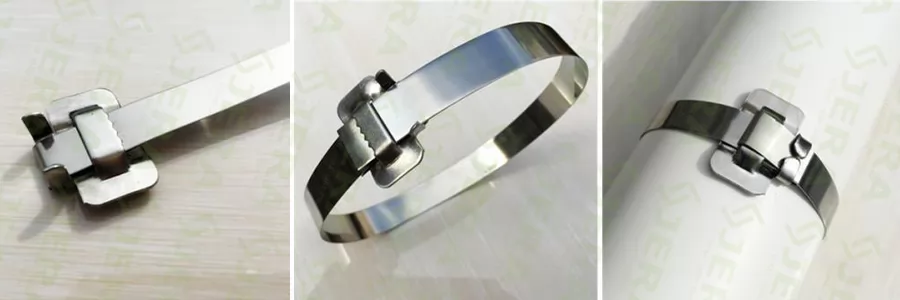

Application

Manufactured from high-grade stainless steel, this buckle offers excellent resistance to corrosion and wear, ensuring long-lasting performance even in harsh environments. Stainless Steel Banding Buckle Used in securing support structures for pipelines, especially in areas with high mechanical stress or exposure to corrosive environments.Its robust construction and secure locking mechanism make it ideal for use in outdoor equipment, industrial applications, and heavy-duty straps.

Technical specification

Product code	Max band width	Grades
KL-13-T-C201	1/2“ (12.7mm)	201

Components and materials

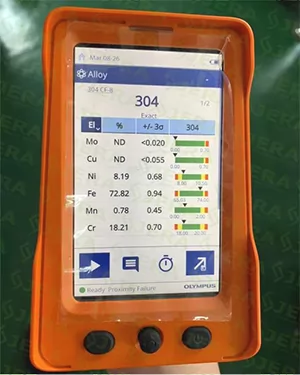

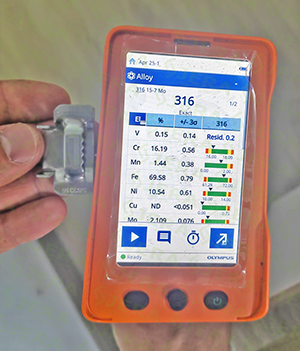

Test scope: Scan the steel wire with testing equipment: XRF VATANA, and check the data result.

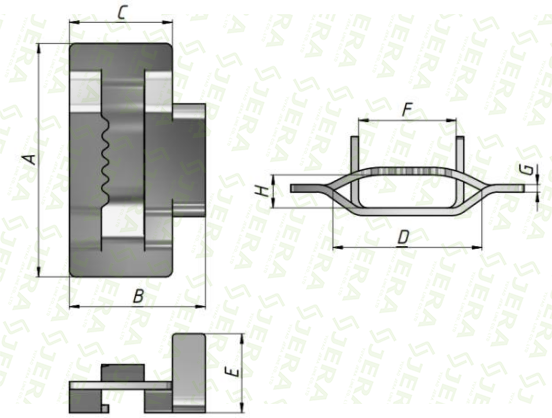

Dimensions

Test

Tensile strength test according to IEC 61284-1997

Machine: Testing machine ZD-4

Test scope: Buckle intalled with stainless steel band on steel pole and apply tension load on band. The test imitate the real usage of clamp during outdoor application. After the required tensile load was reached buckle should not break or deformation.

Product name	Required tension force, KN	Band broken, KN	Conclusion
Stainless Steel Buckle KL-13-T-C201	7.0	7.43	Passed

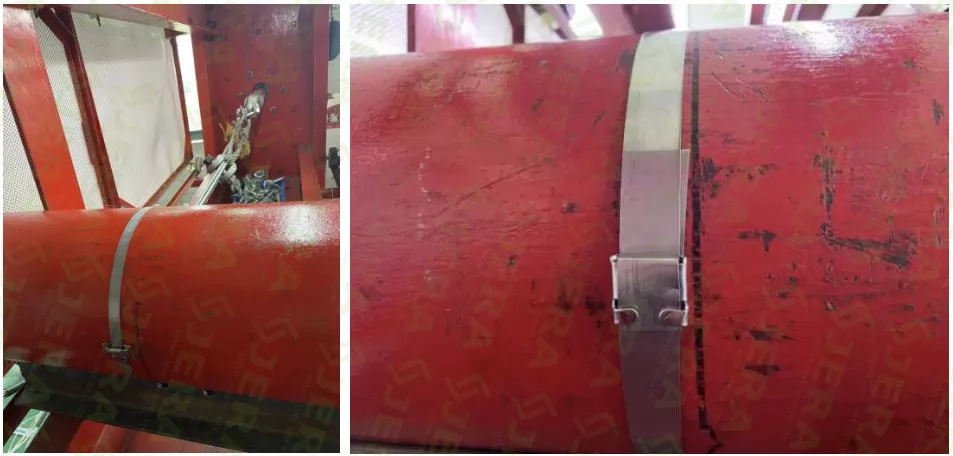

Sample before test:

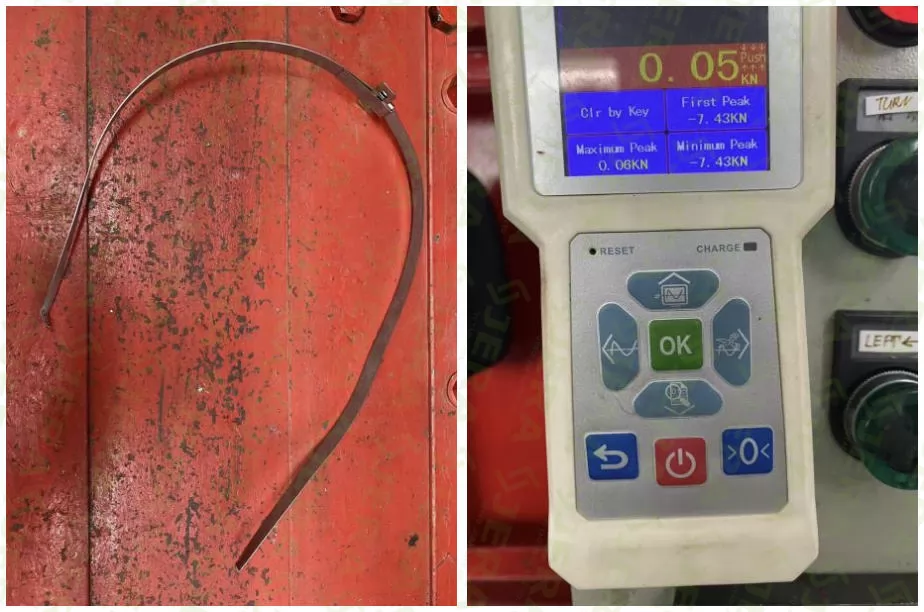

Test result:

Conclusion:

When the tensile load was reached 7.0KN, buckle did not show any deformation or damage. After the tensile load was reached 7.43KN, the band broken but the buckle still showed no deformation.

This buckle passed the tensile strength test, we certificate its quality after inspection and approve for further usage.
