SUS 304 Stainless Steel Band 19x0.7 combines durability and corrosion resistance. the BANDING STRAP 19
mm width and 0.7 mm thickness make it ideal for robust fastening and bundling in diverse industrial
applications.
Application
Securing cables and wires in power and communication networks.Use
Stainless steel bandings in cable management systems for organizing and securing large
bundles of cables.
Technical specification
Material grade, SUS
Width
Thickness
Length for roll, m
Colour of dispenser
304
3/4“ (19mm)
0.03" (0.7mm)
30, or 50
Red, Blue
Components and materials
Test scope: Scan the steel band.

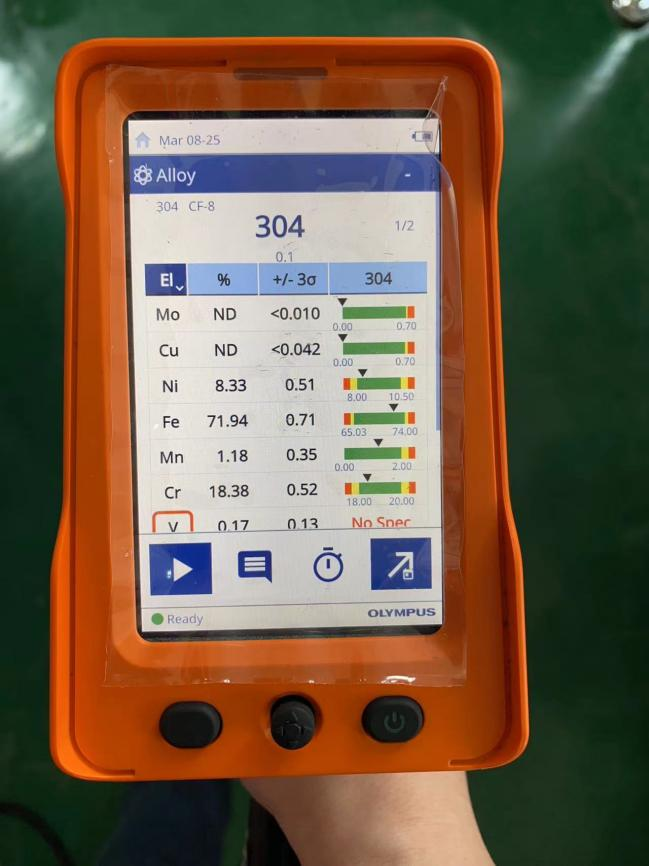

Testing equipment: Metal Spectrometer XRF
VATANA.
Dimensions
Test
Tensile strength and elongation test according to
IEC 61284-1997

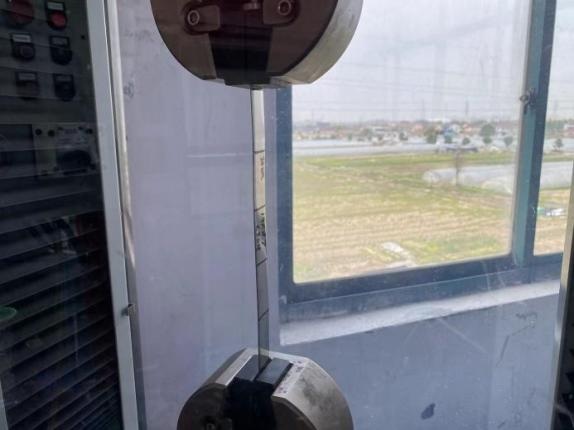

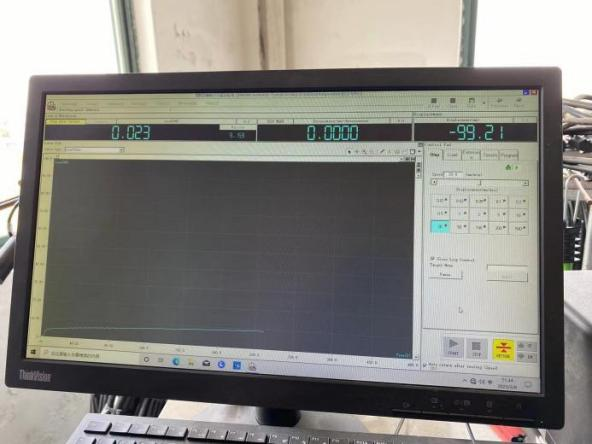

Machine: Testing machine ZD-5
Test scope: Cut a proper length
stainless
steel band, clamp each side on tensile strength test equipment, apply tension
load gradually until band break to see the actual breaking load.

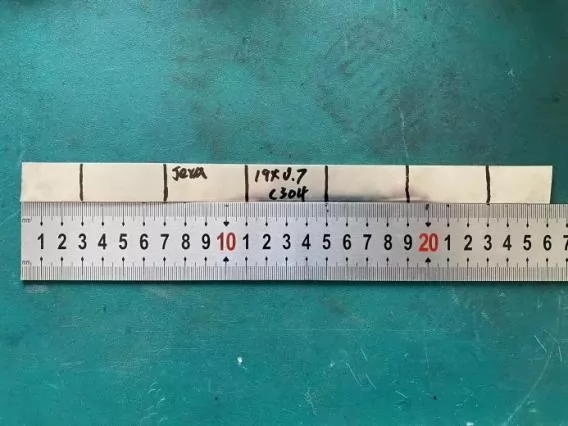

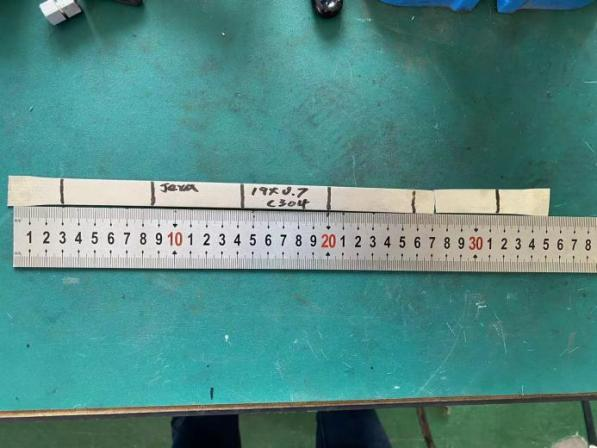

Sample before test:
Test result:
Tensile strength test
Required tension force, KN
Actual data, KN
Conclusion
>8.0
9.15
Passed
Elongation test
Required Elongation
Actual data
Conclusion
>=40%
49.5%
Passed
